Pocket Door Hardware

Pocket Door Hardware Sets

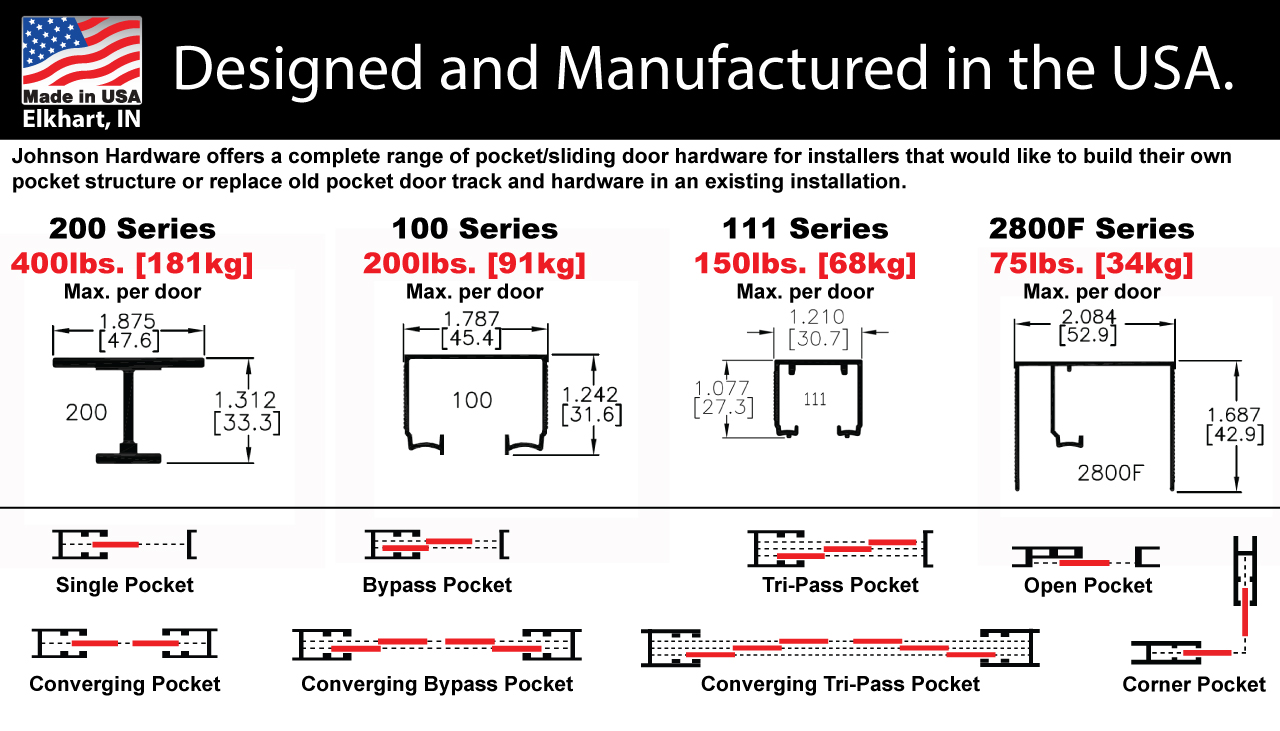

Johnson Hardware® offers a complete range of pocket / sliding door hardware designed for installers that would like to build their own pocket structure or replace old pocket door track and hardware in an existing pocket door installation. Below are just a few example configurations possible using Johnson Hardware sets.

Single Pocket Door
Converging Pocket Doors
Open Pocket Door
Bypass Pocket Doors
Corner Pocket Doors
Tri-Pass Pocket Doors

200PD Pocket Door Hardware

  • 400lbs [181kg] Max. Weight Per Door

  • 1-1/8" [29mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Pocket Door Hardware

  • From $91.03

    200BP Bypass Pocket Door Hardware

  • 400lbs [181kg] Max. Weight Per Door

  • 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • 189-1/2" (15' - 3/4") [4813mm] Max. Opening Width*

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • *4-Door Configuration

    From $213.05

    200MP Tri-Pass Pocket Door Hardware

  • 400lbs [181kg] Max. Weight Per Door

  • 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 11-1/4" [286mm] Min. Wall Structure Thickness

  • 283" (25' - 1/2") [7188mm] Max. Opening Width*

  • Commercial Grade Top Hung Tri-pass Pocket Door Hardware

  • *6-Door Configuration

    From $358.10

    100PDSC Soft-Close Pocket Door Hardware

  • 200lbs [91kg] Max. Weight Per Door

  • 1" [25mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Soft-Open/Close Door Operation

  • Commercial Grade Top Hung Pocket Door Hardware

  • From $108.54

    100PD Pocket Door Hardware

  • 200lbs [91kg] Max. Weight Per Door*

  • 1" [25mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Soft-Close Compatible W/ Optional Soft-Close Kits
  • Commercial Grade Top Hung Pocket Door Hardware

  • *With Optional Ball Bearing Hangers

    From $29.08

    100BP Bypass Pocket Door Hardware

  • 200lbs [91kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • 189-1/2" (15' - 3/4") [4813mm] Max. Opening Width*

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • *4-Door Configuration

    From $117.62

    100MP Tri-Pass Pocket Door Hardware

  • 200lbs [91kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 11-1/4" [286mm] Min. Wall Structure Thickness

  • 283" (25' - 1/2") [7188mm] Max. Opening Width*

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Tri-pass Pocket Door Hardware

  • *6-Door Configuration

    From $199.05

    111PD Pocket Door Hardware

  • 150lbs [68kg] Max. Weight Per Door*

  • 3/4" [19mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Pocket Door Hardware

  • *With Optional Ball Bearing Hangers

    From $19.15

    111BP Bypass Pocket Door Hardware

  • 150lbs [68kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 7-1/4" [184mm] Min. Wall Structure Thickness

  • 189-1/2" (15' - 3/4") [4813mm] Max. Opening Width*

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • *4-Door Configuration

    From $76.88

    111MP Tri-Pass Pocket Door Hardware

  • 150lbs [68kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • 283" (25' - 1/2") [7188mm] Max. Opening Width*

  • Commercial Grade Top Hung Tri-pass Pocket Door Hardware

  • *6-Door Configuration

    From $129.35

    2800 Single Rail Pocket/Sliding Door Hardware

  • 75lbs [34kg] Max. Weight Per Door*

  • 1-1/8" [29mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Residential Grade Top Hung Pocket Door Hardware

  • *With Optional Ball Bearing Hangers

    From $15.84

    2800F Open Pocket Door Hardware

  • 75lbs [34kg] Max. Weight Per Door*

  • 1-3/8" [35mm], 1-3/4" [44mm] Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Residential Grade Top Hung Open Pocket Door Hardware

  • From $44.13
