200BP Bypass Pocket Door Hardware

  • 400lbs [181kg] Max. Weight Per Door

  • 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • *189-1/2" (15' - 3/4") [4813mm] Max. Opening Width

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • * 4-Door Configuration

    200BP Installation Instructions

The 200BP is one of the finest commercial grade sliding bypass pocket door hardware systems available, ideal for residential or commercial applications where quality, trouble-free operation and long life is a necessity. The 200BP features heavy gauge precision extruded aluminum track rails that are manufactured to the most precise specification and guaranteed jump proof door hangers include smooth rolling nylon encapsulated ball bearing hanger wheels for quiet operation. Trackless door guides eliminate the need for bottom guide tracks for an unabstructed opening.

200BP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door widths.


How to order 200BP Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

The 200BP is one of the finest commercial grade sliding bypass pocket door hardware systems available, ideal for residential or commercial applications where quality, trouble-free operation and long life is a necessity. The 200BP features heavy gauge precision extruded aluminum track rails that are manufactured to the most precise specification and guaranteed jump proof door hangers include smooth rolling nylon encapsulated ball bearing hanger wheels for quiet operation. Trackless door guides eliminate the need for bottom guide tracks for an unabstructed opening.

200BP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door widths.


How to order 200BP Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

200BP Series Installation Instructions

200BP Series Quick Reference Drawings

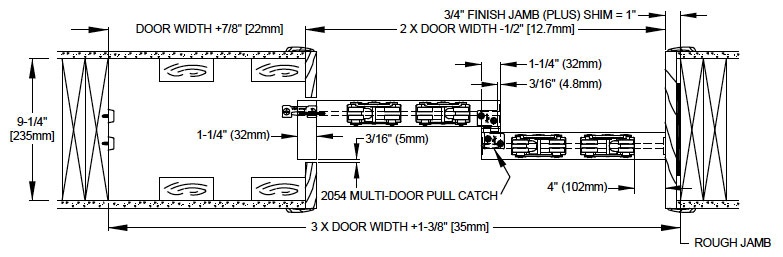

2-Door Opening Width Dimensions

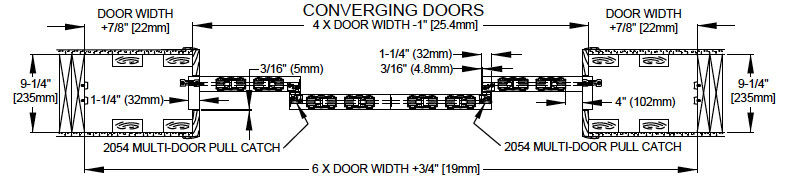

4-Door Opening Width Dimensions

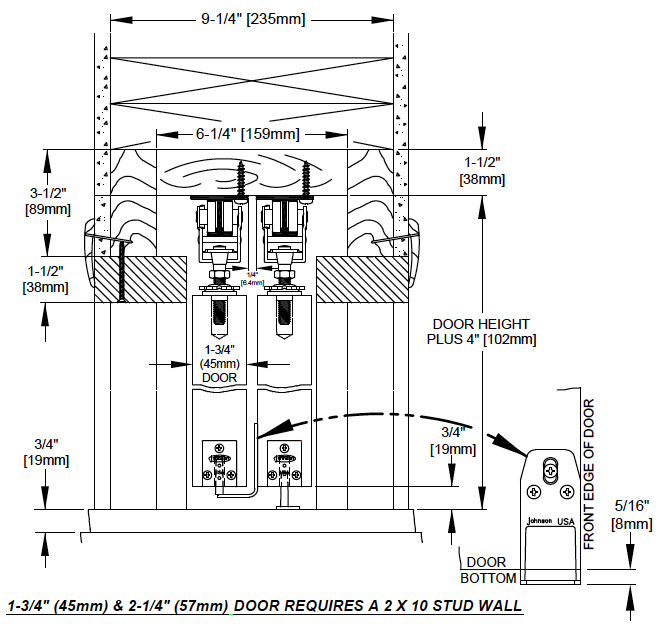

Opening Height Dimensions

Trackless Door Guiding Detail

Track Dimensions

2054PLBG Multi-Door Catch

Track Spacing Detail

200BP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door widths.


How to order 200BP Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm] or 1-3/4" [44mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Door Hardware Sets

Part No. Description /Contents Hardware Sets Track Length Max. Door Width Door Thickness Price | Qty. | Order
20BP0722 View Contents

2-Door

72" x 2 (6' - 0" x 2)
[1829mm x 2]

24" X 2
(2' - 0" X 2)
[610mm X 2]

1-3/4" [44mm]

$271.22
20BP0723 View Contents

2-Door

72" x 2 (6' - 0" x 2)
[1829mm x 2]

24" X 2
(2' - 0" X 2)
[610mm X 2]

2-1/4" [57mm]

$271.22
20BP0962 View Contents

2-Door

96” x 2 (8' - 0" x 2)
[2438mm x 2]

32" X 2
(2' - 8" X 2)
[813mm X 2]

1-3/4" [44mm]

$306.39
20BP0963 View Contents

2-Door

96” x 2 (8' - 0" x 2)
[2438mm x 2]

32" X 2
(2' - 8" X 2)
[813mm X 2]

2-1/4" [57mm]

$306.39
20BP1062 View Contents

2-Door

106" x 2 (8' - 10" x 2)
[2692mm x 2]

36" X 2
(3' - 0" X 2)
[914mm X 2]

1-3/4" [44mm]

$346.35
20BP1063 View Contents

2-Door

106" x 2 (8' - 10" x 2)
[2692mm x 2]

36" X 2
(3' - 0" X 2)
[914mm X 2]

2-1/4" [57mm]

$346.35
20BP1442 View Contents

2-Door

144" x 2 (12' - 0" x 2)
[3658mm x 2]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

1-3/4" [44mm]

$379.81
20BP1443 View Contents

2-Door

144" x 2 (12' - 0" x 2)
[3658mm x 2]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

2-1/4" [57mm]

$379.81

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Door Hardware Sets

Part No. Description /Contents Hardware Sets Track Length Max. Door Width Door Thickness Price | Qty. | Order
20BC0722 View Contents

4-Door

72" x 4 (6' - 0" x 4)
[1829mm x 4]

24" X 4
(2' - 0" X 4)
[610mm X 4]

1-3/4" [44mm]

$542.43
20BC0723 View Contents

4-Door

72" x 4 (6' - 0" x 4)
[1829mm x 4]

24" X 4
(2' - 0" X 4)
[610mm X 4]

2-1/4" [57mm]

$542.43
20BC0962 View Contents

4-Door

96” x 4 (8' - 0" x 4)
[2438mm x 4]

32" X 4
(2' - 8" X 4)
[813mm X 4]

1-3/4" [44mm]

$612.78
20BC0963 View Contents

4-Door

96” x 4 (8' - 0" x 4)
[2438mm x 4]

32" X 4
(2' - 8" X 4)
[813mm X 4]

2-1/4" [57mm]

$612.78
20BC1062 View Contents

4-Door

106" x 4 (8' - 10" x 4)
[2692mm x 4

36" X 4
(3' - 0" X 4)
[914mm X 4]

1-3/4" [44mm]

$692.71
20BC1063 View Contents

4-Door

106" x 4 (8' - 10" x 4)
[2692mm x 4

36" X 4
(3' - 0" X 4)
[914mm X 4]

2-1/4" [57mm]

$692.71
20BC1442 View Contents

4-Door

144" x 4 (12' - 0" x 4)
[3658mm x 4]

48" X 4
(4' - 0" X 4)
[1219mm X 4]

1-3/4" [44mm]

$759.61
20BC1443 View Contents

4-Door

144" x 4 (12' - 0" x 4)
[3658mm x 4]

48" X 4
(4' - 0" X 4)
[1219mm X 4]

2-1/4" [57mm]

$759.61

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm] or 1-3/4" [44mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
