Auto-Latching Pocket Door Locks

  • 1-3/8" [35mm] or 1-3/4" [44mm] Door Thickness
  • 2-3/8" [60mm] Standard Backset

  • 2-1/8" [54mm] Lock Bore

  • 15/16" [24mm] End Bore

  • Privacy Lock Function

  • Self-Latching Lock Operation

  • US3, US15, Black Available Finishes

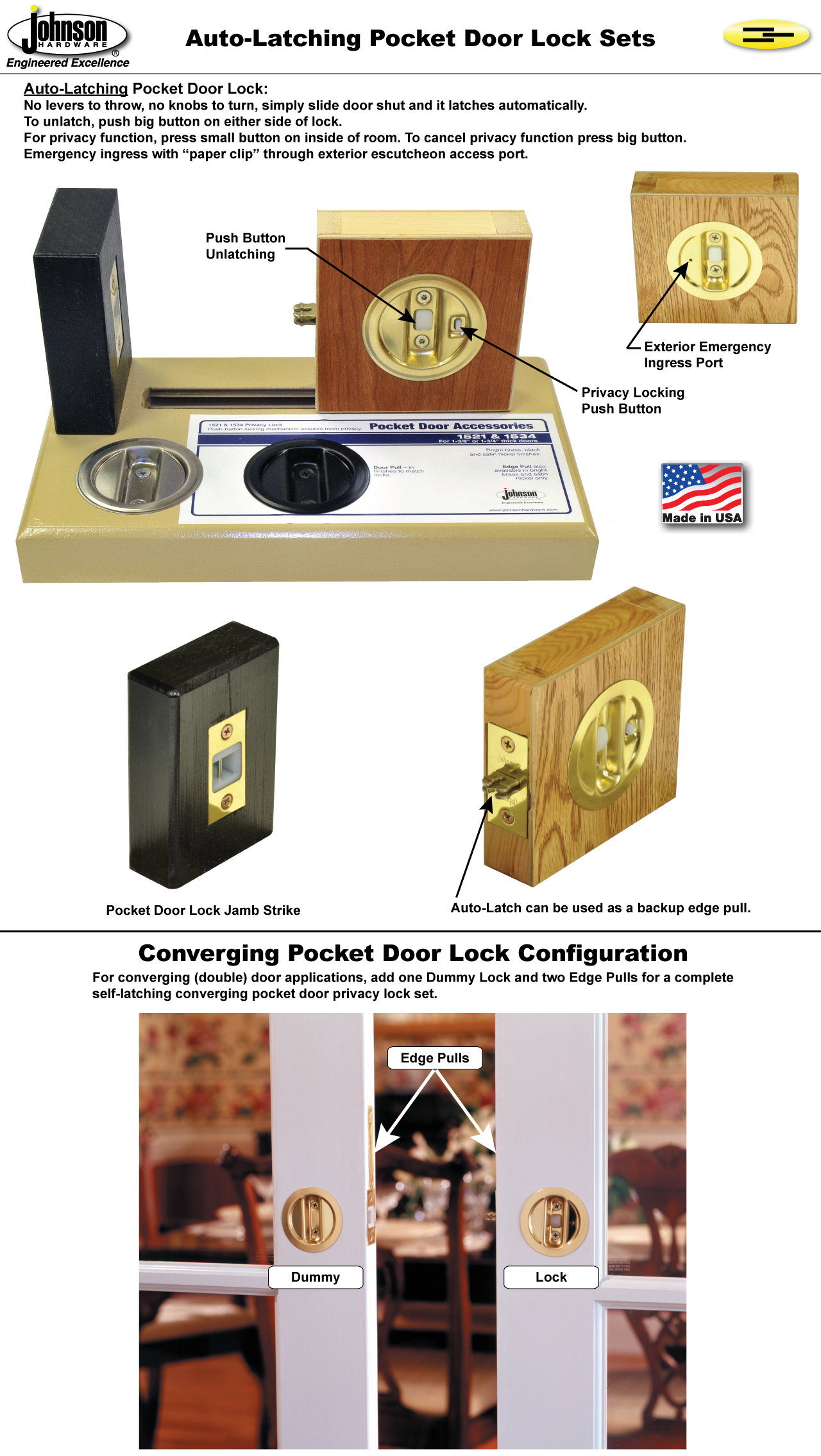

The perfect complement for any pocket door installation. Lock features automatic latching, just slide the door closed and it is latched. Push button latch disengagement for easy door opening. Simple touch-of-a-button privacy locking with emergency release. Universal handing, one lock functions in both right or left slide direction. Ideal for both single or converging pocket door applications.

The perfect complement for any pocket door installation. Lock features automatic latching, just slide the door closed and it is latched. Push button latch disengagement for easy door opening. Simple touch-of-a-button privacy locking with emergency release. Universal handing, one lock functions in both right or left slide direction. Ideal for both single or converging pocket door applications.

Pocket Door Lock Printed Instalation Instructions

Pocket Door Lock Quick Reference Drawings

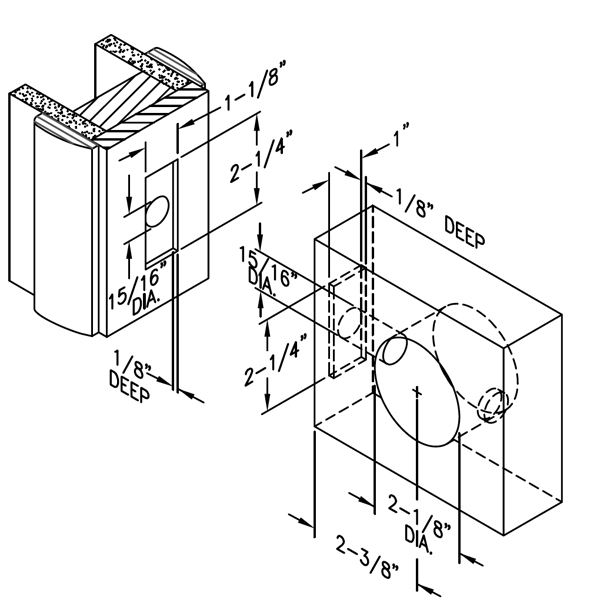

Lock Bore Dimensions

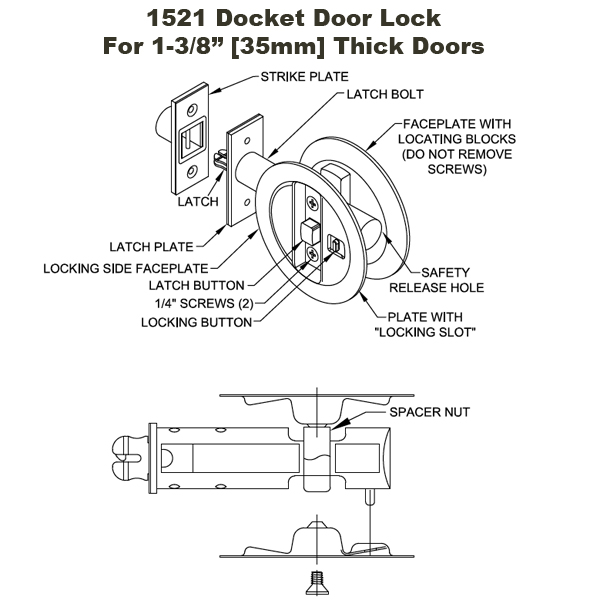

1-3/8" [35mm] Lock Detail

1-3/4" [44mm] Lock Detail

Products specifications
Lock Type Tube Latch
Lock Function Privacy Pocket
Lock Back Set 2-3/8"
Door Thickness 1-3/8" [35mm] or 1-3/4" [44mm]
Country of Origin U.S.A.
Product Grade Residential

1-3/8" [35mm] Door Thickness

Part No. Description /Contents Door Thickness Lock Function Finish Price | Qty. | Order
15213PK1 View Contents

1-3/8" [35mm]

Privacy Pocket

US3 Bright Brass

$21.47
21-3PPK2 View Contents

1-3/8" [35mm]

Dummy Pocket

US3 Bright Brass

$7.59
1521-BLK View Contents

1-3/8" [35mm]

Privacy Pocket

Painted Black

$21.47
121BLK View Contents

1-3/8" [35mm]

Dummy Pocket

Painted Black

$7.59
152115P1 View Contents

1-3/8" [35mm]

Privacy Pocket

US15 Satin Nickel

$21.47
21-15PK2 View Contents

1-3/8" [35mm]

Dummy Pocket

US15 Satin Nickel

$7.59

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

1-3/4" [44mm] Door Thickness

Part No. Description /Contents Door Thickness Lock Function Finish Price | Qty. | Order
1534-US3 View Contents

1-3/4" [44mm]

Privacy Pocket

US3 Bright Brass

$29.11
134US3 View Contents

1-3/4" [44mm]

Dummy Pocket

US3 Bright Brass

$10.84
1534-BLK View Contents

1-3/4" [44mm]

Privacy Pocket

Painted Black

$29.11
134-BLK1 View Contents

1-3/4" [44mm]

Dummy Pocket

Painted Black

$10.84
153415P1 View Contents

1-3/4" [44mm]

Privacy Pocket

US15 Satin Nickel

$29.11
134US15 View Contents

1-3/4" [44mm]

Dummy Pocket

US15 Satin Nickel

$10.84

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Lock Type Tube Latch
Lock Function Privacy Pocket
Lock Back Set 2-3/8"
Door Thickness 1-3/8" [35mm] or 1-3/4" [44mm]
Country of Origin U.S.A.
Product Grade Residential
