2800F Open Pocket Door Hardware

  • 75lbs [34kg] Max. Weight Per Door*

  • 1-3/8" [35mm], 1-3/4" [44mm] Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Residential Grade Top Hung Open Pocket Door Hardware

Space saving, header mounted "Open Pocket" sliding door hardware system. Ideal for bedrooms, walk-in closets, or any number of applications where space is at a premium. Half-pocket wall can hold a full length mirror, accessible when door is closed - hidden when door is open. Aluminum double fascia track with single convex rail, twin wheel height adjustable ball bearing hangers and wall mount door guide.

Space saving, header mounted "Open Pocket" sliding door hardware system. Ideal for bedrooms, walk-in closets, or any number of applications where space is at a premium. Half-pocket wall can hold a full length mirror, accessible when door is closed - hidden when door is open. Aluminum double fascia track with single convex rail, twin wheel height adjustable ball bearing hangers and wall mount door guide.

2800F Series Instalation Instructions

2800F Series Quick Reference Drawings

Opening Hight Dimensions

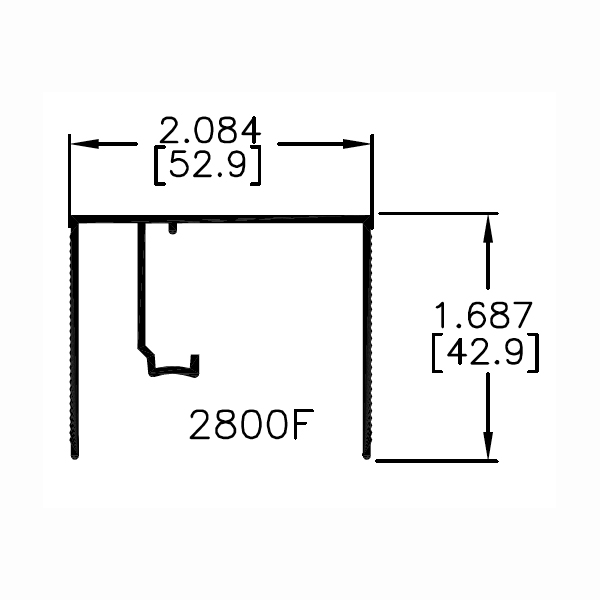

Track Dimensions

2800F Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 2800F Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications
Max. Weight Per Door 75lbs. [34kg]
Application Interior Residential
Door Thickness 1-3/8" [35mm] to 1-3/4" [44mm]
Series Track 2800F
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Double Fascia Single Leg J-Track
Hanger Type Top Mount
Wheel Dia. 7/8"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.

1-Door Twin Ball Bearing Wheel Hardware Sets

Part No. Description /Contents Track Length Max. Door Width Max. Weight Per Door Price | Qty. | Order
2800F481 View Contents

48" (4' - 0")
[1219mm]

24" (2'- 0")
[609mm]

75lbs. [34kg]

$44.13
2800F601 View Contents

60" (5' - 0")
[1524mm]

30" (2'- 6")
[762mm]

75lbs. [34kg]

$49.81
2800F721 View Contents

72" (6' - 0")
[1829mm]

36" (3'- 0")
[914mm]

75lbs. [34kg]

$50.03
2800F961 View Contents

96” (8' - 0")
[2438mm]

48" (4'- 0")
[1219mm]

75lbs. [34kg]

$58.90

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664
