111MP Tri-Pass Pocket Door Hardware

  • 150lbs [68kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • 283" (25' - 1/2") [7188mm] Max. Opening Width*

  • Commercial Grade Top Hung Tri-pass Pocket Door Hardware

  • *6-Door Configuration

The 111MP is one of the finest medium duty sliding door systems made. Ideal for residential/commercial applications where quality, trouble-free operation and long life is a necessity. The heavy gauge 6063T6 precision extruded aluminum track with convex rails is made to the most precise specification, with guaranteed jump proof smooth rolling tricycle ball bearing hangers.14 – 16 gauge zinc trivalent plated steel parts.

111MP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 111MP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

The 111MP is one of the finest medium duty sliding door systems made. Ideal for residential/commercial applications where quality, trouble-free operation and long life is a necessity. The heavy gauge 6063T6 precision extruded aluminum track with convex rails is made to the most precise specification, with guaranteed jump proof smooth rolling tricycle ball bearing hangers.14 – 16 gauge zinc trivalent plated steel parts.

111MP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 111MP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

111MP Series Instalation Instructions

111MP Series Quick Reference Drawings

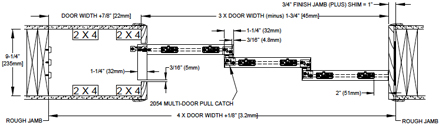

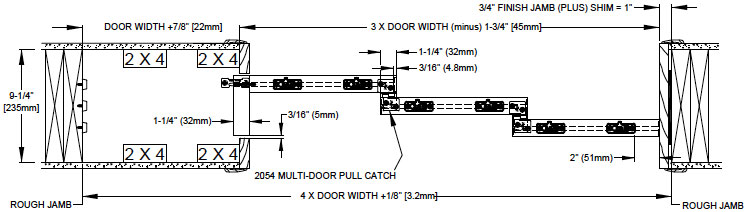

3-Door Opening Width Dimensions

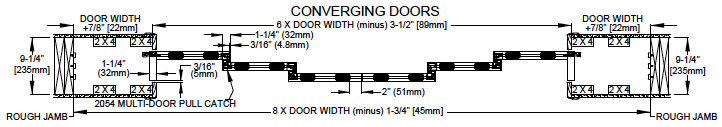

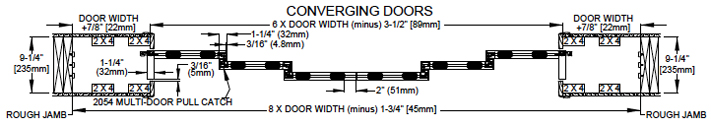

6-Door Opening Width Dimensions

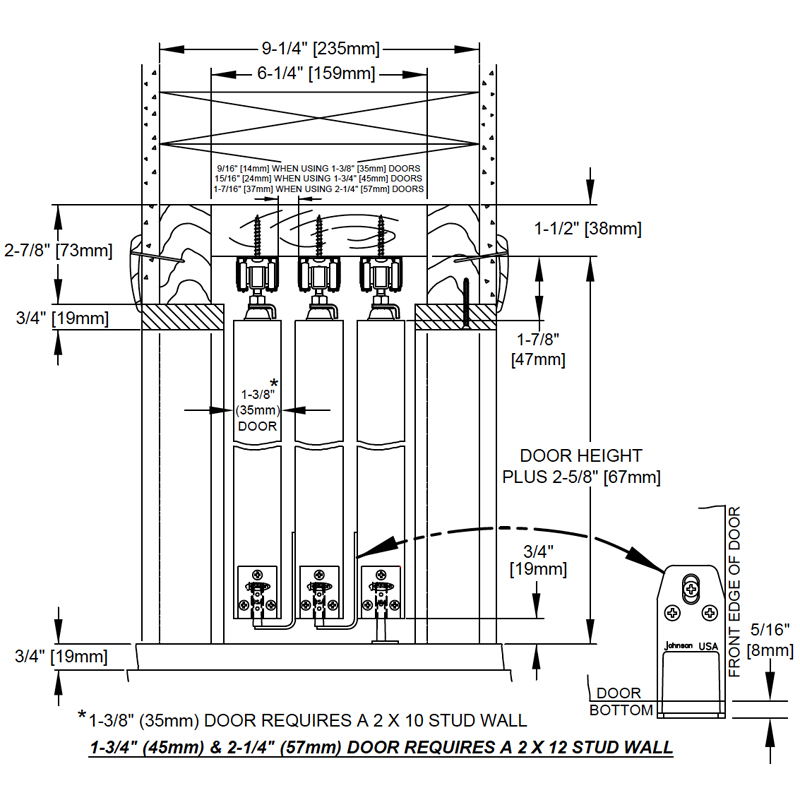

Opening Hight Dimensions

Trackless Door Guiding Detail

Track Dimensions

2054PLBG Multi-Door Catch

Track Spacing Detail

111MP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 111MP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 3/4"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

3-Door Hardware Sets

Part No. Description /Contents Hardware Sets Track Length Max. Door Width Door Thickness Price | Qty. | Order
11MP0961 View Contents

3-Door

96” x 3 (8' - 0" x 3)
[2438mm x 3]

24" X 3
(2' - 0" X 3)
[610mm X 3]

1-3/8" [35mm]

$129.35
11MP0962 View Contents

3-Door

96” x 3 (8' - 0" x 3)
[2438mm x 3]

24" X 3
(2' - 0" X 3)
[610mm X 3]

1-3/4" [44mm]

$129.35
11MP0963 View Contents

3-Door

96” x 3 (8' - 0" x 3)
[2438mm x 3]

24" X 3
(2' - 0" X 3)
[610mm X 3]

2-1/4" [57mm]

$129.35
11MP1201 View Contents

3-Door

120" x 3 (10' - 0" x 3)
[3048mm x 3]

30" X 3
(2' - 6" X 3)
[762mm X 3]

1-3/8" [35mm]

$144.86
11MP1202 View Contents

3-Door

120" x 3 (10' - 0" x 3)
[3048mm x 3]

30" X 3
(2' - 6" X 3)
[762mm X 3]

1-3/4" [44mm]

$144.86
11MP1203 View Contents

3-Door

120" x 3 (10' - 0" x 3)
[3048mm x 3]

30" X 3
(2' - 6" X 3)
[762mm X 3]

2-1/4" [57mm]

$144.86
11MP1441 View Contents

3-Door

144" x 3 (12' - 0" x 3)
[3658mm x 3]

36" X 3
(3' - 0" X 3)
[914mm X 3]

1-3/8" [35mm]

$155.90
11MP1442 View Contents

3-Door

144" x 3 (12' - 0" x 3)
[3658mm x 3]

36" X 3
(3' - 0" X 3)
[914mm X 3]

1-3/4" [44mm]

$155.90
11MP1443 View Contents

3-Door

144" x 3 (12' - 0" x 3)
[3658mm x 3]

36" X 3
(3' - 0" X 3)
[914mm X 3]

2-1/4" [57mm]

$155.90
11MP1921 View Contents

3-Door

192" x 3 (16' - 0" x 3)
[4877mm x 3]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

1-3/8" [35mm]

$175.64
11MP1922 View Contents

3-Door

192" x 3 (16' - 0" x 3)
[4877mm x 3]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

1-3/4" [44mm]

$175.64
11MP1923 View Contents

3-Door

192" x 3 (16' - 0" x 3)
[4877mm x 3]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

2-1/4" [57mm]

$175.64

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

6-Door Converging Hardware Sets

Part No. Description /Contents Hardware Sets Track Length Max. Door Width Door Thickness Price | Qty. | Order
11MC0961 View Contents

6-Door Converging

96” x 6 (8' - 0" x 6)
[2438mm x 6]

24" X 6
(2' - 0" X 6)
[610mm X 6]

1-3/8" [35mm]

$258.70
11MC0962 View Contents

6-Door Converging

96” x 6 (8' - 0" x 6)
[2438mm x 6]

24" X 6
(2' - 0" X 6)
[610mm X 6]

1-3/4" [44mm]

$258.70
11MC0963 View Contents

6-Door Converging

96” x 6 (8' - 0" x 6)
[2438mm x 6]

24" X 6
(2' - 0" X 6)
[610mm X 6]

2-1/4" [57mm]

$258.70
11MC1201 View Contents

6-Door Converging

120" x 6 (10' - 0" x 6)
[3048mm x 6]

30" x 6
(2' - 6" X 6)
[762mm X 6]

1-3/8" [35mm]

$289.72
11MC1202 View Contents

6-Door Converging

120" x 6 (10' - 0" x 6)
[3048mm x 6]

30" x 6
(2' - 6" X 6)
[762mm X 6]

1-3/4" [44mm]

$289.72
11MC1203 View Contents

6-Door Converging

120" x 6 (10' - 0" x 6)
[3048mm x 6]

30" x 6
(2' - 6" X 6)
[762mm X 6]

2-1/4" [57mm]

$289.72
11MC1441 View Contents

6-Door Converging

144" x 6 (12' - 0" x 6)
[3658mm x 6]

36" X 6
(3' - 0" X 6)
[914mm X 6]

1-3/8" [35mm]

$311.80
11MC1442 View Contents

6-Door Converging

144" x 6 (12' - 0" x 6)
[3658mm x 6]

36" X 6
(3' - 0" X 6)
[914mm X 6]

1-3/4" [44mm]

$311.80
11MC1443 View Contents

6-Door Converging

144" x 6 (12' - 0" x 6)
[3658mm x 6]

36" X 6
(3' - 0" X 6)
[914mm X 6]

2-1/4" [57mm]

$311.80
11MC1921 View Contents

6-Door Converging

192" x 6 (16' - 0" x 6)
[4877mm x 6]

48" X 6
(4' - 0" X 6)
[1219mm X 6]

1-3/8" [35mm]

$351.28
11MC1922 View Contents

6-Door Converging

192" x 6 (16' - 0" x 6)
[4877mm x 6]

48" X 6
(4' - 0" X 6)
[1219mm X 6]

1-3/4" [44mm]

$351.28
11MC1923 View Contents

6-Door Converging

192" x 6 (16' - 0" x 6)
[4877mm x 6]

48" X 6
(4' - 0" X 6)
[1219mm X 6]

2-1/4" [57mm]

$351.28

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 3/4"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
