111BP Bypass Pocket Door Hardware

  • 150lbs [68kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 7-1/4" [184mm] Min. Wall Structure Thickness

  • *189-1/2" (15' - 3/4") [4813mm] Max. Opening Width

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • * 4-Door Configuration

    111BP Installation Instructions

The 111BP is one of the finest heavy duty sliding bypass pocket door hardware systems made. Ideal for residential/commercial applications where quality, trouble-free operation and long life is a necessity. The 111BP features trackless door guides that eliminate the need for bottom guide tracks. The heavy gauge 6063T6 precision extruded aluminum track with convex rails is made to the most precise specification. Guaranteed jump proof smooth rolling tricycle ball bearing hangers.14 – 16 gauge zinc trivalent plated steel parts.

111BP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door widths.


How to order 111BP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

The 111BP is one of the finest heavy duty sliding bypass pocket door hardware systems made. Ideal for residential/commercial applications where quality, trouble-free operation and long life is a necessity. The 111BP features trackless door guides that eliminate the need for bottom guide tracks. The heavy gauge 6063T6 precision extruded aluminum track with convex rails is made to the most precise specification. Guaranteed jump proof smooth rolling tricycle ball bearing hangers.14 – 16 gauge zinc trivalent plated steel parts.

111BP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door widths.


How to order 111BP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

111BP Series Installation Instructions

111BP Series Quick Reference Drawings

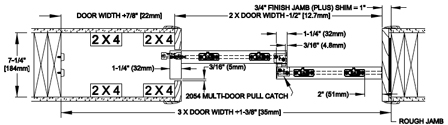

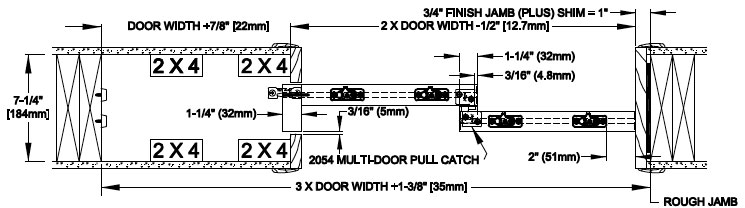

2-Door Opening Width Dimensions

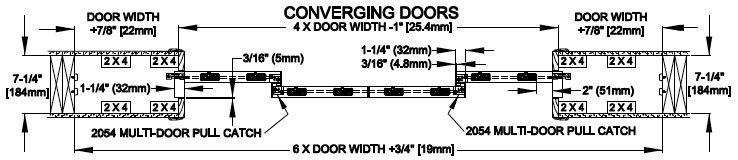

4-Door Opening Width Dimensions

Opening Height Dimensions

Trackless Door Guiding Detail

Track Dimensions

2054PLBG Multi-Door Catch

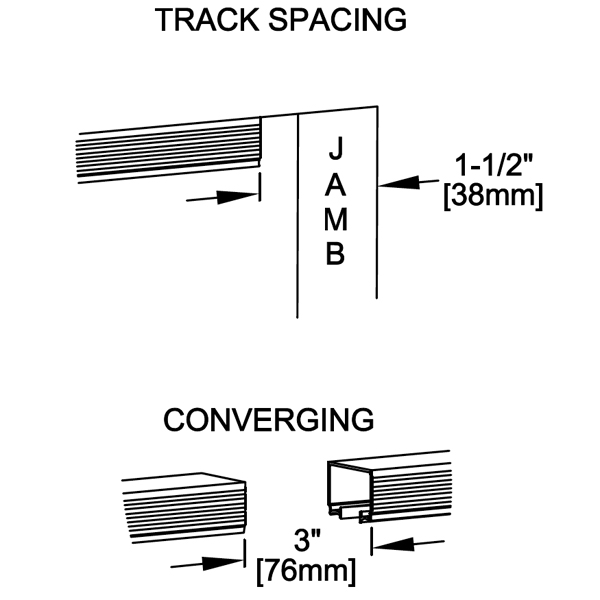

Track Spacing Detail

111BP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 111BP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications
Max. Weight Per Door 150lbs. [68kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 3/4"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Door Hardware Sets

Part No. Description /Contents Hardware Sets Track Length Max. Door Width Door Thickness Price | Qty. | Order
11BP0721 View Contents

2-Door

72" x 2 (6' - 0" x 2)
[1829mm x 2]

24" X 2
(2' - 0" X 2)
[610mm X 2]

1-3/8" [35mm]

$126.40
11BP0722 View Contents

2-Door

72" x 2 (6' - 0" x 2)
[1829mm x 2]

24" X 2
(2' - 0" X 2)
[610mm X 2]

1-3/4" [44mm]

$126.40
11BP0723 View Contents

2-Door

72" x 2 (6' - 0" x 2)
[1829mm x 2]

24" X 2
(2' - 0" X 2)
[610mm X 2]

2-1/4" [57mm]

$126.40
11BP0961 View Contents

2-Door

96” x 2 (8' - 0" x 2)
[2438mm x 2]

32" X 2
(2' - 8" X 2)
[813mm X 2]

1-3/8" [35mm]

$138.87
11BP0962 View Contents

2-Door

96” x 2 (8' - 0" x 2)
[2438mm x 2]

32" X 2
(2' - 8" X 2)
[813mm X 2]

1-3/4" [44mm]

$138.87
11BP0963 View Contents

2-Door

96” x 2 (8' - 0" x 2)
[2438mm x 2]

32" X 2
(2' - 8" X 2)
[813mm X 2]

2-1/4" [57mm]

$138.87
11BP1061 View Contents

2-Door

106" x 2 (8' - 10" x 2)
[2692mm x 2]

36" X 2
(3' - 0" X 2)
[914mm X 2]

1-3/8" [35mm]

$156.77
11BP1062 View Contents

2-Door

106" x 2 (8' - 10" x 2)
[2692mm x 2]

36" X 2
(3' - 0" X 2)
[914mm X 2]

1-3/4" [44mm]

$156.77
11BP1063 View Contents

2-Door

106" x 2 (8' - 10" x 2)
[2692mm x 2]

36" X 2
(3' - 0" X 2)
[914mm X 2]

2-1/4" [57mm]

$156.77
11BP1441 View Contents

2-Door

144" x 2 (12' - 0" x 2)
[3658mm x 2]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

1-3/8" [35mm]

$184.42
11BP1442 View Contents

2-Door

144" x 2 (12' - 0" x 2)
[3658mm x 2]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

1-3/4" [44mm]

$184.42
11BP1443 View Contents

2-Door

144" x 2 (12' - 0" x 2)
[3658mm x 2]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

2-1/4" [57mm]

$184.42

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Door Converging Hardware Sets

Part No. Description /Contents Hardware Sets Track Length Max. Door Width Door Thickness Price | Qty. | Order
11BC0721 View Contents

4-Door Converging

72" x 4 (6' - 0" x 4)
[1829mm x 4]

24" X 4
(2' - 0" X 4)
[610mm X 4]

1-3/8" [35mm]

$252.80
11BC0722 View Contents

4-Door Converging

72" x 4 (6' - 0" x 4)
[1829mm x 4]

24" X 4
(2' - 0" X 4)
[610mm X 4]

1-3/4" [44mm]

$252.80
11BC0723 View Contents

4-Door Converging

72" x 4 (6' - 0" x 4)
[1829mm x 4]

24" X 4
(2' - 0" X 4)
[610mm X 4]

2-1/4" [57mm]

$252.80
11BC0961 View Contents

4-Door Converging

96” x 4 (8' - 0" x 4)
[2438mm x 4]

32" X 4
(2' - 8" X 4)
[813mm X 4]

1-3/8" [35mm]

$277.75
11BC0962 View Contents

4-Door Converging

96” x 4 (8' - 0" x 4)
[2438mm x 4]

32" X 4
(2' - 8" X 4)
[813mm X 4]

1-3/4" [44mm]

$277.75
11BC0963 View Contents

4-Door Converging

96” x 4 (8' - 0" x 4)
[2438mm x 4]

32" X 4
(2' - 8" X 4)
[813mm X 4]

2-1/4" [57mm]

$277.75
11BC1061 View Contents

4-Door Converging

106" x 4 (8' - 10" x 4)
[2692mm x 4

36" X 4
(3' - 0" X 4)
[914mm X 4]

1-3/8" [35mm]

$313.53
11BC1062 View Contents

4-Door Converging

106" x 4 (8' - 10" x 4)
[2692mm x 4

36" X 4
(3' - 0" X 4)
[914mm X 4]

1-3/4" [44mm]

$313.53
11BC1063 View Contents

4-Door Converging

106" x 4 (8' - 10" x 4)
[2692mm x 4

36" X 4
(3' - 0" X 4)
[914mm X 4]

2-1/4" [57mm]

$313.53
11BC1441 View Contents

4-Door Converging

144" x 4 (12' - 0" x 4)
[3658mm x 4]

48" X 4
(4' - 0" X 4)
[1219mm X 4]

1-3/8" [35mm]

$368.84
11BC1442 View Contents

4-Door Converging

144" x 4 (12' - 0" x 4)
[3658mm x 4]

48" X 4
(4' - 0" X 4)
[1219mm X 4]

1-3/4" [44mm]

$368.84
11BC1443 View Contents

4-Door Converging

144" x 4 (12' - 0" x 4)
[3658mm x 4]

48" X 4
(4' - 0" X 4)
[1219mm X 4]

2-1/4" [57mm]

$368.84

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 150lbs. [68kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 3/4"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
