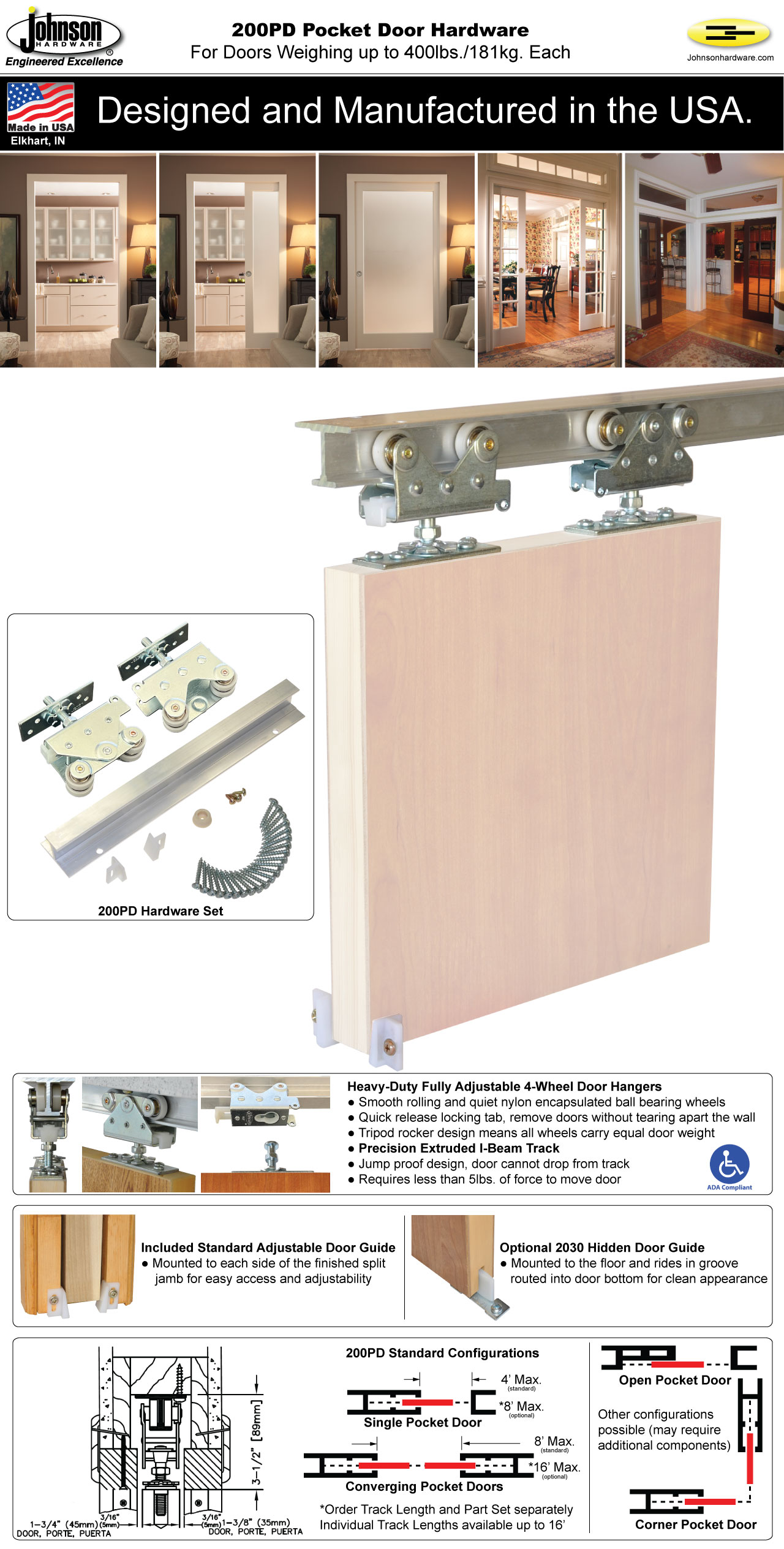

200PD Pocket Door Hardware

  • 400lbs [181kg] Max. Weight Per Door

  • 1-1/8" [29mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Pocket Door Hardware

The 200PD is commercial grade hardware ideally suited for heavy door applications where smooth, trouble-free operation and long life is a necessity. The 200PD is primarily designed for on-site pocket door fabrication but can be adapted for use in other various configurations and applications. The heavy-duty extruded aluminum I-beam track is made to precise specifications, and zinc plated ball-bearing wheel hangers are manufactured with Johnson's guarantee in mind. Heavy gauge steel components are zinc plated for a quality appearance. Track length available in up to 16' lengths.

200PD Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation.

Doors, jambs, drywall, door locks, door pulls, hidden pocket door guide kit and other accessories NOT included.

Track CAN be cut down to accommodate non-standard door widths.


200PD Ordering Instructions:

1. Determine your door width.

2. Match your door width to corresponding Part No./Max. Door Width in the table below.

3. Non-standard door width, order next longer track/hardware set and cut track down. Track Cut Down Video

The 200PD is commercial grade hardware ideally suited for heavy door applications where smooth, trouble-free operation and long life is a necessity. The 200PD is primarily designed for on-site pocket door fabrication but can be adapted for use in other various configurations and applications. The heavy-duty extruded aluminum I-beam track is made to precise specifications, and zinc plated ball-bearing wheel hangers are manufactured with Johnson's guarantee in mind. Heavy gauge steel components are zinc plated for a quality appearance. Track length available in up to 16' lengths.

200PD Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation.

Doors, jambs, drywall, door locks, door pulls, hidden pocket door guide kit and other accessories NOT included.

Track CAN be cut down to accommodate non-standard door widths.


200PD Ordering Instructions:

1. Determine your door width.

2. Match your door width to corresponding Part No./Max. Door Width in the table below.

3. Non-standard door width, order next longer track/hardware set and cut track down. Track Cut Down Video

200PD Series Instalation Instructions

200PD Series Quick Reference Drawings

Hardware Dimensions

Pocket Door Height

Open Pocket Door Height

Hanger Plate Placemet

Track Dimensions

200PD Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation.

Doors, jambs, drywall, door locks, door pulls, hidden pocket door guide kit and other accessories NOT included.

Track CAN be cut down to accommodate non-standard door widths.


200PD Ordering Instructions:

1. Determine your door width.

2. Match your door width to corresponding Part No./Max. Door Width in the table below.

3. Non-standard door width, order next longer track/hardware set and cut track down. Track Cut Down Video

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Min. Door Thickness 1-1/8"
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

1-Door Hardware Sets

Part No. Description /Contents Track Length Max. Door Width Min. Door Thickness Max. Weight Per Door Price | Qty. | Order
200481DR View Contents

48" (4' - 0")
[1219mm]

24" (2'- 0")
[609mm]

1-1/8"

400lbs. [181kg]

$91.03
200601DR View Contents

60" (5' - 0")
[1524mm]

30" (2'- 6")
[762mm]

1-1/8"

400lbs. [181kg]

$97.76
200721DR View Contents

72" (6' - 0")
[1829mm]

36" (3'- 0")
[914mm]

1-1/8"

400lbs. [181kg]

$111.78
200961DR View Contents

96” (8' - 0")
[2438mm]

48" (4'- 0")
[1219mm]

1-1/8"

400lbs. [181kg]

$125.41

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Min. Door Thickness 1-1/8"
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
