100PD Installation Instructions
A versatile single track system, the 100PD designed and packed primarily for "on-the-job" construction of pocket doors, but also usable in combination with itself or other Johnson series tracks for special installations of sliding doors. Aluminum track with convex rails, jump proof three wheel hangers. Heavy gauge steel components are zinc plated for a quality appearance. Components are available in bulk for fabricators, as are fixtures for assembly of pocket door frames.
100PD Series Pocket Door Hardware
Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.
How to order 100PD Series Pocket Door Hardware:
1. Determine your door width.
2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.
100PD Series Installation Instructions

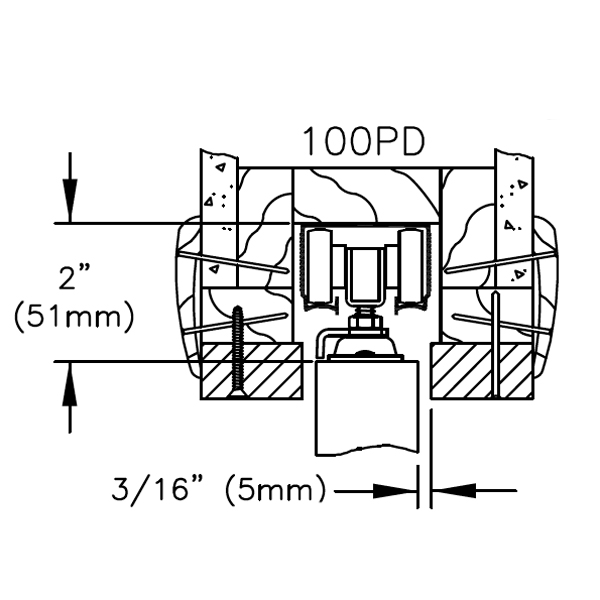

100PD Series Quick Reference Drawings

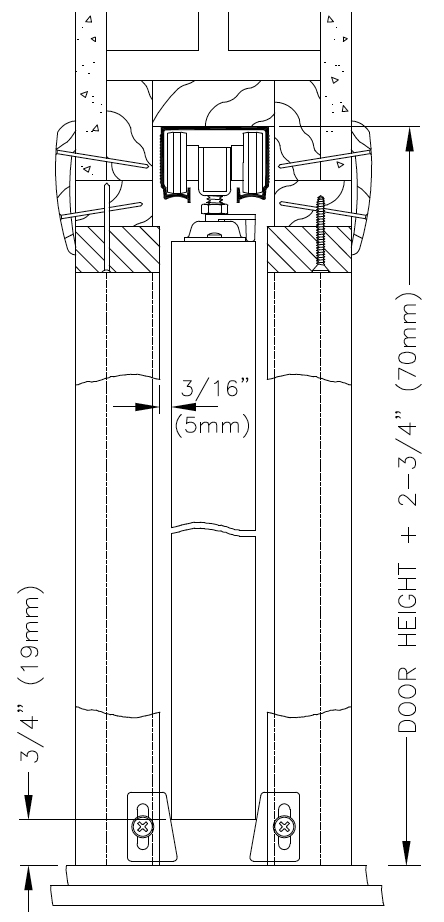

Opening Height Dimensions

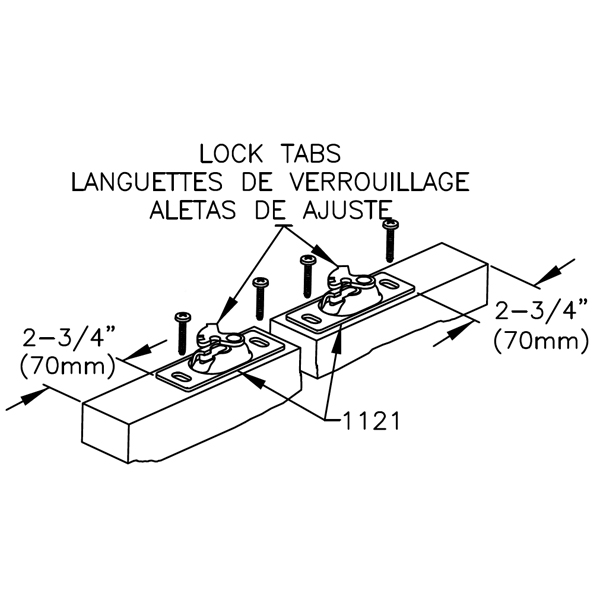

Hanger Plate Placemet
1-Door Ball Bearing Wheel
48" (4' - 0") [1219mm]
24" (2'- 0") [609mm]
60" (5' - 0") [1524mm]
30" (2'- 6") [762mm]
72" (6' - 0") [1829mm]
36" (3'- 0") [914mm]
96” (8' - 0") [2438mm]
48" (4'- 0") [1219mm]
Oversized item must be shipped freight. Include this item, entire order ships for $250 continental nation-wide. Freight orders over $600 ship free!
1-Door Standard Wheel
Ball Bearing Wheels
For Doors up to 200lbs. [91kg.]
