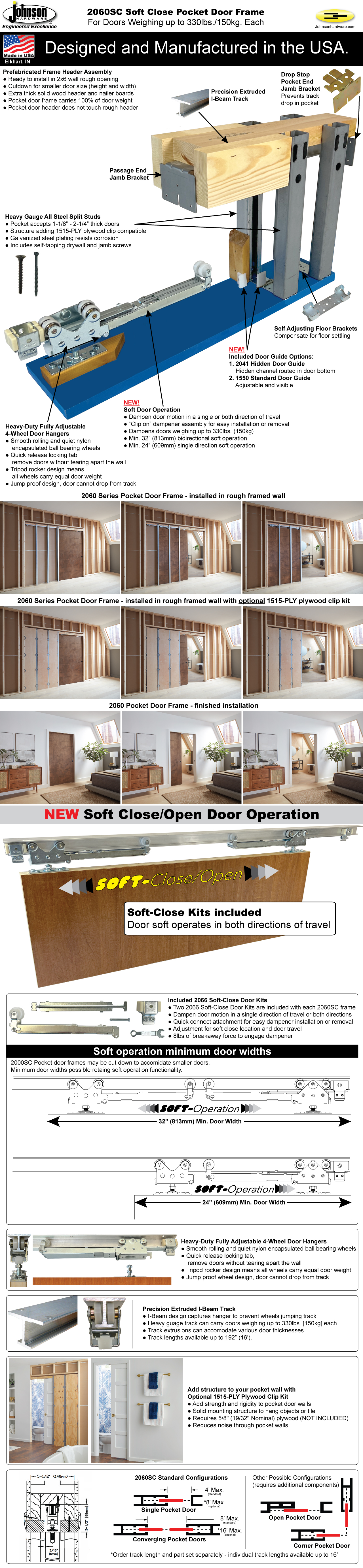

2060SC Series Heavy-Duty Soft-Close Pocket Door Frame Kits

The 2060SC Soft Operating Pocket Door Frame is one of the finest heavy duty commercial grade pocket door frames on the market today. The 2060SC is designed to softly operate heavy solid core doors (up to 330lbs each) in standard  2 x 6 timber or 6" steel framed stud walls when using the 2076PLBG 6" Steel Stud Adapter Kit. The 2060SC frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 2060SC is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

2060SC Exceptional Features

Ball Bearing Door Hangers

2060 Heavy-Duty Frame

I-Beam Track

Door Guiding Options

All Steel Pocket Structure

Drop Stop

2 x 6 Stud Wall

Product Guarantee

2060SC Series Pocket Door Frames

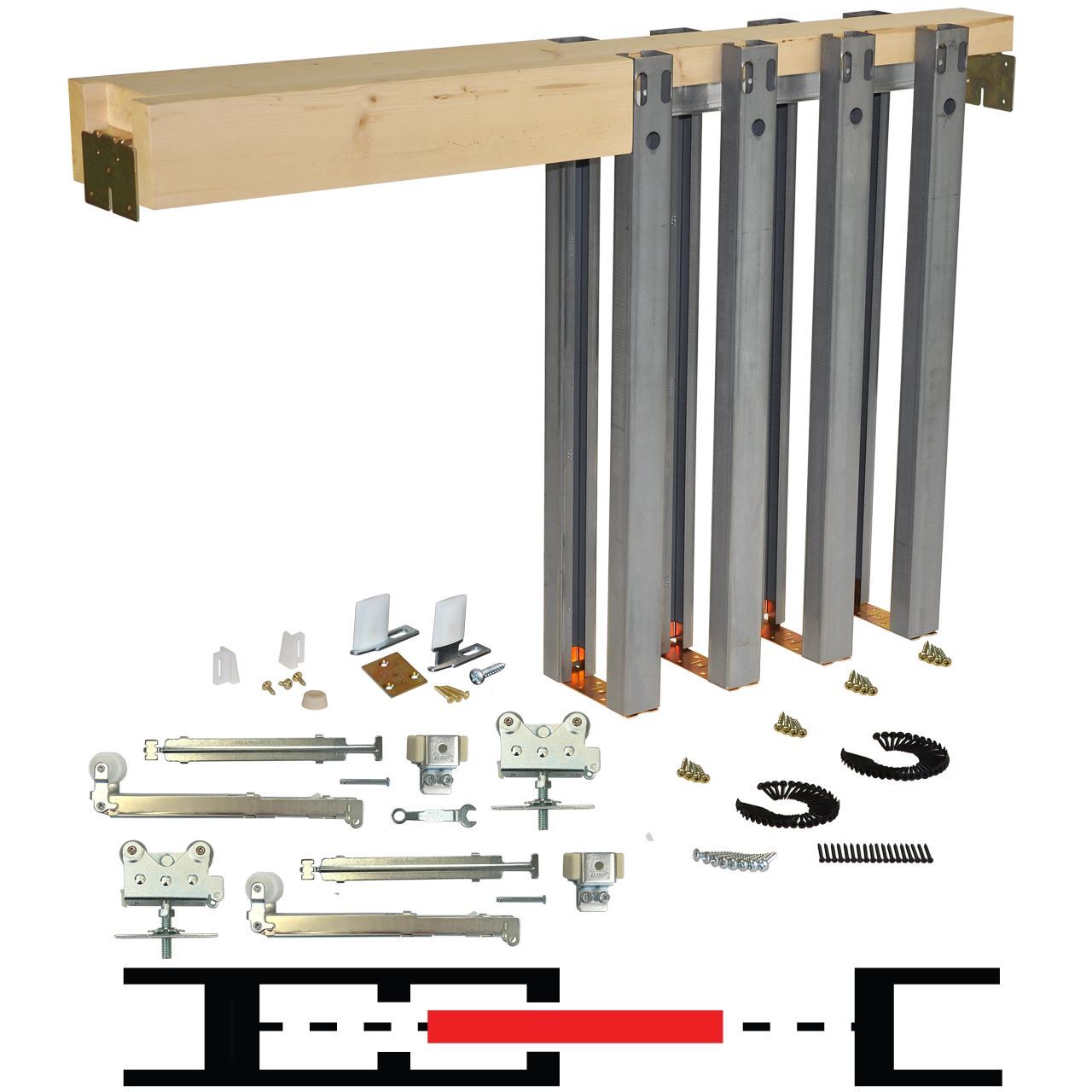

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door*.


How to order the 2060SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

*32" minimum door width for bidirectional soft operation.

*24" minimum door width for single direction soft operation.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

*32" minimum door width for bidirectional soft operation.

*24" minimum door width for single direction soft operation.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit.

The 2060SC Soft Operating Pocket Door Frame is one of the finest heavy duty commercial grade pocket door frames on the market today. The 2060SC is designed to softly operate heavy solid core doors (up to 330lbs each) in standard  2 x 6 timber or 6" steel framed stud walls when using the 2076PLBG 6" Steel Stud Adapter Kit. The 2060SC frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 2060SC is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

2060SC Exceptional Features

Ball Bearing Door Hangers

2060 Heavy-Duty Frame

I-Beam Track

Door Guiding Options

All Steel Pocket Structure

Drop Stop

2 x 6 Stud Wall

Product Guarantee

2060SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door*.


How to order the 2060SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

*32" minimum door width for bidirectional soft operation.

*24" minimum door width for single direction soft operation.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

*32" minimum door width for bidirectional soft operation.

*24" minimum door width for single direction soft operation.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit.

Products specifications
Product Grade Commercial/Residential
Application Interior Residential/Commercial
Door Thickness 1-1/8" [29mm] to <br>2-1/4" [57mm]<br>
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 96" (8'-0") [2438mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Max. Weight Per Door 330lbs. [150kg]
Country of Origin U.S.A.
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction 16 Gauge Cold Rolled Galvanized Steel
Track Profile I-Beam
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Hanger Type Top Mount
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Wheel Dia. 1"
Packaging Single Packed, Reinforced Corrugated Box
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Min. Soft Close Door Width Max. Door Height Door Thickness Price | Qty. | Order
263068SC View Contents

36" (3'- 0")
[914mm]

32" (2'- 8")
[813mm]

80"
(6'- 8")
[2032mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$539.77
264068SC View Contents

48" (4'- 0")
[1219mm]

32" (2'- 8")
[813mm]

80"
(6'- 8")
[2032mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$673.15
265068SC View Contents

60" (5'- 0")
[1524mm]

32" (2'- 8")
[813mm]

80"
(6'- 8")
[2032mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$799.86

Oversized item must be shipped freight. Freight orders over $600 ship free!

84" (7'-0") [2134mm] Max. Door Height

Part No. Description /Contents Max. Door Width Min. Soft Close Door Width Max. Door Height Door Thickness Price | Qty. | Order
263070SC View Contents

36" (3'- 0")
[914mm]

32" (2'- 8")
[813mm]

84"
(7'-0")
[2134mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$555.46
264070SC View Contents

48" (4'- 0")
[1219mm]

32" (2'- 8")
[813mm]

84"
(7'-0")
[2134mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$683.60
265070SC View Contents

60" (5'- 0")
[1524mm]

32" (2'- 8")
[813mm]

84"
(7'-0")
[2134mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$813.78

Oversized item must be shipped freight. Freight orders over $600 ship free!

96" (8'-0") [2438mm] Max. Door Height

Part No. Description /Contents Max. Door Width Min. Soft Close Door Width Max. Door Height Door Thickness Price | Qty. | Order
263080SC View Contents

36" (3'- 0")
[914mm]

32" (2'- 8")
[813mm]

96"
(8'-0")
[2438mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$576.66
264080SC View Contents

48" (4'- 0")
[1219mm]

32" (2'- 8")
[813mm]

96"
(8'-0")
[2438mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$724.06
265080SC View Contents

60" (5'- 0")
[1524mm]

32" (2'- 8")
[813mm]

96"
(8'-0")
[2438mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$855.98

Oversized item must be shipped freight. Freight orders over $600 ship free!

108" (9'-0") [2743mm] Max. Door Height

Part No. Description /Contents Max. Door Width Min. Soft Close Door Width Max. Door Height Door Thickness Price | Qty. | Order
263090SC View Contents

36" (3'- 0")
[914mm]

32" (2'- 8")
[813mm]

108"
(9'-0")
[2743mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$602.71
264090SC View Contents

48" (4'- 0")
[1219mm]

32" (2'- 8")
[813mm]

108"
(9'-0")
[2743mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$756.92
265090SC View Contents

60" (5'- 0")
[1524mm]

32" (2'- 8")
[813mm]

108"
(9'-0")
[2743mm]

1-1/8" [29mm] to
2-1/4" [57mm]

$897.95

Oversized item must be shipped freight. Freight orders over $600 ship free!
