200MD Multi-Pass Sliding Door Hardware

  • 400lbs [181kg] Max Weight Per Door

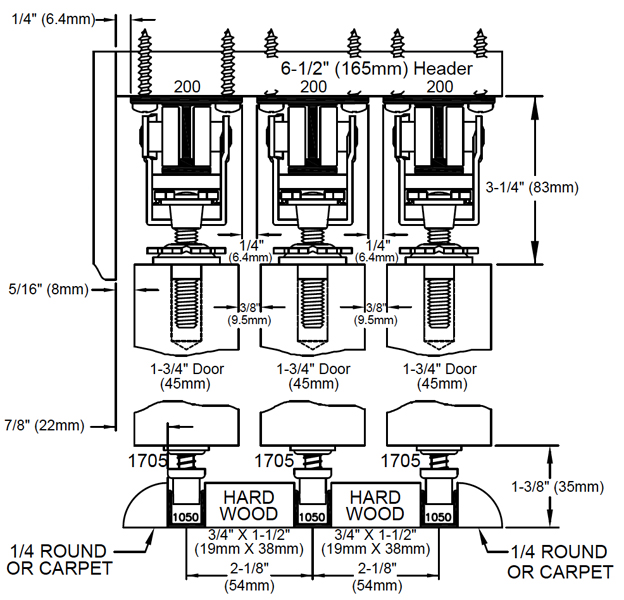

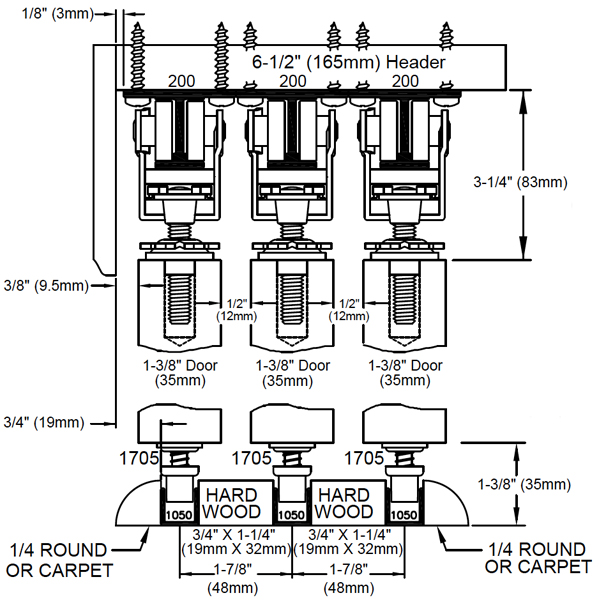

  • 6-1/2" [165mm] Min Wall Structure Thickness*

  • 1-1/8" [29mm] Min Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

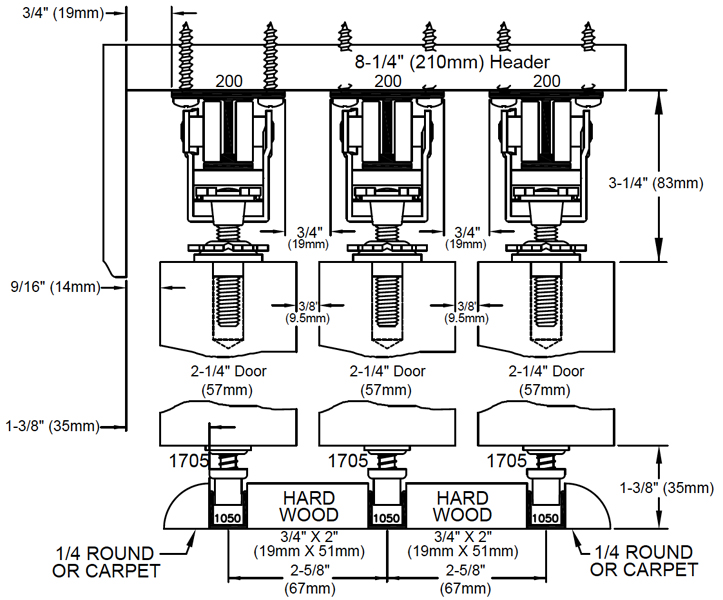

  • *Wall Structure Thickness Varies With Door Thickness

The 200MD is one of the finest residential/commercial grade sliding door systems made manufactured with Johnson's guarantee in mind. Ideal for commercial applications where quality, trouble-free operation and long life is a necessity. The heavy duty .125 6063T6 precision extruded aluminum I-beam track is made to the most precise specifications, and the four-wheeled ball-bearing hangers feature removable hanger plates, 14 – 16 gauge zinc trivalent plated steel parts.

200MD Series Multi-Pass Door Hardware

Select a hardware set part number with track length that accommodates your door widths. Don't see a hardware set that matches your exact door size? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 3-door multi-pass installations.

  • Track can be cut down to accommodate narrower door/openings.
  • Doors overlap 1' [25mm] when in closed position. Net opening with = 3 x door width -2" [50mm].
  • Custom 200MD configurations possible by ordering 200MD components by the piece.

The 200MD is one of the finest residential/commercial grade sliding door systems made manufactured with Johnson's guarantee in mind. Ideal for commercial applications where quality, trouble-free operation and long life is a necessity. The heavy duty .125 6063T6 precision extruded aluminum I-beam track is made to the most precise specifications, and the four-wheeled ball-bearing hangers feature removable hanger plates, 14 – 16 gauge zinc trivalent plated steel parts.

200MD Series Multi-Pass Door Hardware

Select a hardware set part number with track length that accommodates your door widths. Don't see a hardware set that matches your exact door size? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 3-door multi-pass installations.

  • Track can be cut down to accommodate narrower door/openings.
  • Doors overlap 1' [25mm] when in closed position. Net opening with = 3 x door width -2" [50mm].
  • Custom 200MD configurations possible by ordering 200MD components by the piece.

200MD Printed Instalation Instructions

200MD Quick Reference Drawings

200MD Series Sliding Bypass Door Hardware

Select a hardware set part number with track length that accommodates your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 3-door multi-pass installations.
  • Doors overlap 1' [25mm] when in closed position. Net opening with = 3 x door width -2" [50mm].
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 200MD configurations possible by ordering 200MD components by the piece.
Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Min. Door Thickness 1-1/8"
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum

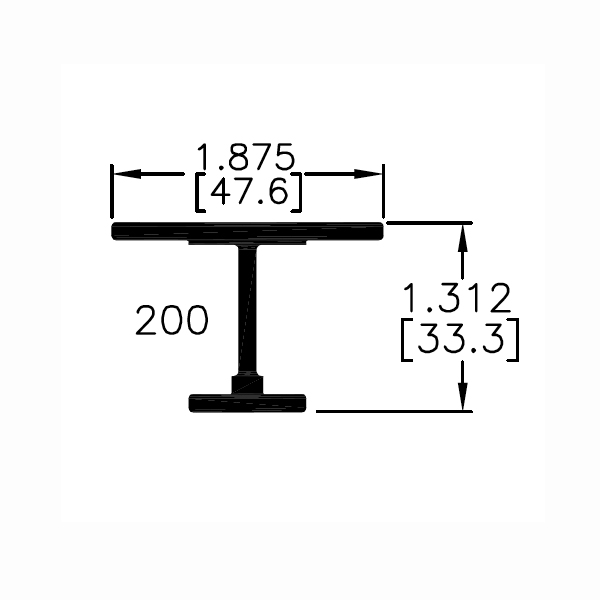

Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

3-Door Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
200M0723 View Contents

24" X 3 (2' - 0" X 3)
[610mm X 3]

70” x 3 (5' - 10" x 3)
[1778mm x 3]

400lbs. [181kg]

$371.53
200M0963 View Contents

32" X 3 (2' - 8" X 3)
[813mm X 3]

94" x 3 (7' - 10" x 3)
[2388mm x 3]

400lbs. [181kg]

$424.05
200M1083 View Contents

36" X 3 (3' - 0" X 3)
[914mm X 3]

106" x 3 (8' - 10" x 3)
[2692mm x 3]

400lbs. [181kg]

$480.09
200M1443 View Contents

48" X 3 (4' - 0" X 3)
[1219mm X 3]

142” x 3 (11' - 10" x 3)
[3607mm x 3]

400lbs. [181kg]

$535.24

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Min. Door Thickness 1-1/8"
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
