2000SC Series Heavy-Duty Soft-Close Pocket Door Frame Kits

The 2000SC Series Soft-Close Pocket Door Frame is designed to softly operate heavy solid core doors in standard  2 x 4 timber or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 2000SC frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 2000SC is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept smaller size door sizes.

Minimum door width for bidirectional soft-closing door operation is 32".

Minimum door width for single direction soft-closing door operation is 24".

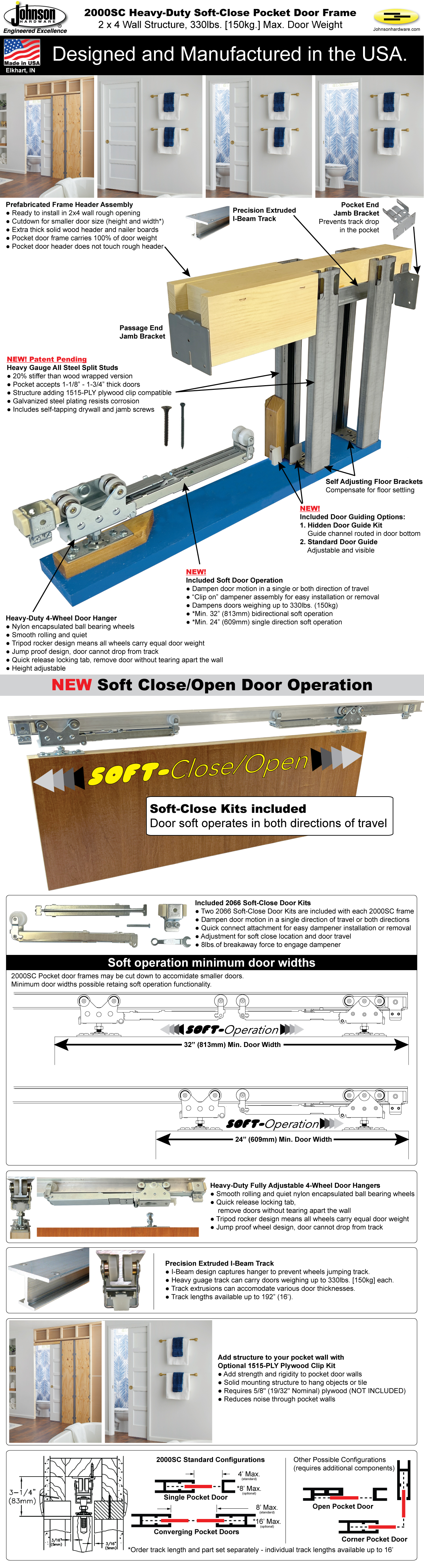

2000SC Series Installation Example



2000SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls NOT included). All frames CAN be cut down to fit smaller size door*.


How to order the 2000SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Ex. 36" x 80" door slab, order 203068SC frame.

Don't see your exact door size? Johnson frames can be cut down (height and width) to accommodate smaller size doors. Order the next larger frame size for your door and cut frame down per instructions.

*32" minimum door width for bidirectional soft operation.
*24" minimum door width for single direction soft operation.





For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Ex. 36" x 80" door slab, order 203068SC frame.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 2050PLBG Converging Door Kit.

Don't see your exact door size? Johnson frames can be cut down (height and width) to accommodate smaller size doors. Order the next larger frame size for your door and cut frame down per instructions.
*32" minimum door width for bidirectional soft operation.
*24" minimum door width for single direction soft operation.

The 2000SC Series Soft-Close Pocket Door Frame is designed to softly operate heavy solid core doors in standard  2 x 4 timber or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 2000SC frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 2000SC is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept smaller size door sizes.

Minimum door width for bidirectional soft-closing door operation is 32".

Minimum door width for single direction soft-closing door operation is 24".



2000SC Series Installation Example



2000SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls NOT included). All frames CAN be cut down to fit smaller size door*.


How to order the 2000SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Ex. 36" x 80" door slab, order 203068SC frame.

Don't see your exact door size? Johnson frames can be cut down (height and width) to accommodate smaller size doors. Order the next larger frame size for your door and cut frame down per instructions.

*32" minimum door width for bidirectional soft operation.
*24" minimum door width for single direction soft operation.





For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Ex. 36" x 80" door slab, order 203068SC frame.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 2050PLBG Converging Door Kit.

Don't see your exact door size? Johnson frames can be cut down (height and width) to accommodate smaller size doors. Order the next larger frame size for your door and cut frame down per instructions.
*32" minimum door width for bidirectional soft operation.
*24" minimum door width for single direction soft operation.

Products specifications
Max. Weight Per Door 330lbs. [150kg]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 108" (9'-0") [2743mm]
Door Thickness 1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Track Profile I-Beam
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Min. Soft Close Door Width Max. Door Height Door Thickness Price | Qty. | Order
203068SC View Contents

36" (3'- 0")
[914mm]

32" (2'- 8")
[813mm]

80"
(6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$450.13
204068SC View Contents

48" (4'- 0")
[1219mm]

32" (2'- 8")
[813mm]

80"
(6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$535.90
205068SC View Contents

60" (5'- 0")
[1524mm]

32" (2'- 8")
[813mm]

80"
(6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$613.41

Oversized item must be shipped freight. Freight orders over $600 ship free!

84" (7'-0") [2134mm] Max. Door Height

Part No. Description /Contents Max. Door Width Min. Soft Close Door Width Max. Door Height Door Thickness Price | Qty. | Order
203070SC View Contents

36" (3'- 0")
[914mm]

32" (2'- 8")
[813mm]

84"
(7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$466.74
204070SC View Contents

48" (4'- 0")
[1219mm]

32" (2'- 8")
[813mm]

84"
(7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$554.84
205070SC View Contents

60" (5'- 0")
[1524mm]

32" (2'- 8")
[813mm]

84"
(7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$645.83

Oversized item must be shipped freight. Freight orders over $600 ship free!

96" (8'-0") [2438mm] Max. Door Height

Part No. Description /Contents Max. Door Width Min. Soft Close Door Width Max. Door Height Door Thickness Price | Qty. | Order
203080SC View Contents

36" (3'- 0")
[914mm]

32" (2'- 8")
[813mm]

96"
(8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$494.28
204080SC View Contents

48" (4'- 0")
[1219mm]

32" (2'- 8")
[813mm]

96"
(8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$591.59
205080SC View Contents

60" (5'- 0")
[1524mm]

32" (2'- 8")
[813mm]

96"
(8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$688.20

Oversized item must be shipped freight. Freight orders over $600 ship free!

108" (9'-0") [2743mm] Max. Door Height

Part No. Description /Contents Max. Door Width Min. Soft Close Door Width Max. Door Height Door Thickness Price | Qty. | Order
203090SC View Contents

36" (3'- 0")
[914mm]

32" (2'- 8")
[813mm]

108"
(9'-0")
[2743mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$535.87
204090SC View Contents

48" (4'- 0")
[1219mm]

32" (2'- 8")
[813mm]

108"
(9'-0")
[2743mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$634.24
205090SC View Contents

60" (5'- 0")
[1524mm]

32" (2'- 8")
[813mm]

108"
(9'-0")
[2743mm]

1-1/8" [29mm] to
1-3/4" [44mm]

$733.39

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 330lbs. [150kg]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 108" (9'-0") [2743mm]
Door Thickness 1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Track Profile I-Beam
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
