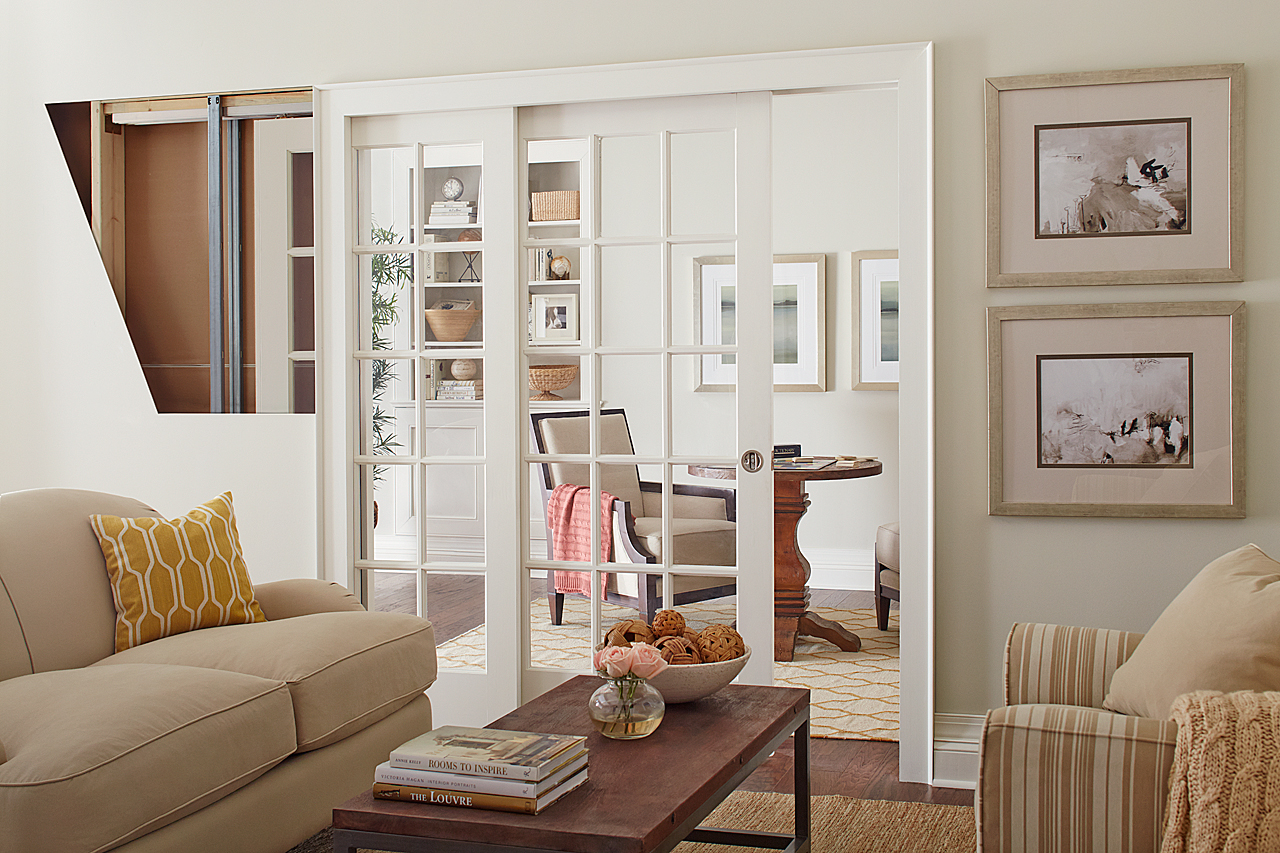

1562 Series Bypass Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door

  • 18" [457mm], 24" [610mm], 30" [762mm], 36" [914mm] Door Widths

  • 108" [2743mm] Max Door Height

  • 1-3/8" [35mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

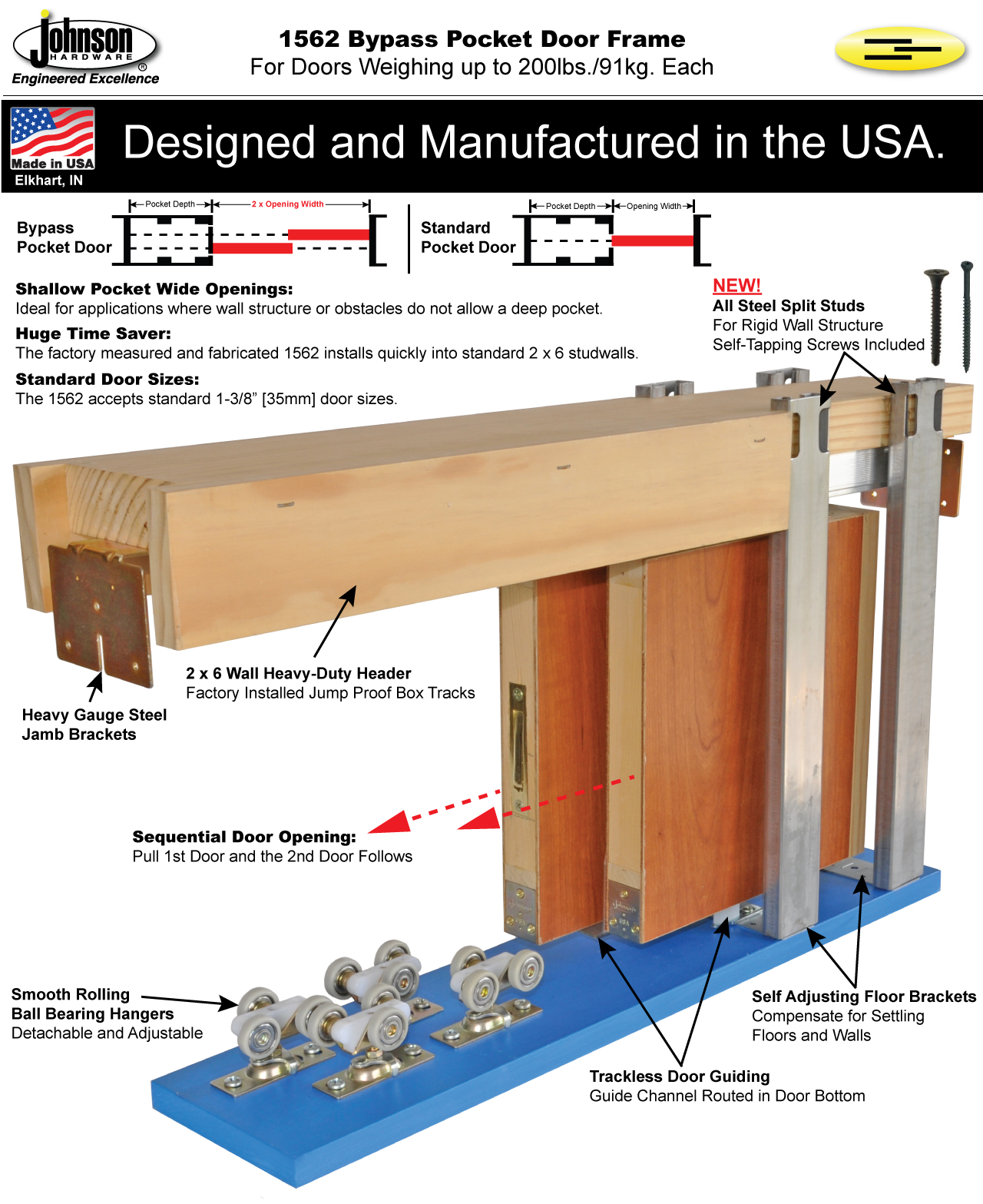

The 1562 Series Bypass Pocket Door Frame is designed to carry 2 heavy solid core bypassing doors in a standard 2 x 6 timber or steel framed stud wall. The 1562 allows architects and designers to specify large room dividing openings with minimum wall obstruction for "clean and open" living spaces. The 1562 Frame Kit is factory configured to accept most standard door sizes and packaged for easy transport and fast installation in either bypass pocket door or converging bypass pocket door applications.

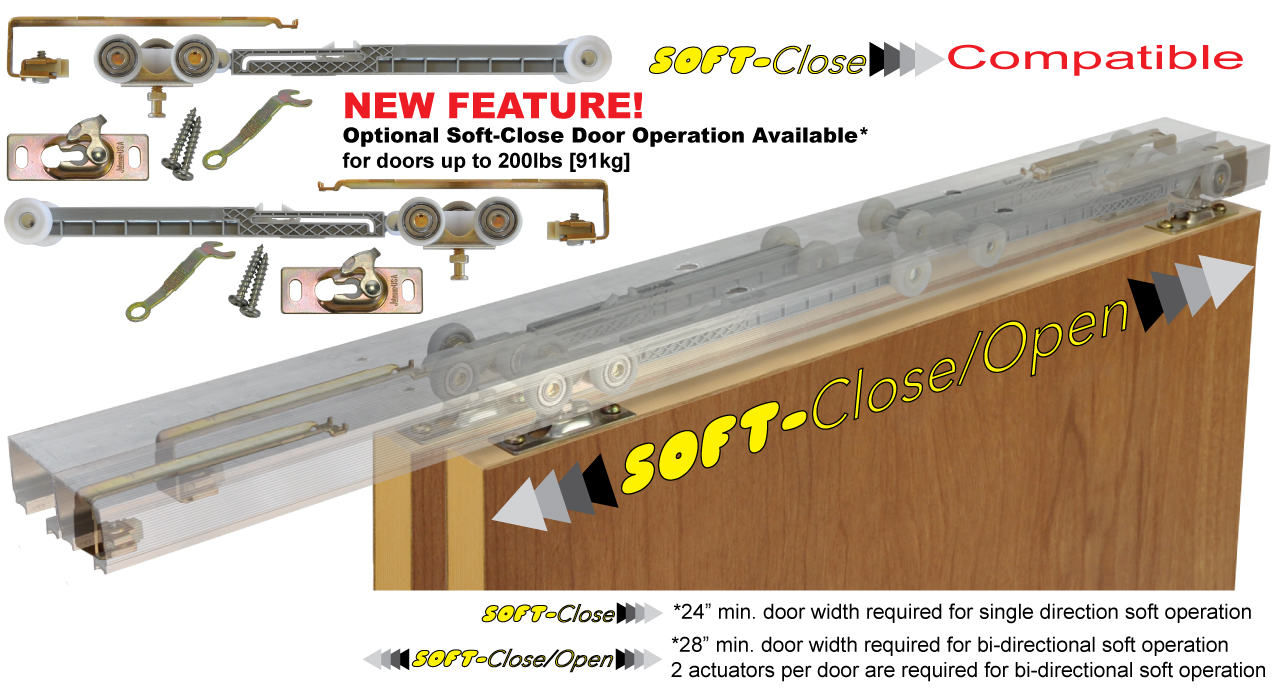

1562 Series Pocket Door Frames

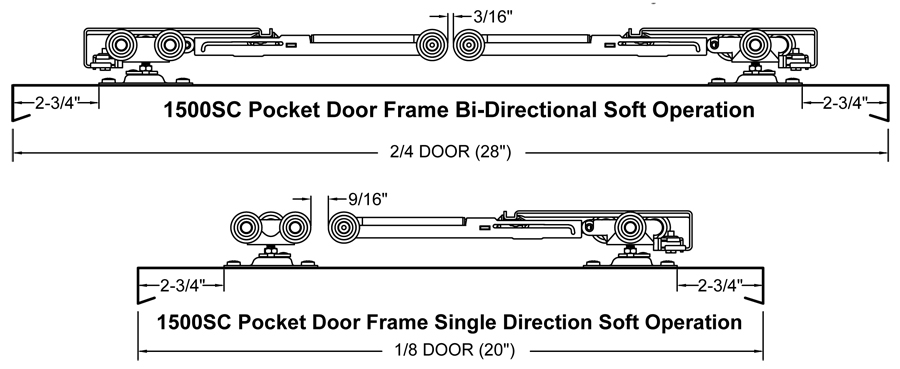

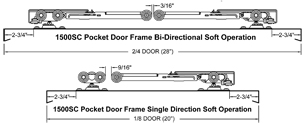

Bypass Pocket Door Frame kits contain all necessary hardware for one bypass pocket door installation in a 2x6 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door. Soft-Close door operation requires the purchase of optional 1060 Soft-Close Kits.


How to order the 1562 Series Pocket Door frame:

For Single Direct Bypass Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Bypass Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each pair of bypassing doors (2 frames total).

4. Order 1 1556PLBG Converging Door Kit.

The 1562 Series Bypass Pocket Door Frame is designed to carry 2 heavy solid core bypassing doors in a standard 2 x 6 timber or steel framed stud wall. The 1562 allows architects and designers to specify large room dividing openings with minimum wall obstruction for "clean and open" living spaces. The 1562 Frame Kit is factory configured to accept most standard door sizes and packaged for easy transport and fast installation in either bypass pocket door or converging bypass pocket door applications.

1562 Series Pocket Door Frames

Bypass Pocket Door Frame kits contain all necessary hardware for one bypass pocket door installation in a 2x6 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door. Soft-Close door operation requires the purchase of optional 1060 Soft-Close Kits.


How to order the 1562 Series Pocket Door frame:

For Single Direct Bypass Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Bypass Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each pair of bypassing doors (2 frames total).

4. Order 1 1556PLBG Converging Door Kit.

1562 Series Instalation Instructions

1562 Series Quick Reference Drawings

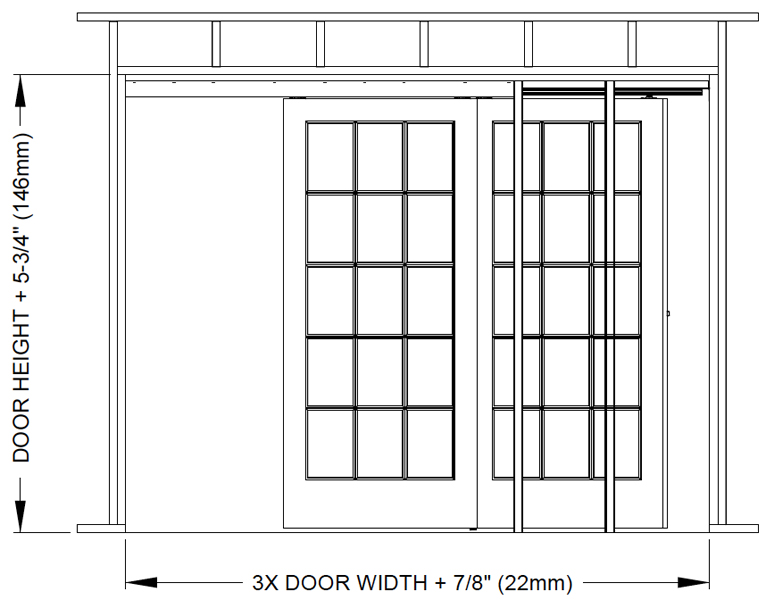

Single Door Rough-in

Converging Door Rough-in

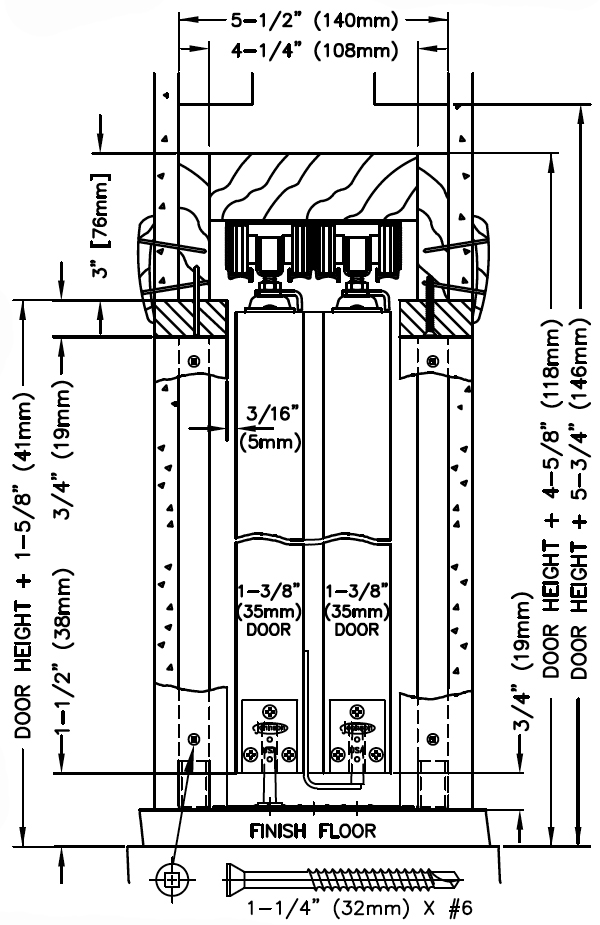

Opening Hight Dimensions

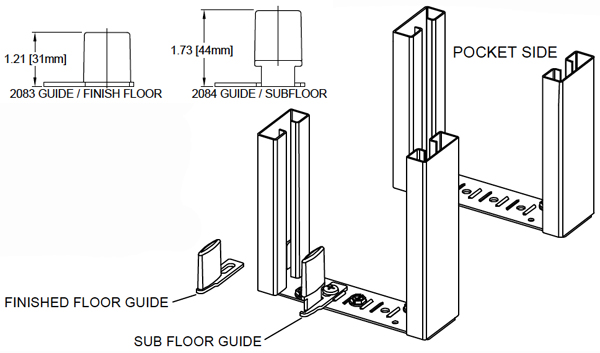

Hidden Pocket Door Guide Kit

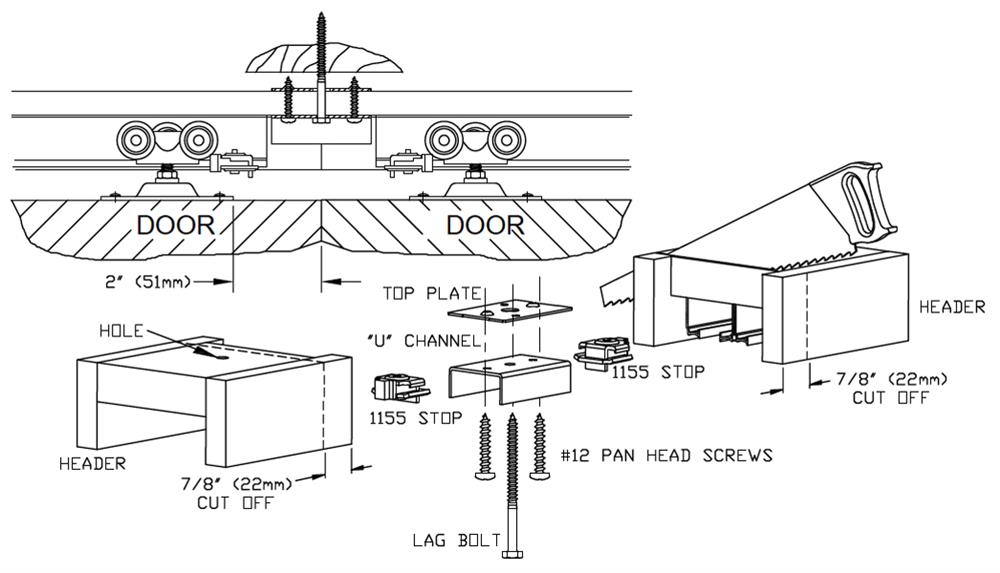

1556PLBG Converging Door Kit

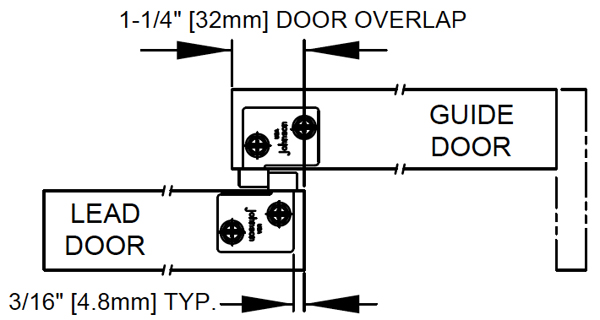

2054PLBG Multi-Door Catch

1562 Series Pocket Door Frames

Bypass Pocket Door Frame kits contain all necessary hardware for one bypass pocket door installation in a 2x6 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door. Soft-Close door operation requires the purchase of optional 1060 Soft-Close Kits.


How to order the 1562 Series Pocket Door frame:

For Single Direct Bypass Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Bypass Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each pair of bypassing doors (2 frames total).

4. Order 1 1556PLBG Converging Door Kit.

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Max. Door Width 36" X 2 (3' - 0" X 2) [914mm X 2]
Max. Door Height 108" (9'-0") [2743mm]
Door Thickness 1-3/8" [35mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Ball Bearing Wheel(200lbs Max.)
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Frame Header Material Spruce, Pine or Fir (#3 or better)
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Door Width Door Opening Width Max. Door Height Door Thickness Price | Qty. | Order
15621668 View Contents

18" x 2 (1'- 6" x 2)
[457mm x 2]

34-3/4" [1219mm]

80"
(6'- 8")
[2032mm]

1-3/8" x 2 [35mm x 2]

$227.65
15622068 View Contents

24" x 2 (2'- 0" x 2)
[609mm x 2]

46-3/4" [1219mm]

80"
(6'- 8")
[2032mm]

1-3/8" x 2 [35mm x 2]

$240.50
15622668 View Contents

30" x 2 (2'- 6" x 2)
[762mm x 2]

58-3/4" [1524mm]

80"
(6'- 8")
[2032mm]

1-3/8" x 2 [35mm x 2]

$276.45
15623068 View Contents

36" x 2 (3'- 0" x 2)
[914mm x 2]

70-3/4" [1829mm]

80"
(6'- 8")
[2032mm]

1-3/8" x 2 [35mm x 2]

$301.45

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664
