1500HD Series Heavy-Duty Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door

  • 48" [1219mm] x 96" [2438mm] Max. Door Size

  • 1" [25mm] - 1-3/4 [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

  • Soft-Close Compatible W/ Optional Soft-Close Kit

  • 1500HD Installation Instructions

The 1500HD Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 200lbs. Ball bearing hanger wheels provide feather-touch door operation making the 1500HD one of the smoothest rolling pocket door installations available. The 1500 is designed to be quickly installed into prepared 2 x 4 timber frame stud walls or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 1500 Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accommodate custom size doors.

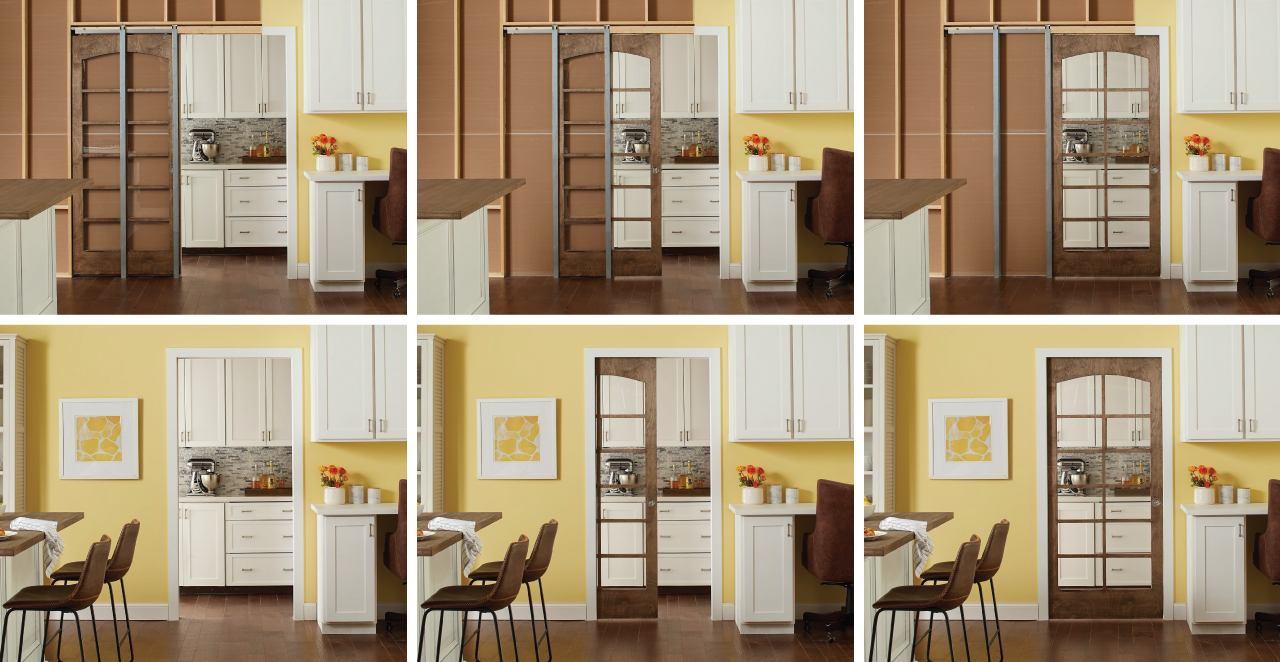

1500HD Series Installation Example

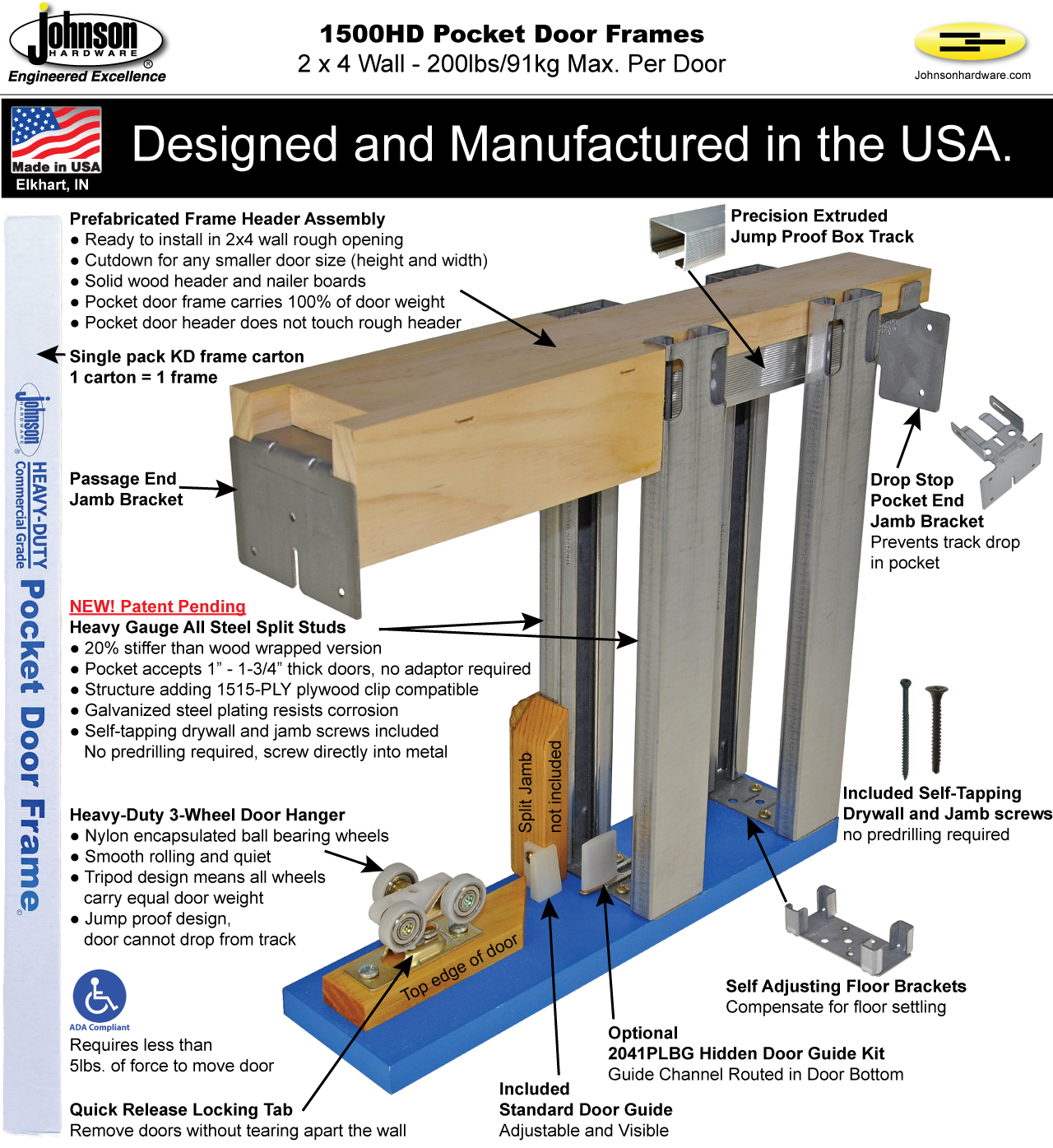

1500HD Exceptional Features

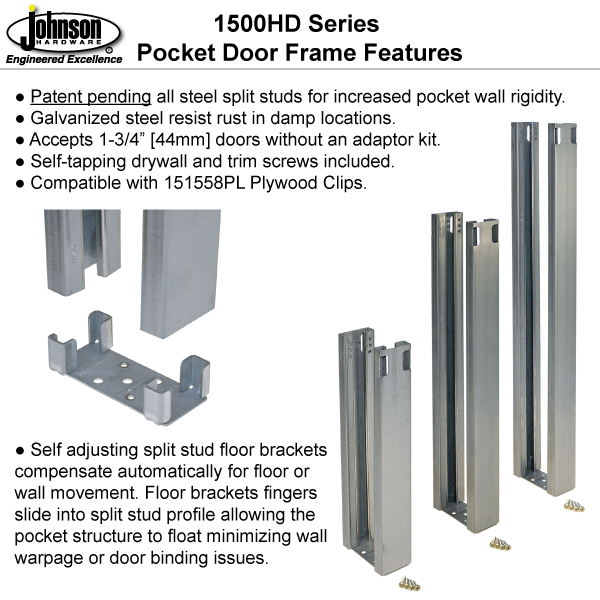

All Steel Split Studs

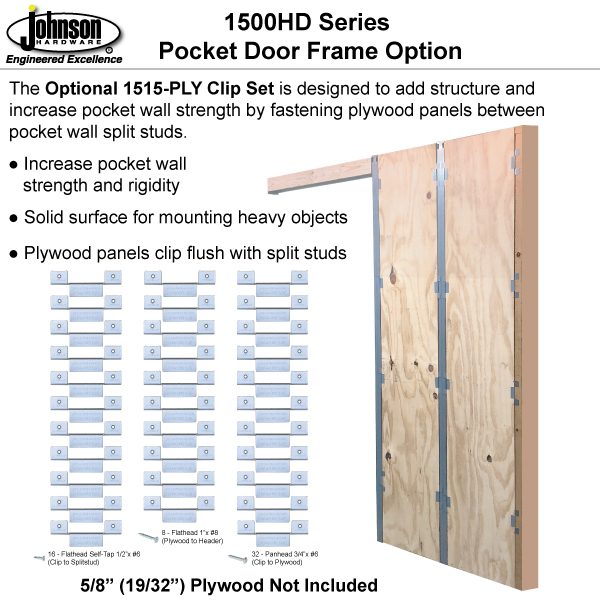

Pocket Wall Strengthening

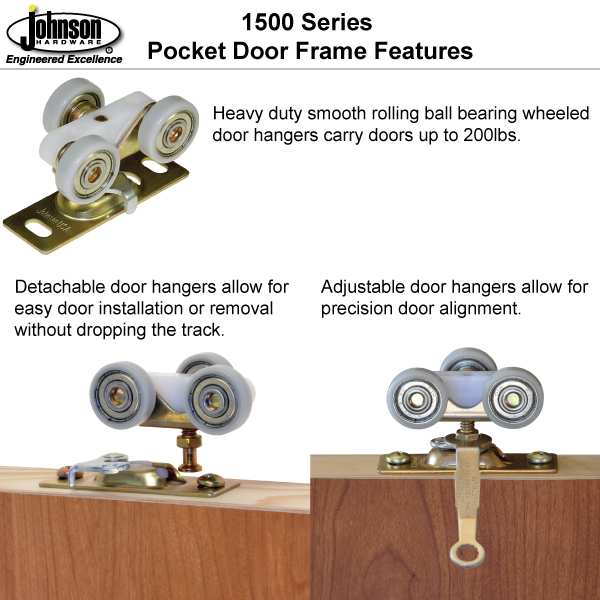

Heavy Duty Door Hangers

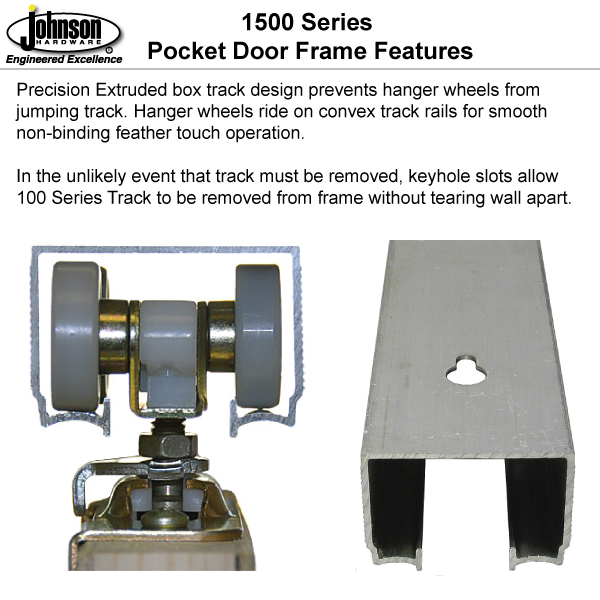

Jump Proof Box Track

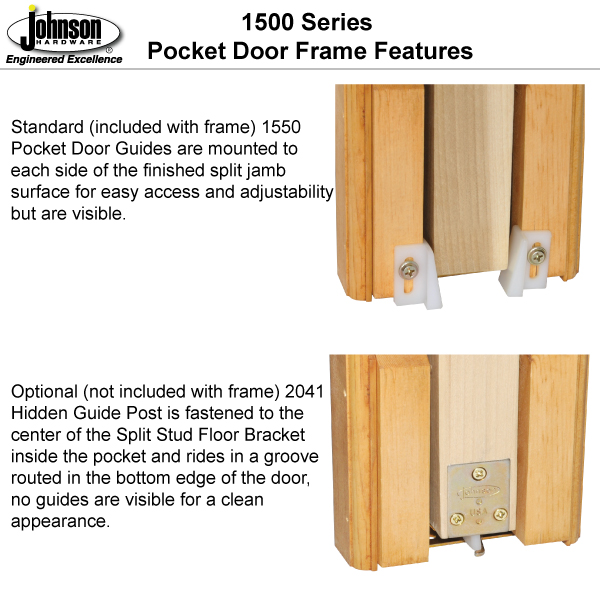

Pocket Door Guiding Options

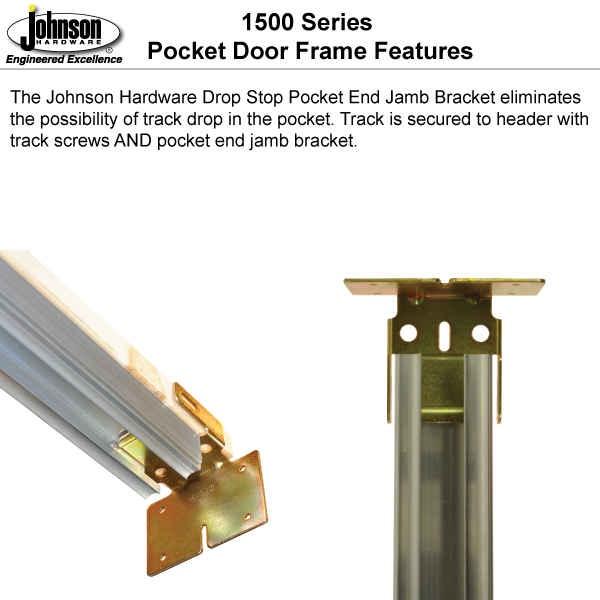

Drop Stop Jamb Bracket

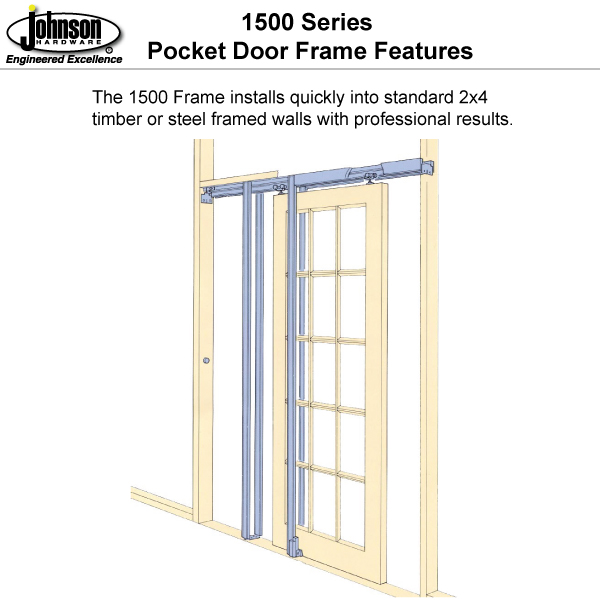

2 x 4 Stud Wall Installation

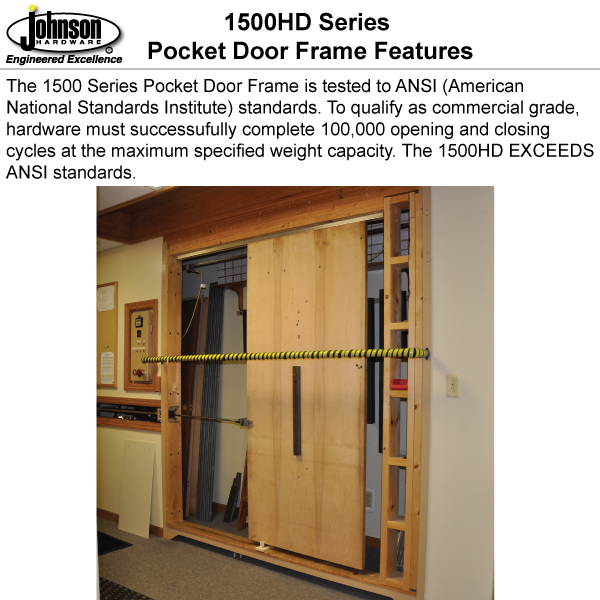

Tested Quality



1500HD Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500HD Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

The 1500HD Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 200lbs. Ball bearing hanger wheels provide feather-touch door operation making the 1500HD one of the smoothest rolling pocket door installations available. The 1500 is designed to be quickly installed into prepared 2 x 4 timber frame stud walls or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 1500 Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accommodate custom size doors.



1500HD Series Installation Example



1500HD Exceptional Features

All Steel Split Studs

Pocket Wall Strengthening

Heavy Duty Door Hangers

Jump Proof Box Track

Pocket Door Guiding Options

Drop Stop Jamb Bracket

2 x 4 Stud Wall Installation

Tested Quality



1500HD Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500HD Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

1500HD Series Installation Instructions

1500 Series Video

Frame Installation

Converging Door

1500HD Series Quick Reference Drawings

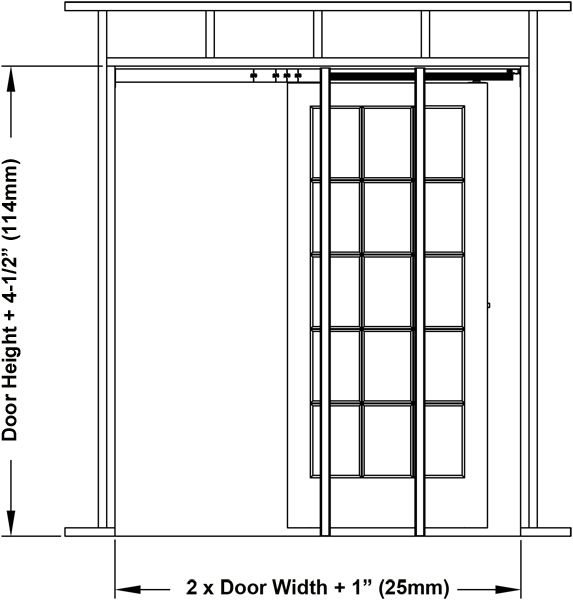

Single Door Rough-in

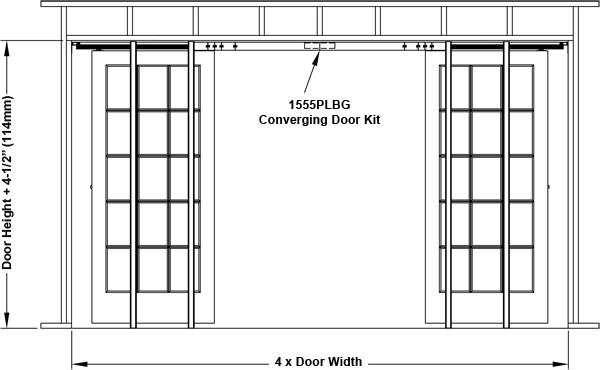

Converging Door Rough-in

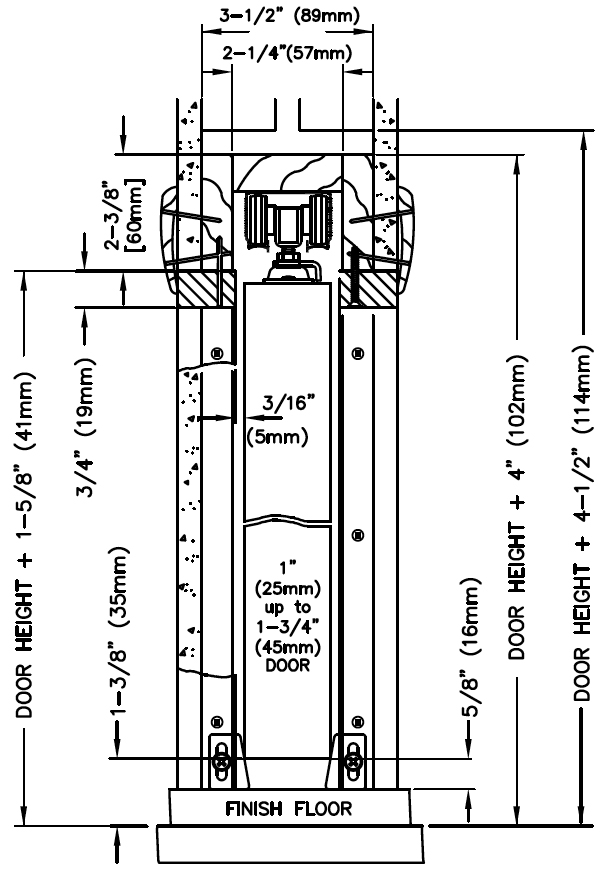

Opening Height Dimensions

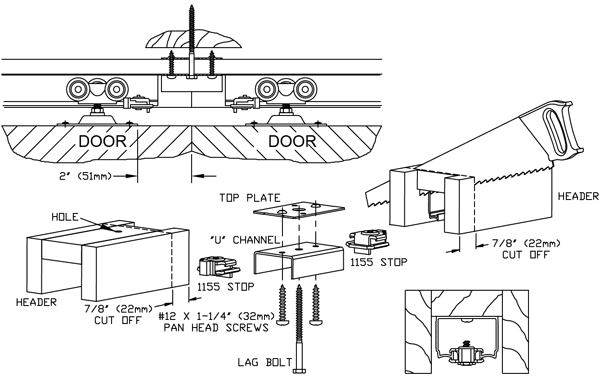

1555PPK3 Converging Door Kit

1500HD Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500HD Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Pocket Door Video

Frame Installation

Converging Door

Pocket Door Lock

Track Cutdown

1500HD Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500HD Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 96" (8'-0") [2438mm]
Door Thickness 1" [25mm] to 1-3/4" [44mm]
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Track Profile Box Track
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152068HD View Contents

24" (2'- 0")
[609mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$164.69
152468HD View Contents

28" (2'- 4")
[711mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$169.49
152668HD View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$172.22
152868HD View Contents

32" (2'- 8")
[813mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$174.20
153068HD View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$181.94
153668HD View Contents

42" (3'- 6")
[1067mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$274.29
154068HD View Contents

48" (4'- 0")
[1219mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$262.88

Oversized item must be shipped freight. Freight orders over $600 ship free!

84" (7'-0") [2134mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152070HD View Contents

24" (2'- 0")
[609mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$169.94
152470HD View Contents

28" (2'- 4")
[711mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$174.89
152670HD View Contents

30" (2'- 6")
[762mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$177.70
152870HD View Contents

32" (2'- 8")
[813mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$179.73
153070HD View Contents

36" (3'- 0")
[914mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$184.72
153670HD View Contents

42" (3'- 6")
[1067mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$297.30
154070HD View Contents

48" (4'- 0")
[1219mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$306.09

Oversized item must be shipped freight. Freight orders over $600 ship free!

96" (8'-0") [2438mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152080HD View Contents

24" (2'- 0")
[609mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$195.68
152480HD View Contents

28" (2'- 4")
[711mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$201.35
152680HD View Contents

30" (2'- 6")
[762mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$201.85
152880HD View Contents

32" (2'- 8")
[813mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$203.97
153080HD View Contents

36" (3'- 0")
[914mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$211.55
153680HD View Contents

42" (3'- 6")
[1067mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$331.75
154080HD View Contents

48" (4'- 0")
[1219mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

$341.43

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 96" (8'-0") [2438mm]
Door Thickness 1" [25mm] to 1-3/4" [44mm]
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Track Profile Box Track
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
