200FS Side Mounted Bi-Fold Door Hardware

  • 125lbs [57kg] Max Panel Weight Each

  • 48" [1219mm] Max Panel Width Each

  • 108" [2743mm] Max Panel Height

  • 1-3/8" [35mm], 1-3/4" [35mm], 2-1/4" [57mm] Panel Thickness
  • Side Mount Hanger Type

  • Commercial Grade Top Hung Bi-Fold Door Hardware

200FS Series Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations EXCEPT PANEL HINGES.

  • Hardware sets available for 3 door thickness only 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
  • Panel hinges NOT included, architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 200FS configurations possible by ordering 200FS components by the piece.

200FS Series Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations EXCEPT PANEL HINGES.

  • Hardware sets available for 3 door thickness only 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
  • Panel hinges NOT included, architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 200FS configurations possible by ordering 200FS components by the piece.

200FS Series Printed Instalation Instructions

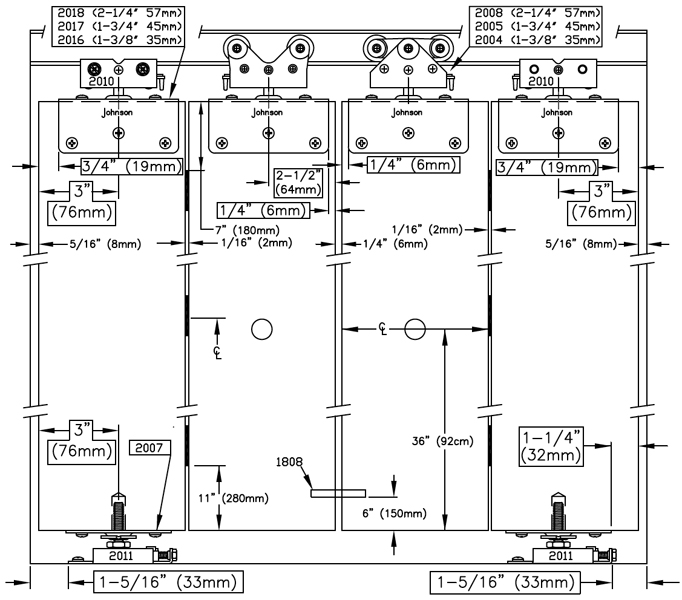

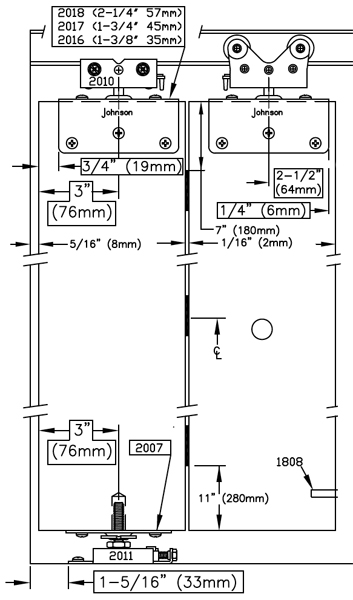

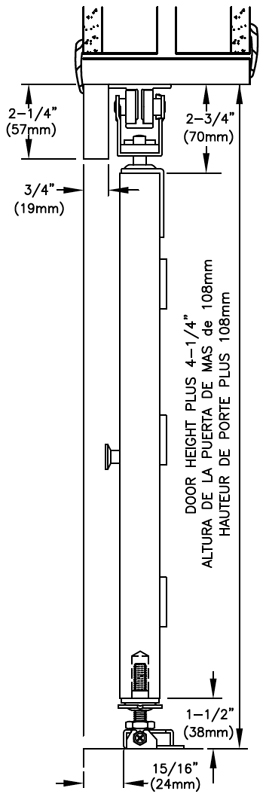

200FS Series Quick Reference Drawings

200FS Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations EXCEPT PANEL HINGES.
  • Hardware sets available for 3 door thickness only 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm].
  • Panel hinges NOT included, architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 200FS configurations possible by ordering 200FS components by the piece.
Products specifications
Max. Weight Per Panel 125 lbs. [57kg]
Application Interior Residential/Commercial
Panel Thickness 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

2-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Panel Thickness Price | Qty. | Order
20038482 View Contents

24" x 2 (2' - 0" x 2)
[610mm x 2]

48" (4' - 0")
[1219mm]

1-3/8" [35mm]

$84.71
20034482 View Contents

24" x 2 (2' - 0" x 2)
[610mm x 2]

48" (4' - 0")
[1219mm]

1-3/4" [44mm]

$84.71
20024482 View Contents

24" x 2 (2' - 0" x 2)
[610mm x 2]

48" (4' - 0")
[1219mm]

2-1/4" [57mm]

$84.71
20038602 View Contents

30" x 2 (2' - 6" x 2)
[762mm x 2]

60" (5' - 0")
[1524mm]

1-3/8" [35mm]

$91.53
20034602 View Contents

30" x 2 (2' - 6" x 2)
[762mm x 2]

60" (5' - 0")
[1524mm]

1-3/4" [44mm]

$91.53
20024602 View Contents

30" x 2 (2' - 6" x 2)
[762mm x 2]

60" (5' - 0")
[1524mm]

2-1/4" [57mm]

$91.53
20038722 View Contents

36" x 2 (3' - 0" x 2)
[914mm x 2]

72" (6' - 0")
[1829mm]

1-3/8" [35mm]

$103.49
20034722 View Contents

36" x 2 (3' - 0" x 2)
[914mm x 2]

72" (6' - 0")
[1829mm]

1-3/4" [44mm]

$103.49
20024722 View Contents

36" x 2 (3' - 0" x 2)
[914mm x 2]

72" (6' - 0")
[1829mm]

2-1/4" [57mm]

$103.49
20038962 View Contents

48" x 2 (4' - 0" x 2)
[1219mm x 2]

96” (8' - 0")
[2438mm]

1-3/8" [35mm]

$118.07
20034962 View Contents

48" x 2 (4' - 0" x 2)
[1219mm x 2]

96” (8' - 0")
[2438mm]

1-3/4" [44mm]

$118.07
20024962 View Contents

48" x 2 (4' - 0" x 2)
[1219mm x 2]

96” (8' - 0")
[2438mm]

2-1/4" [57mm]

$118.07

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

4-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Panel Thickness Price | Qty. | Order
20038484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

1-3/8" [35mm]

$139.81
20034484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

1-3/4" [44mm]

$139.81
20024484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

2-1/4" [57mm]

$139.81
20038604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

1-3/8" [35mm]

$146.63
20034604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

1-3/4" [44mm]

$146.63
20024604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

2-1/4" [57mm]

$146.63
20038724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

1-3/8" [35mm]

$152.76
20034724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

1-3/4" [44mm]

$152.76
20024724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

2-1/4" [57mm]

$152.76
20038964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

1-3/8" [35mm]

$165.24
20034964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

1-3/4" [44mm]

$165.24
20024964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

2-1/4" [57mm]

$165.24

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Panel 125 lbs. [57kg]
Application Interior Residential/Commercial
Panel Thickness 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
