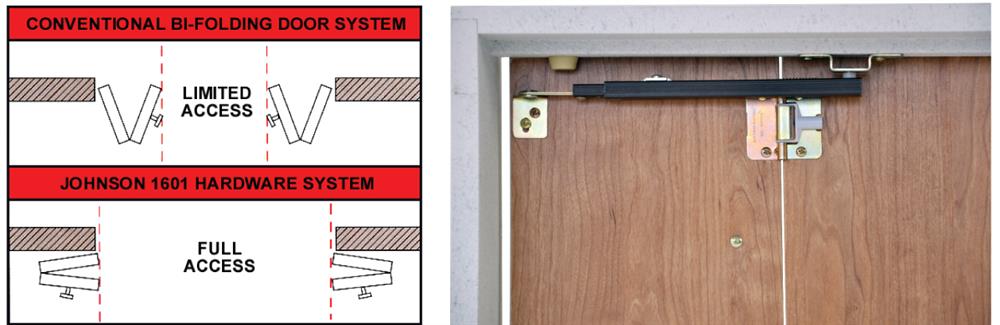

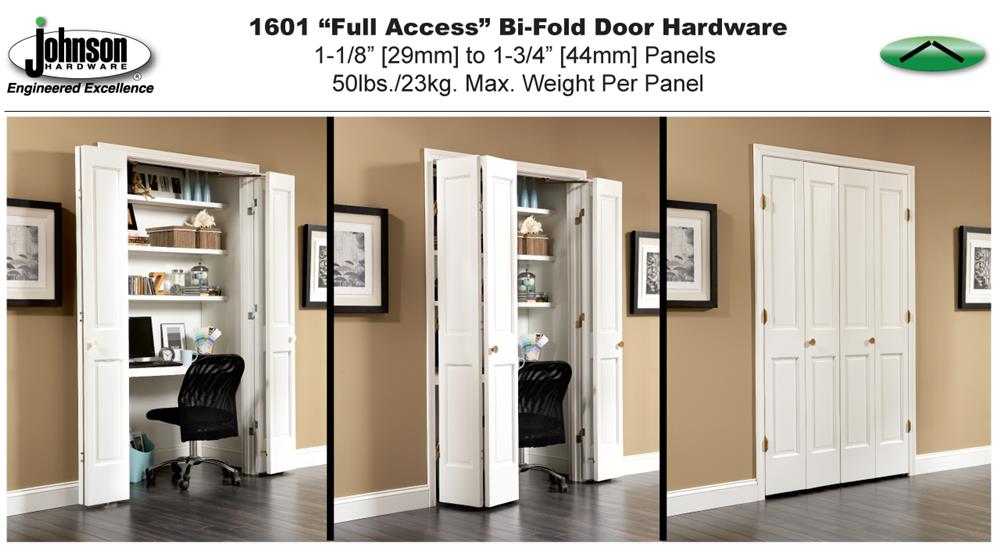

1601 "Full Access" Bi-Fold Door Hardware

  • 50lbs [23kg] Mortise Hinge Max Panel Weight Each

  • 30lbs [14kg] Non-Mortise Hinge Max Panel Weight Each

  • 24" [610mm] Max Panel Width Each

  • 96" [2438mm] Max Panel Height

  • 1-1/8" [29mm] to 1-3/4" [44mm] Panel Thickness
  • Residential Grade Full Access Bi-fold Hardware

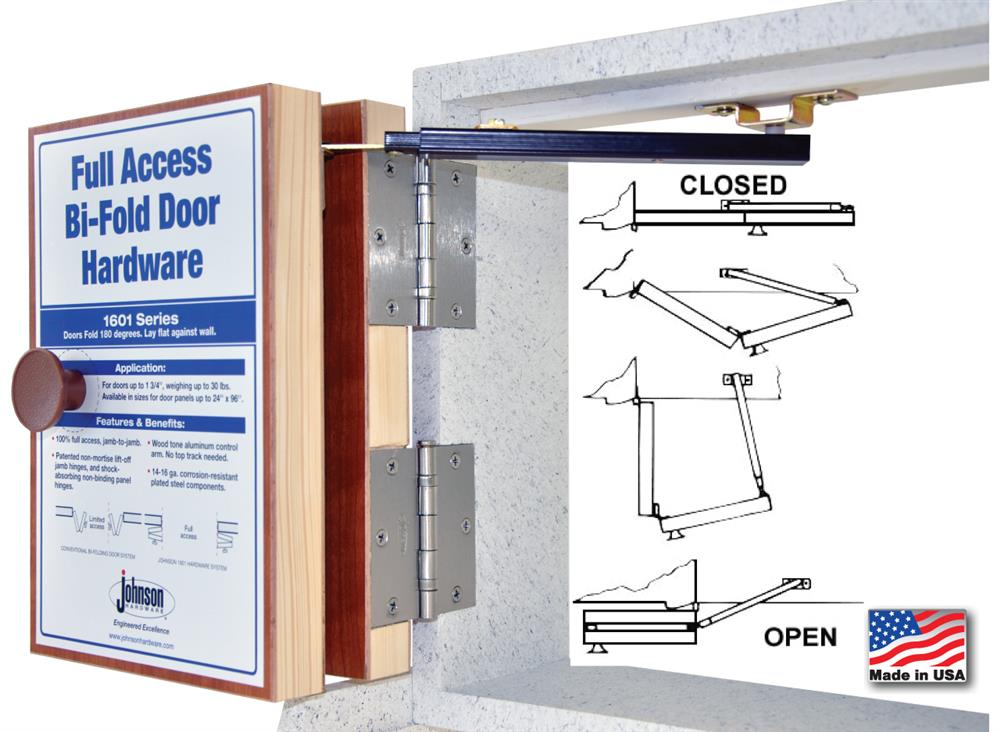

1601 Series Bi-Folding Door Hardware

Select a hardware set part number that accommodates your panel widths and panel weight.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • 1601 hardware sets will accommodate 1-1/8" [29mm] to 1-3/4" [44mm] door thicknesses.
  • Architectural grade ball bearing mortise panel hinges are available in Bright Brass, Antique Brass, Satin Nickel and Oil Rubbed Bronze finishes.
  • Custom 1601 configurations possible by ordering 1601 components by the piece.

1601 Series Bi-Folding Door Hardware

Select a hardware set part number that accommodates your panel widths and panel weight.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • 1601 hardware sets will accommodate 1-1/8" [29mm] to 1-3/4" [44mm] door thicknesses.
  • Architectural grade ball bearing mortise panel hinges are available in Bright Brass, Antique Brass, Satin Nickel and Oil Rubbed Bronze finishes.
  • Custom 1601 configurations possible by ordering 1601 components by the piece.

1601 Series Printed Instalation Instructions

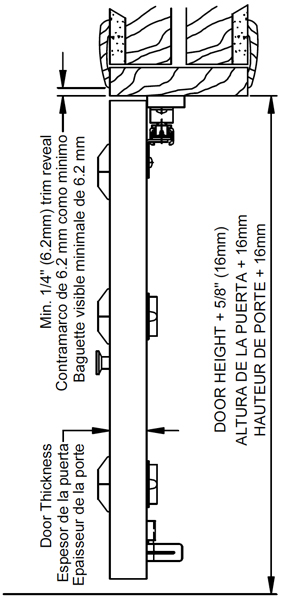

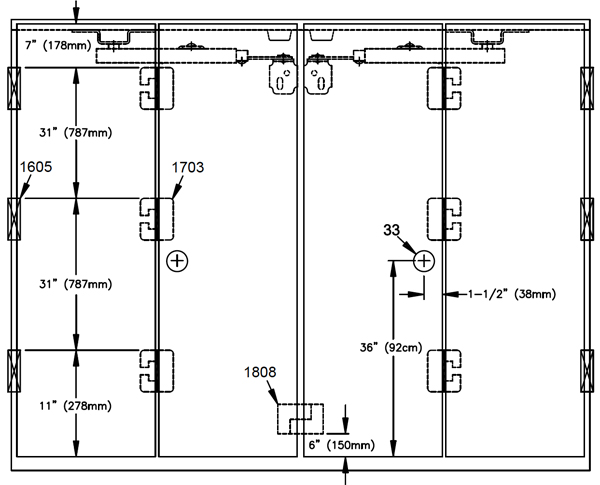

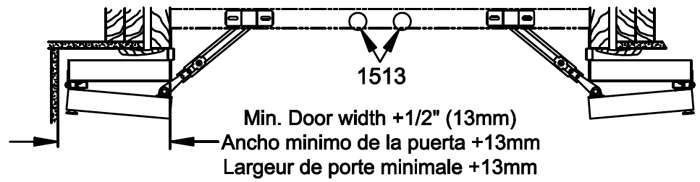

1601 Series Quick Reference Drawings

1601 Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
  • 1601 hardware sets will accommodate 1-1/8" [29mm] to 1-3/4" [44mm] door thicknesses.
  • Architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Custom 1601 configurations possible by ordering 1601 components by the piece.

1601 Series Video

1601 Operation

1703 Panel Hinge

1601 Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
  • 1601 hardware sets will accommodate 1-1/8" [29mm] to 1-3/4" [44mm] door thicknesses.
  • Architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Custom 1601 configurations possible by ordering 1601 components by the piece.
Products specifications
Max. Weight Per Panel 50lbs. [23kg] w/Mortise Hinge, 30lbs. [14kg] w/Non-Mortise Hinge
Application Interior Residential
Panel Thickness 1-1/8" [29mm] to 1-3/4" [44mm]
Steel Component Finish Zinc Trivalent Plated
Mortise Hinge Finish US3 Bright Brass, US5 Antique Brass, US10 Oil Rubbed Bronze, US15 Satin Nickel
Non-Mortise Hinge Finish Bright Zinc or Brass Tone
Steel Components 12-14 Gauge
Product Grade Residential
Country of Origin U.S.A.

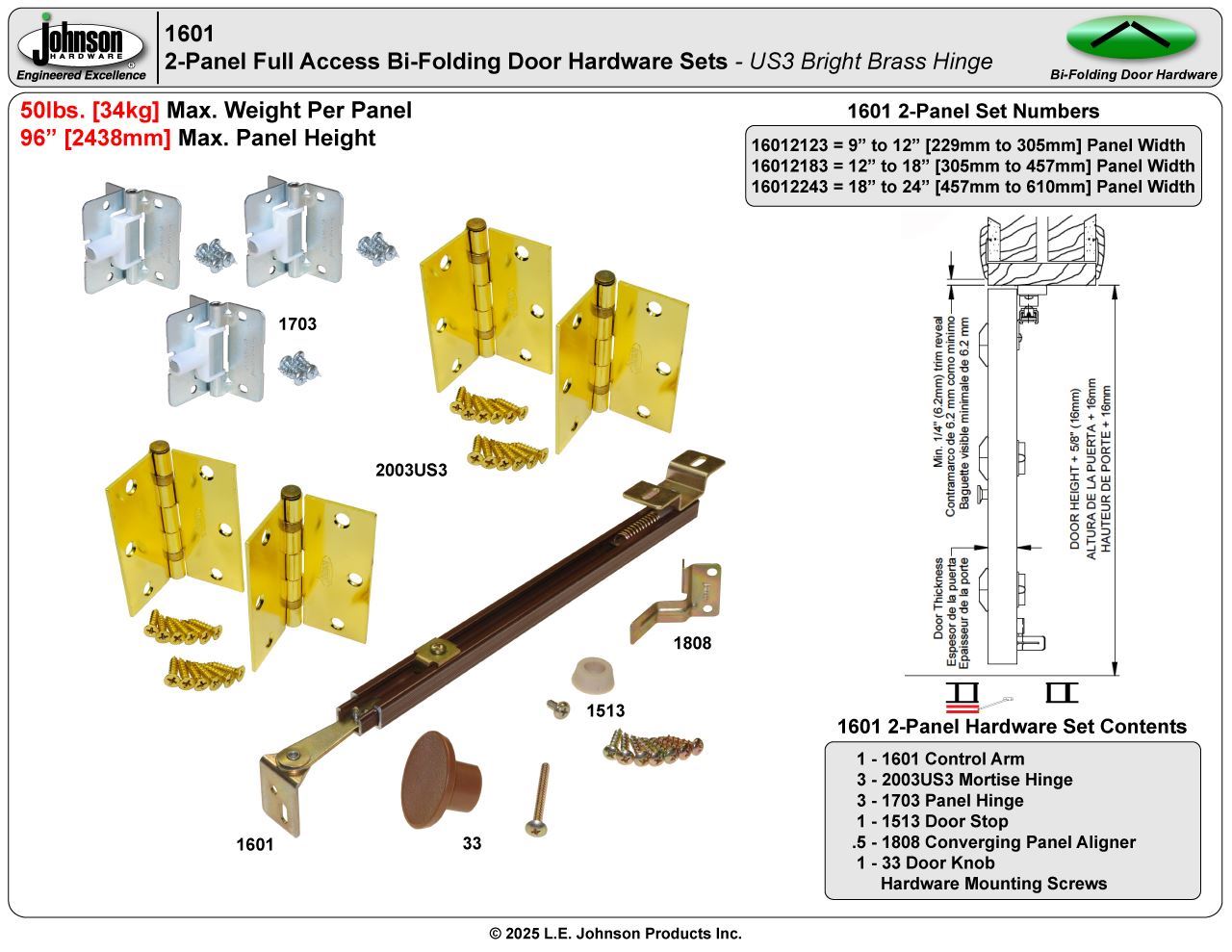

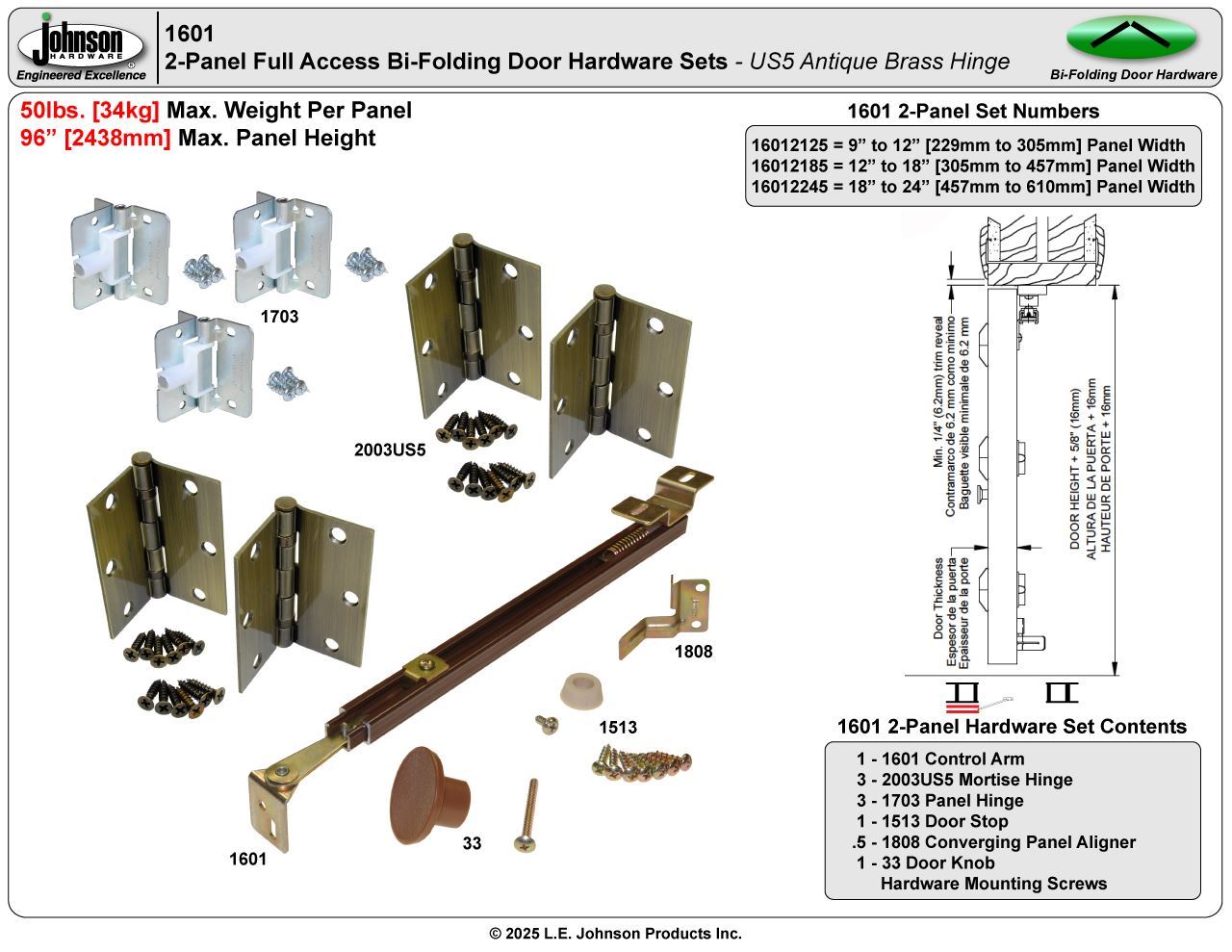

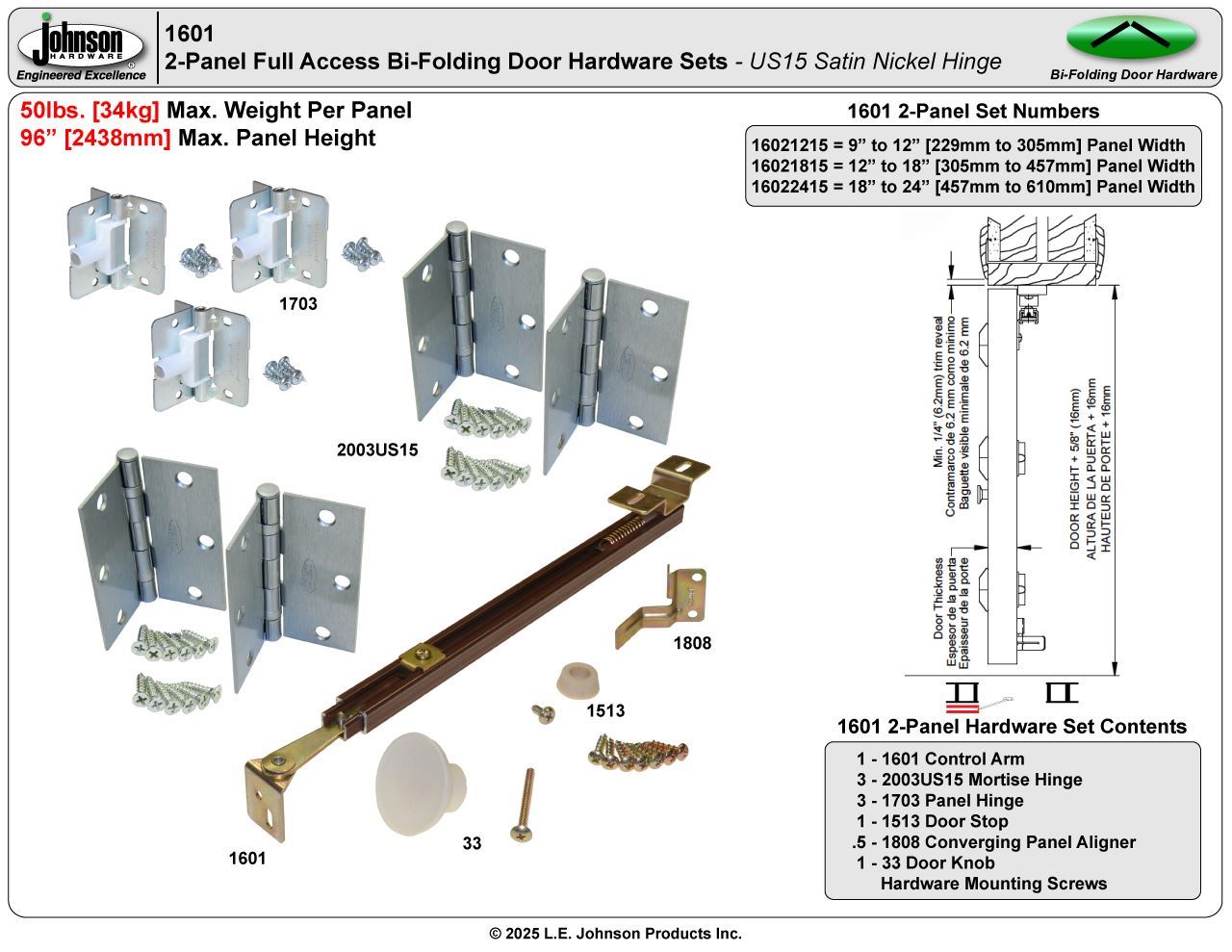

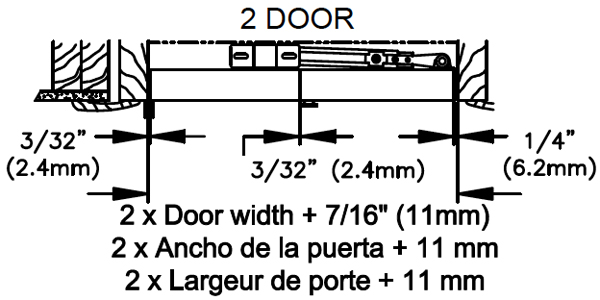

2-Panel 50lb. Mortise Hinge Hardware Sets

Part No. Description /Contents Panels Panel Width Opening Width Max. Weight Per Panel Price | Qty. | Order
16012123 View Contents

2-Panels

8-3/4" to 12" x 2
(229mm to 305mm x 2)

18" to 24"
(1' - 6" to 2' - 0")
457mm to 610mm

50 lbs. [23kg]
(US3 Bright Brass Mortise Hinge)

$50.30
16012125 View Contents

2-Panels

8-3/4" to 12" x 2
(229mm to 305mm x 2)

18" to 24"
(1' - 6" to 2' - 0")
457mm to 610mm

50 lbs. [23kg]
(US5 Antique Brass Mortise Hinge)

$50.30
16021215 View Contents

2-Panels

8-3/4" to 12" x 2
(229mm to 305mm x 2)

18" to 24"
(1' - 6" to 2' - 0")
457mm to 610mm

50 lbs. [23kg]
(US15 Satin Nickel Mortise Hinge)

$46.42
16012183 View Contents

2-Panels

12” to 18” x 2
(305mm to 457mm x 2)

24" to 36"
(2' - 0" to 3' - 0")
610mm to 914mm

50 lbs. [23kg]
(US3 Bright Brass Mortise Hinge)

$50.30
16012185 View Contents

2-Panels

12” to 18” x 2
(305mm to 457mm x 2)

24" to 36"
(2' - 0" to 3' - 0")
610mm to 914mm

50 lbs. [23kg]
(US5 Antique Brass Mortise Hinge)

$50.30
16021815 View Contents

2-Panels

12” to 18” x 2
(305mm to 457mm x 2)

24" to 36"
(2' - 0" to 3' - 0")
610mm to 914mm

50 lbs. [23kg]
(US15 Satin Nickel Mortise Hinge)

$46.62
16012243 View Contents

2-Panels

18” to 24” x 2
(457mm to 610mm x 2)

36" to 48"
(3' - 0" to 4' - 0")
914mm to 1219mm

50 lbs. [23kg]
(US3 Bright Brass Mortise Hinge)

$53.76
16012245 View Contents

2-Panels

18” to 24” x 2
(457mm to 610mm x 2)

36" to 48"
(3' - 0" to 4' - 0")
914mm to 1219mm

50 lbs. [23kg]
(US5 Antique Brass Mortise Hinge)

$53.76
16022415 View Contents

2-Panels

18” to 24” x 2
(457mm to 610mm x 2)

36" to 48"
(3' - 0" to 4' - 0")
914mm to 1219mm

50 lbs. [23kg]
(US15 Satin Nickel Mortise Hinge)

$50.06

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

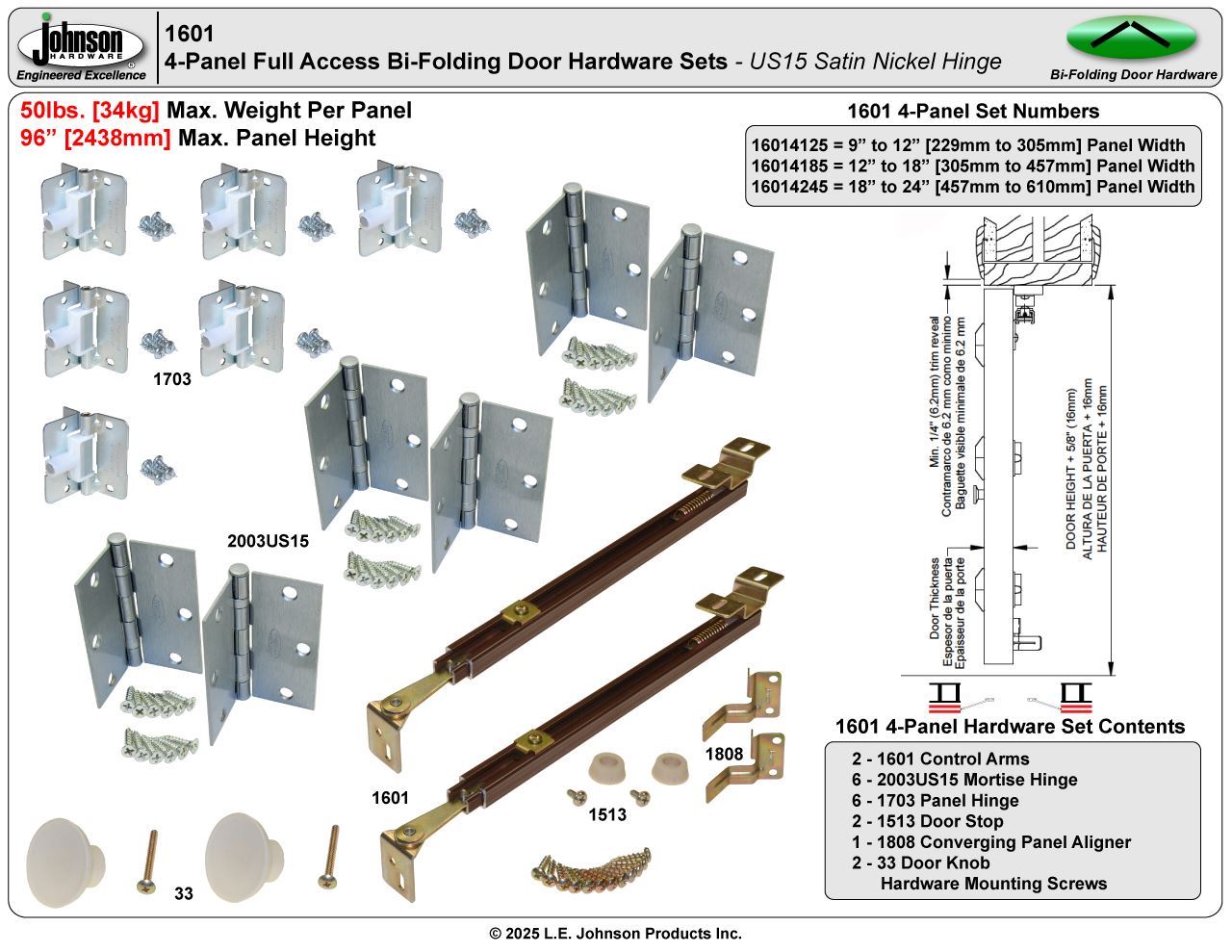

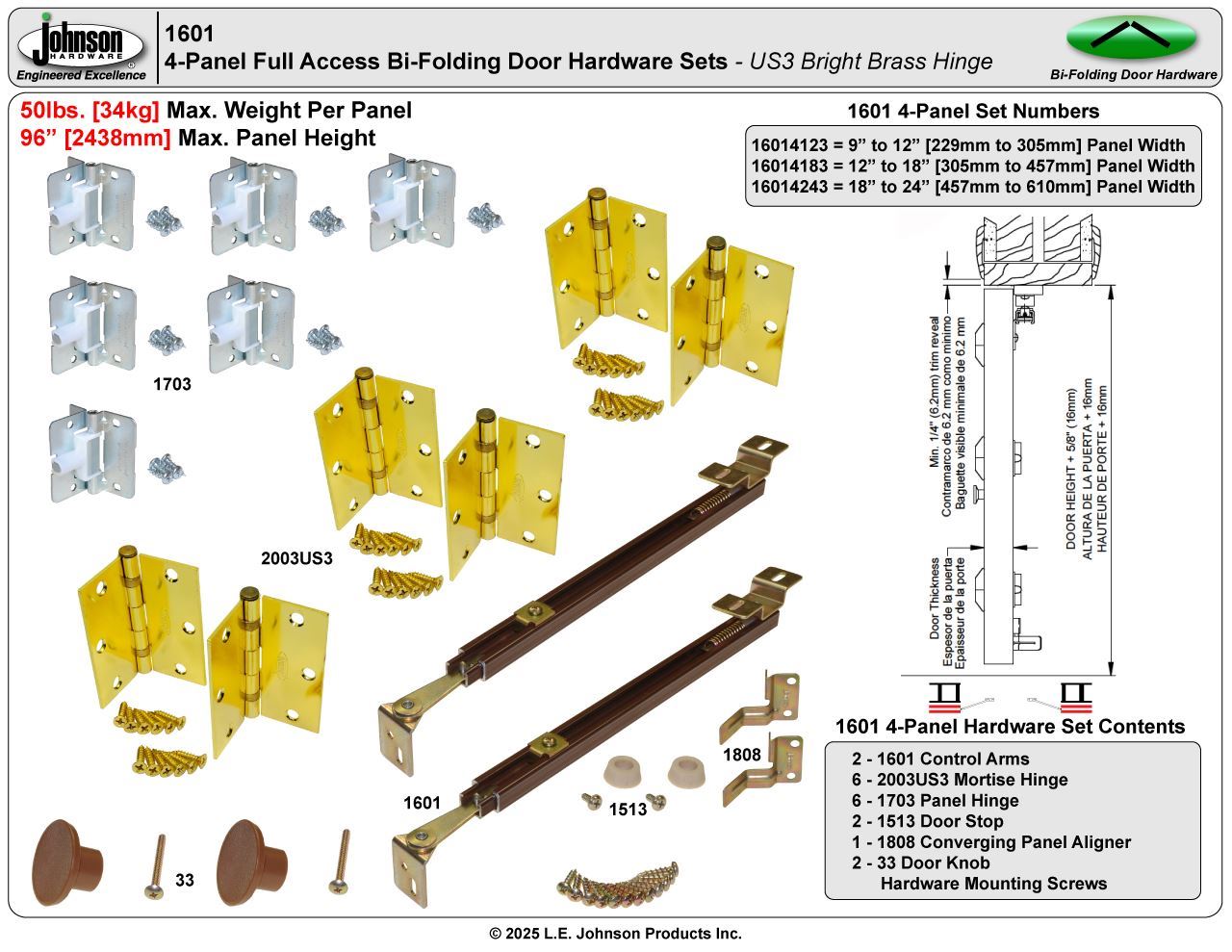

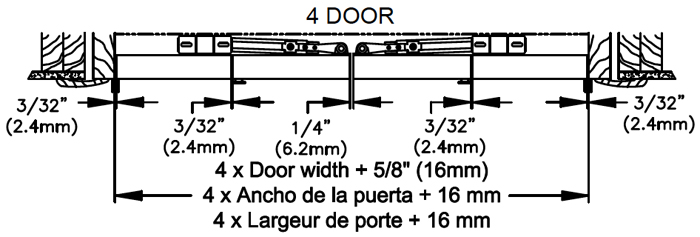

4-Panel 50lb. Mortise Hinge Hardware Sets

Part No. Description /Contents Panels Panel Width Opening Width Max. Weight Per Panel Price | Qty. | Order

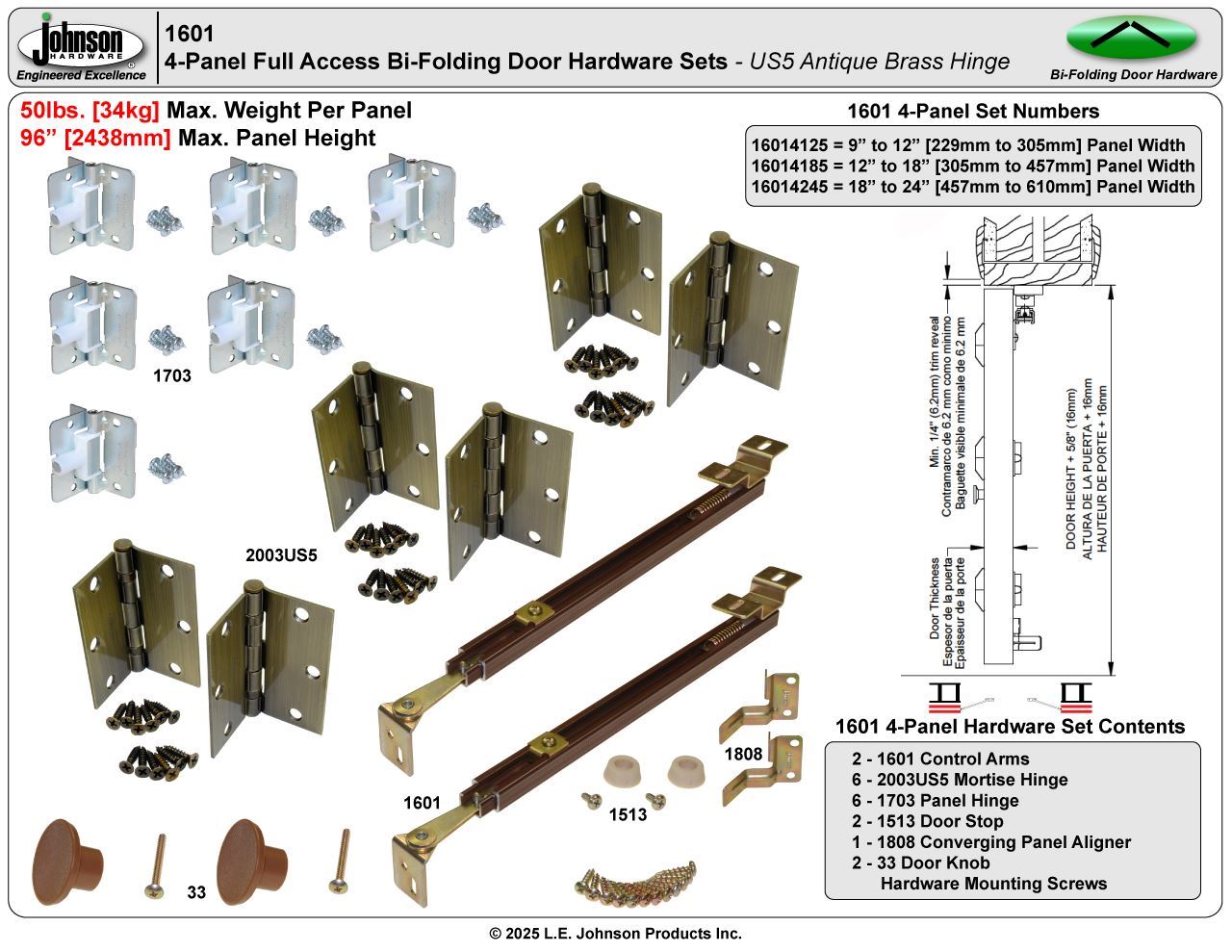

16014123 View Contents

4-Panels

8-3/4" to 12" x 4
(229mm to 305mm x 4)

36" to 48"
(3' - 0" to 4' - 0")
914mm to 1219mm

50 lbs. [23kg]
(US3 Bright Brass Mortise Hinge)

$90.48
16014125 View Contents

4-Panels

8-3/4" to 12" x 4
(229mm to 305mm x 4)

36" to 48"
(3' - 0" to 4' - 0")
914mm to 1219mm

50 lbs. [23kg]
(US5 Antique Brass Mortise Hinge)

$90.48
16041215 View Contents

4-Panels

8-3/4" to 12" x 4
(229mm to 305mm x 4)

36" to 48"
(3' - 0" to 4' - 0")
914mm to 1219mm

50 lbs. [23kg]
(US15 Satin Nickel Mortise Hinge)

$83.12
16014183 View Contents

4-Panels

12” to 18” x 4
(305mm to 457mm x 4)

48" to 72"
(4' - 0" to 6' - 0")
1219mm to 1829mm

50 lbs. [23kg]
(US3 Bright Brass Mortise Hinge)

$90.48
16014185 View Contents

4-Panels

12” to 18” x 4
(305mm to 457mm x 4)

48" to 72"
(4' - 0" to 6' - 0")
1219mm to 1829mm

50 lbs. [23kg]
(US5 Antique Brass Mortise Hinge)

$90.48
16041815 View Contents

4-Panels

12” to 18” x 4
(305mm to 457mm x 4)

48" to 72"
(4' - 0" to 6' - 0")
1219mm to 1829mm

50 lbs. [23kg]
(US15 Satin Nickel Mortise Hinge)

$83.12
16014243 View Contents

4-Panels

18” to 24” x 4
(457mm to 610mm x 4)

72" to 96"
(6' - 0" to 8' - 0")
1829mm to 2438mm

50 lbs. [23kg]
(US3 Bright Brass Mortise Hinge)

$97.38
16014245 View Contents

4-Panels

18” to 24” x 4
(457mm to 610mm x 4)

72" to 96"
(6' - 0" to 8' - 0")
1829mm to 2438mm

50 lbs. [23kg]
(US5 Antique Brass Mortise Hinge)

$97.38
16042415 View Contents

4-Panels

18” to 24” x 4
(457mm to 610mm x 4)

72" to 96"
(6' - 0" to 8' - 0")
1829mm to 2438mm

50 lbs. [23kg]
(US15 Satin Nickel Mortise Hinge)

$90.02

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

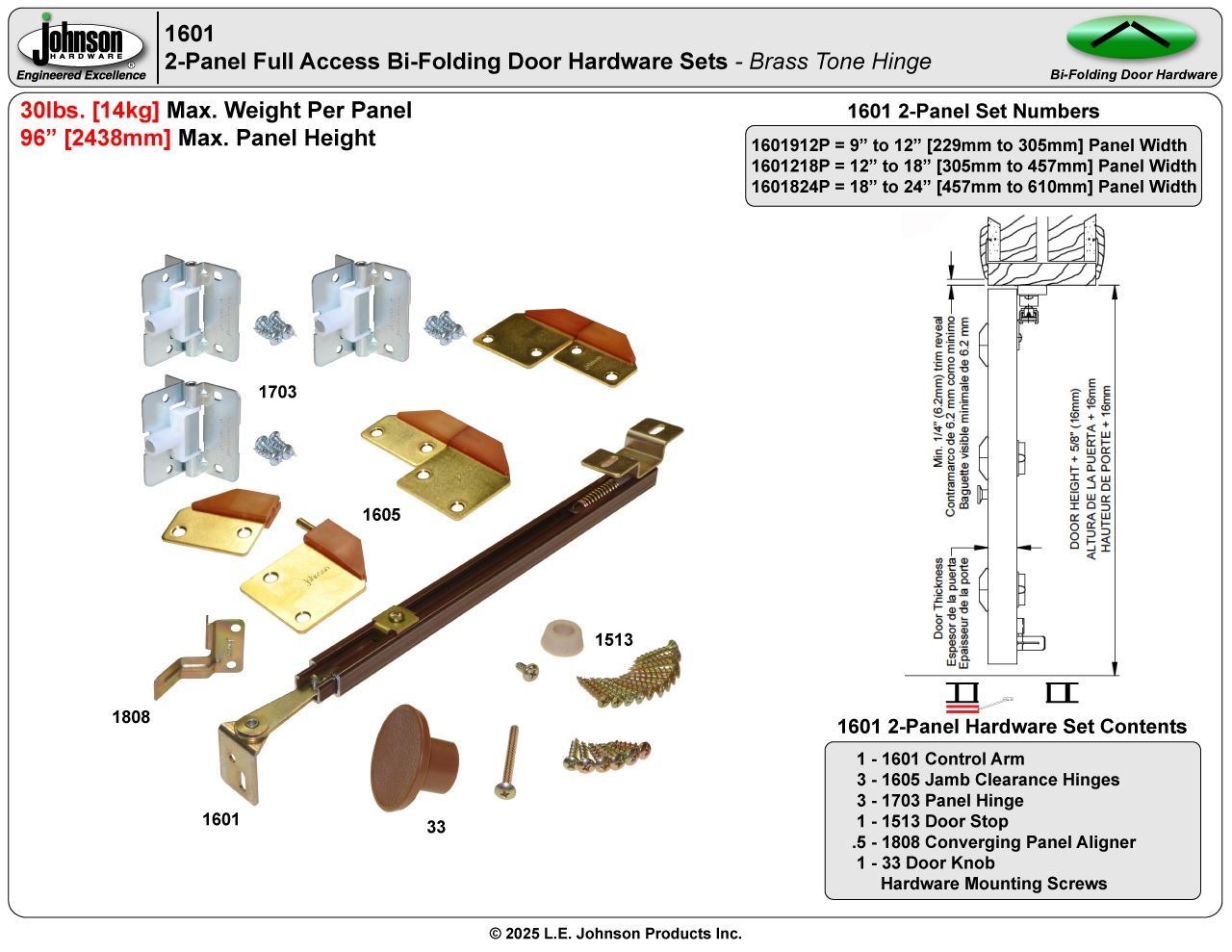

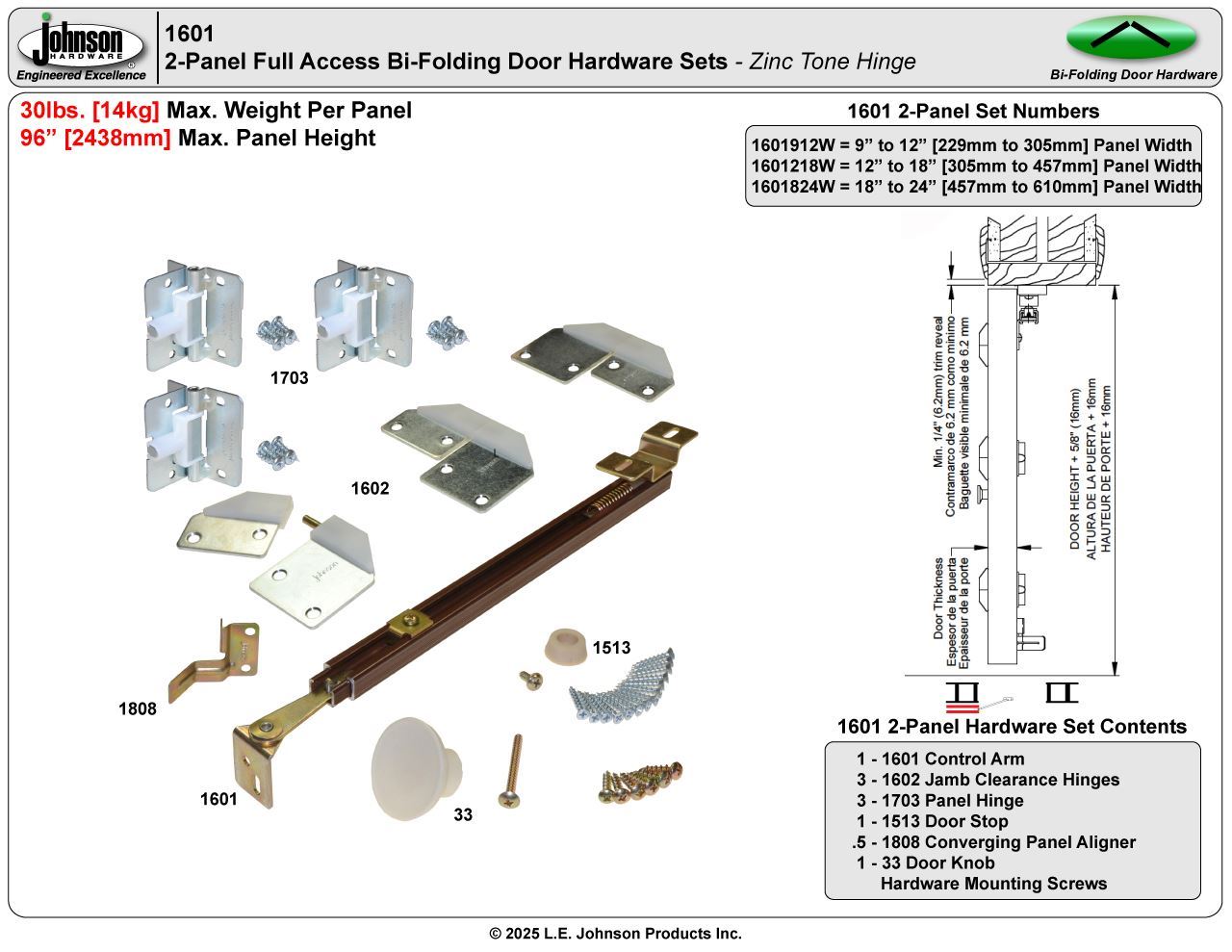

2-Panel 30lb. Non-Mortise Hinge Hardware Sets

Part No. Description /Contents Panels Panel Width Opening Width Max. Weight Per Panel Price | Qty. | Order
1601912P View Contents

2-Panels

8-3/4" to 12" x 2
(229mm to 305mm x 2)

18" to 24"
(1' - 6" to 2' - 0")
457mm to 610mm

30 lbs. [14kg]
(Brass Tone Non-Mortise Hinge)

$31.32
1601912W View Contents

2-Panels

8-3/4" to 12" x 2
(229mm to 305mm x 2)

18" to 24"
(1' - 6" to 2' - 0")
457mm to 610mm

30 lbs. [14kg]
(Zinc Tone Non-Mortise Hinge)

$31.32
1601218P View Contents

2-Panels

12” to 18” x 2
(305mm to 457mm x 2)

24" to 36"
(2' - 0" to 3' - 0")
610mm to 914mm

30 lbs. [14kg]
(Brass Tone Non-Mortise Hinge)

$31.32
1601218W View Contents

2-Panels

12” to 18” x 2
(305mm to 457mm x 2)

24" to 36"
(2' - 0" to 3' - 0")
610mm to 914mm

30 lbs. [14kg]
(Zinc Tone Non-Mortise Hinge)

$31.32
1601824P View Contents

2-Panels

18” to 24” x 2
(457mm to 610mm x 2)

36" to 48"
(3' - 0" to 4' - 0")
914mm to 1219mm

30 lbs. [14kg]
(Brass Tone Non-Mortise Hinge)

$38.69
1601824W View Contents

2-Panels

18” to 24” x 2
(457mm to 610mm x 2)

36" to 48"
(3' - 0" to 4' - 0")
914mm to 1219mm

30 lbs. [14kg]
(Zinc Tone Non-Mortise Hinge)

$38.69

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

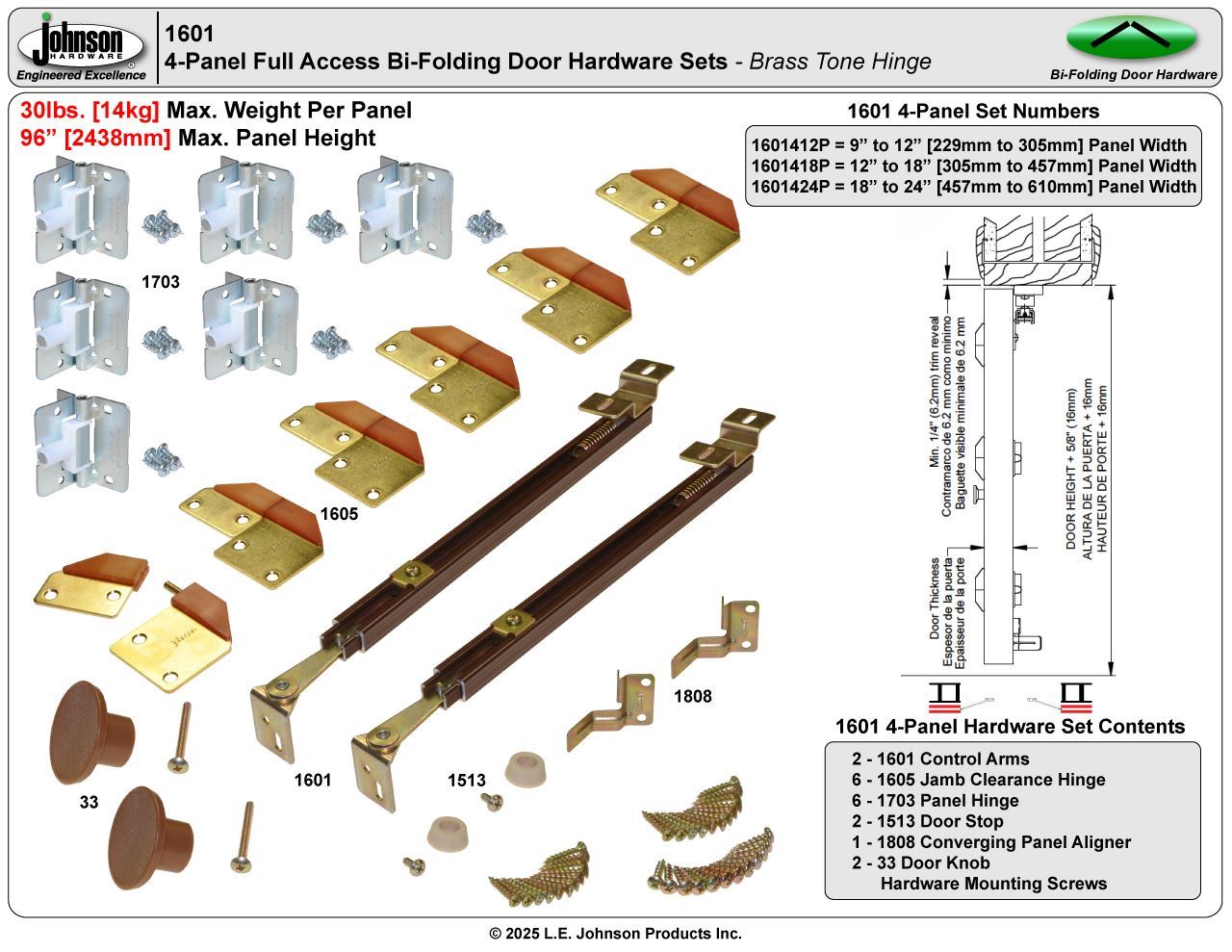

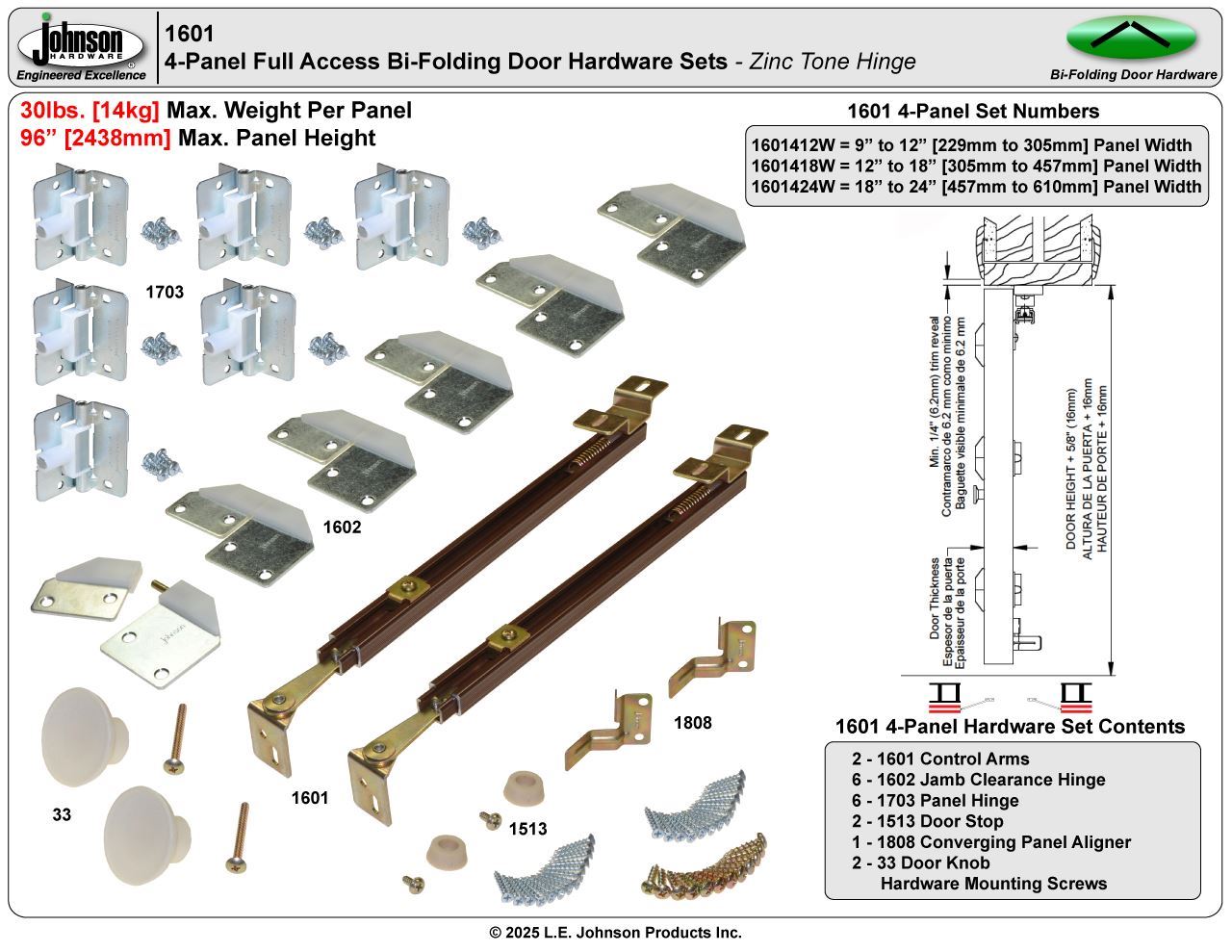

4-Panel 30lb. Non-Mortise Hinge Hardware Sets

Part No. Description /Contents Panels Panel Width Opening Width Max. Weight Per Panel Price | Qty. | Order
1601412P View Contents

4-Panels

8-3/4" to 12" x 4
(229mm to 305mm x 4)

36" to 48"
(3' - 0" to 4' - 0")
914mm to 1219mm

30 lbs. [14kg]
(Brass Tone Non-Mortise Hinge)

$62.64
1601412W View Contents

4-Panels

8-3/4" to 12" x 4
(229mm to 305mm x 4)

36" to 48"
(3' - 0" to 4' - 0")
914mm to 1219mm

30 lbs. [14kg]
(Zinc Tone Non-Mortise Hinge)

$62.64
1601418P View Contents

4-Panels

12” to 18” x 4
(305mm to 457mm x 4)

48" to 72"
(4' - 0" to 6' - 0")
1219mm to 1829mm

30 lbs. [14kg]
(Brass Tone Non-Mortise Hinge)

$62.64
1601418W View Contents

4-Panels

12” to 18” x 4
(305mm to 457mm x 4)

48" to 72"
(4' - 0" to 6' - 0")
1219mm to 1829mm

30 lbs. [14kg]
(Zinc Tone Non-Mortise Hinge)

$62.64
1601424P View Contents

4-Panels

18” to 24” x 4
(457mm to 610mm x 4)

72" to 96"
(6' - 0" to 8' - 0")
1829mm to 2438mm

30 lbs. [14kg]
(Brass Tone Non-Mortise Hinge)

$77.38
1601424W View Contents

4-Panels

18” to 24” x 4
(457mm to 610mm x 4)

72" to 96"
(6' - 0" to 8' - 0")
1829mm to 2438mm

30 lbs. [14kg]
(Zinc Tone Non-Mortise Hinge)

$77.38

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Panel 50lbs. [23kg] w/Mortise Hinge, 30lbs. [14kg] w/Non-Mortise Hinge
Application Interior Residential
Panel Thickness 1-1/8" [29mm] to 1-3/4" [44mm]
Steel Component Finish Zinc Trivalent Plated
Mortise Hinge Finish US3 Bright Brass, US5 Antique Brass, US10 Oil Rubbed Bronze, US15 Satin Nickel
Non-Mortise Hinge Finish Bright Zinc or Brass Tone
Steel Components 12-14 Gauge
Product Grade Residential
Country of Origin U.S.A.
