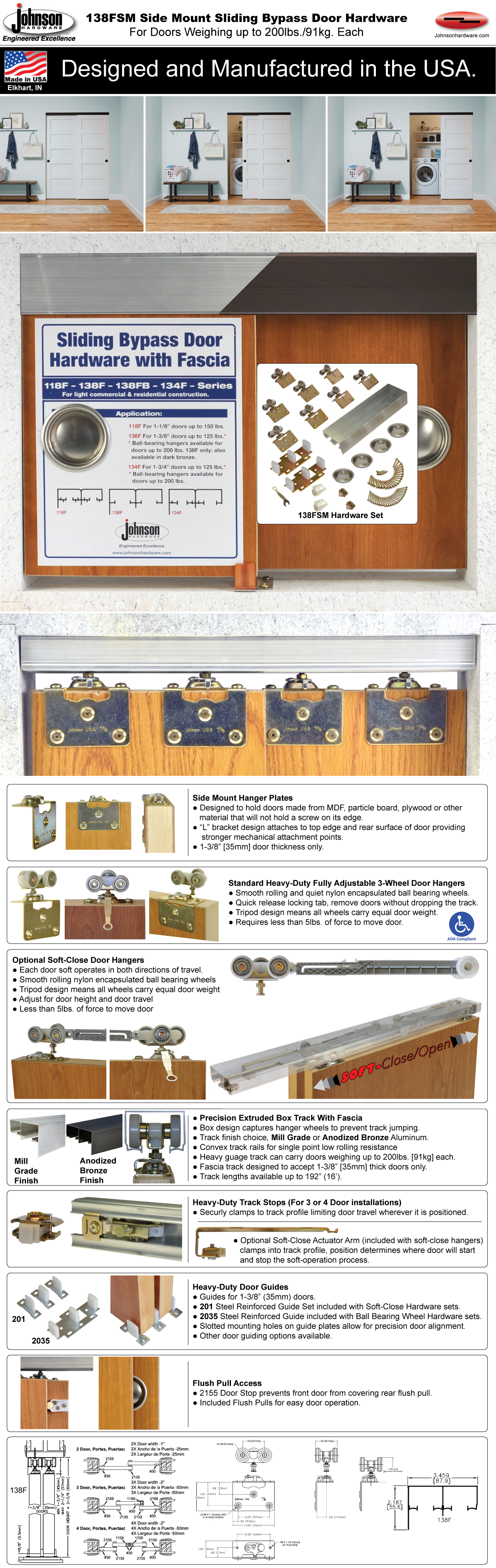

138FSM Side Mount Sliding Bypass Door Hardware

  • 200lbs [91kg] Max Weight Per Door

  • 1-3/8" [35mm] Door Thickness
  • Side Mount Hanger Type

  • Single Extrusion Twin Box Rail Fascia Track Type

  • Anodized Bronze or Mill Track Finish

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • *Soft-Close/Open Door Operation Available
  • *165lbs [75kg] Soft Operation Max Weight per Door

  • 138FSM Installation Instructions

The 138FSM is commercial grade sliding by-pass door hardware for 1-3/8" [35mm] thick doors. The 138FSM features side mount hanger plates designed to hold doors made from MDF, partical board, plywood or other material that will not hold a screw on edge. Extruded aluminum fascia track features box design that captures wheels to eliminate track jump. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. 3-wheel "tripod" door hanger design ensure all wheels carry equal door weight. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.

138FSM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • The 138FSM is compatible with 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • 24" 2/0 Min. Door Width for Soft-Open/Close Hardware Sets.
  • Custom 138FSM configurations possible by ordering 138FSM components by the piece.

The 138FSM is commercial grade sliding by-pass door hardware for 1-3/8" [35mm] thick doors. The 138FSM features side mount hanger plates designed to hold doors made from MDF, partical board, plywood or other material that will not hold a screw on edge. Extruded aluminum fascia track features box design that captures wheels to eliminate track jump. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. 3-wheel "tripod" door hanger design ensure all wheels carry equal door weight. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.

138FSM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • The 138FSM is compatible with 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • 24" 2/0 Min. Door Width for Soft-Open/Close Hardware Sets.
  • Custom 138FSM configurations possible by ordering 138FSM components by the piece.

138FSM Printed Installation Instructions

138FSM Quick Reference Drawings

138FSM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 138FSM is compatible with 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • 24" 2/0 Min. Door Width for Soft-Open/Close Hardware Sets.
  • Custom 138FSM configurations possible by ordering 138FSM components by the piece.
Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm]
Series Track 138F
Track Finish Mill Grade Aluminum or Anodized Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

Soft-Open/Close Side Mount - Bronze Track Hardware Sets

Part No. Description /Contents Doors Door Thickness Max. Door Width Track Length Price | Qty. | Order
13848SSB View Contents

2 - Doors

1-3/8" [35mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

$303.95
13860SSB View Contents

2 - Doors

1-3/8" [35mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

$320.45
13872SSB View Contents

2 - Doors

1-3/8" [35mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

$332.52
13896SSB View Contents

4 - Doors

1-3/8" [35mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

$602.45

Oversized item must be shipped freight. Freight orders over $600 ship free!

Soft-Open/Close Side Mount - Mill Track Hardware Sets

Part No. Description /Contents Doors Door Thickness Max. Door Width Track Length Price | Qty. | Order
138S482S View Contents

2 - Doors

1-3/8" [35mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

$277.67
138S602S View Contents

2 - Doors

1-3/8" [35mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

$286.55
138S722S View Contents

2 - Doors

1-3/8" [35mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

$295.40
138S964S View Contents

4 - Doors

1-3/8" [35mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

$550.63

Oversized item must be shipped freight. Freight orders over $600 ship free!

Standard Operation Side Mount - Bronze Track Hardware Sets

Part No. Description /Contents Doors Door Thickness Max. Door Width Track Length Price | Qty. | Order
138S482B View Contents

2 - Doors

1-3/8" [35mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

$146.11
138S602B View Contents

2 - Doors

1-3/8" [35mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

$162.60
138S722B View Contents

2 - Doors

1-3/8" [35mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

$174.68
138S964B View Contents

4 - Doors

1-3/8" [35mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

$292.44

Oversized item must be shipped freight. Freight orders over $600 ship free!

Standard Operation Side Mount - Mill Track Hardware Sets

Part No. Description /Contents Doors Door Thickness Max. Door Width Track Length Price | Qty. | Order
138FS482 View Contents

2 - Doors

1-3/8" [35mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

$119.83
138FS602 View Contents

2 - Doors

1-3/8" [35mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

$128.70
138FS722 View Contents

2 - Doors

1-3/8" [35mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

$137.55
138FS964 View Contents

4 - Doors

1-3/8" [35mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

$240.62

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm]
Series Track 138F
Track Finish Mill Grade Aluminum or Anodized Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
