111SD Sliding Bypass Door Hardware

  • 150lbs [68kg] Max Weight Per Door

  • 3/4" [19mm] Min Door Thickness
  • Top Mount Hanger Type

  • Independent Box Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • 111SD Installation Instructions

The 111SD is a highly adaptable sliding door hardware set designed for residential and light commercial sliding door applications. The 111SD can be ordered in configured hardware sets to fit most standard door sizes and opening widths or by the piece for custom installations.

111SD Exceptional Features

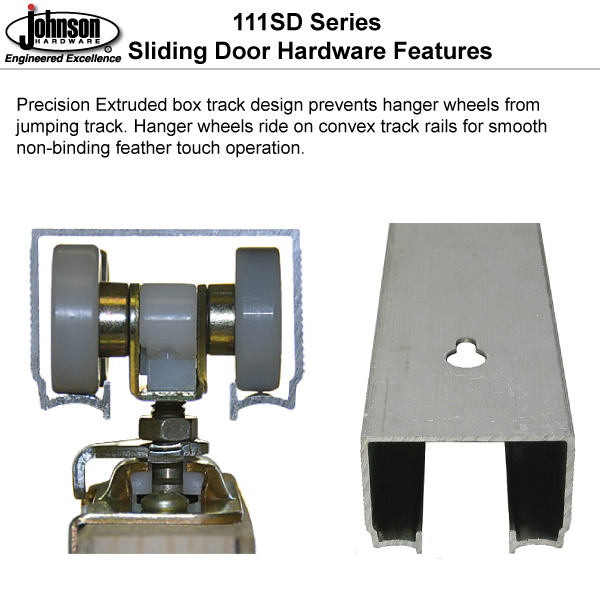

Jump Proof Box Track

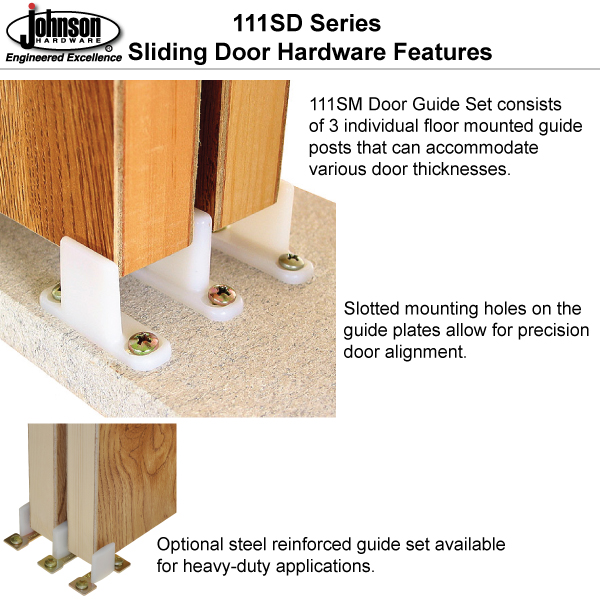

Strong Door Guides

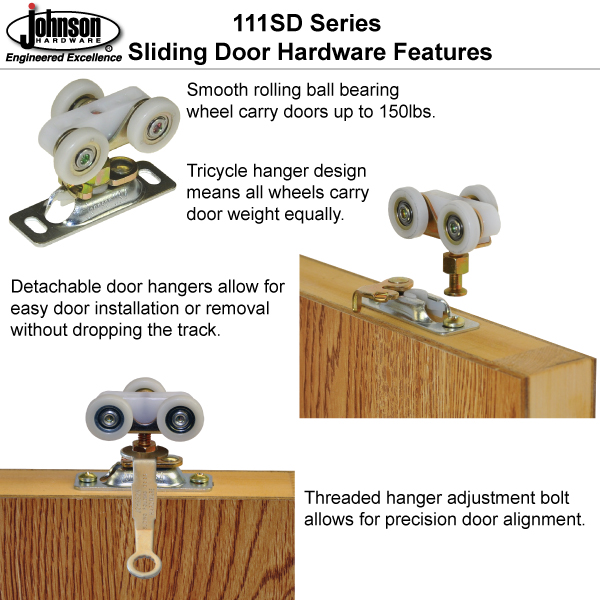

Ball Bearing Hangers

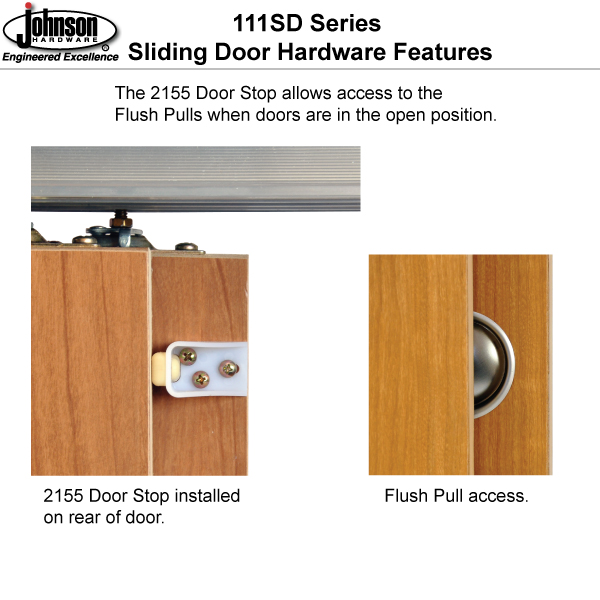

Flush Pull Access

Product Guarantee

Quality Control

111SD Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 111SD configurations possible by ordering 111SD components by the piece.

The 111SD is a highly adaptable sliding door hardware set designed for residential and light commercial sliding door applications. The 111SD can be ordered in configured hardware sets to fit most standard door sizes and opening widths or by the piece for custom installations.

111SD Exceptional Features

Jump Proof Box Track

Strong Door Guides

Ball Bearing Hangers

Flush Pull Access

Product Guarantee

Quality Control

111SD Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 111SD configurations possible by ordering 111SD components by the piece.

111SD Printed Installation Instructions

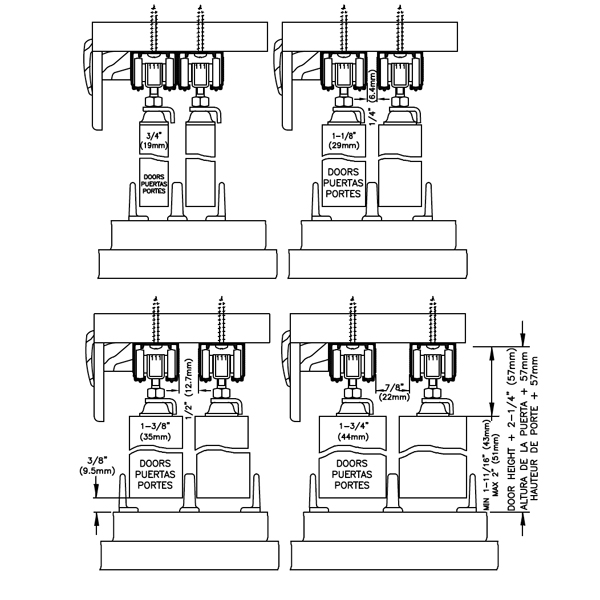

111SD Quick Reference Drawings

111SD Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 111SD configurations possible by ordering 111SD components by the piece.
Products specifications
Max. Weight Per Door 150lbs. [68kg]
Application Interior Residential/Commercial
Min. Door Thickness 3/4" [19mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 3/4"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Door Hardware Sets

Part No. Description /Contents Hardware Sets Max. Door Width Track Length Price | Qty. | Order
111482DR View Contents

2-Door

24" X 2 (2' - 0" X 2)
[610mm X 2]

48" x 2
(4' - 0" x 2)
[1219mm x 2]

$89.26
111602DR View Contents

2-Door

30" X 2 (2' - 6" X 2)
[762mm X 2]

60" x 2
(5' - 0" x 2)
[1524mm x 2]

$96.14
111722DR View Contents

2-Door

36" X 2 (3' - 0" X 2)
[914mm X 2]

72" x 2
(6' - 0" x 2)
[1829mm x 2]

$102.70
111962DR View Contents

2-Door

48" X 2 (4' - 0" X 2)
[1219mm X 2]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$115.62

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Door Hardware Sets

Part No. Description /Contents Hardware Sets Max. Door Width Track Length Price | Qty. | Order
111964DR View Contents

4-Door

24" X 4 (2' - 0" X 4)
[610mm X 4]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$175.34

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 150lbs. [68kg]
Application Interior Residential/Commercial
Min. Door Thickness 3/4" [19mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 3/4"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
