111FS Side Mounted Bi-Fold Door Hardware

  • 50lbs [23kg] Max Panel Weight Each

  • 24" [610mm] Max Panel Width Each

  • 108" [2743mm] Max Panel Height

  • 3/4" [19mm], 1-1/8" [29mm], 1-3/8" [35mm] Panel Thickness

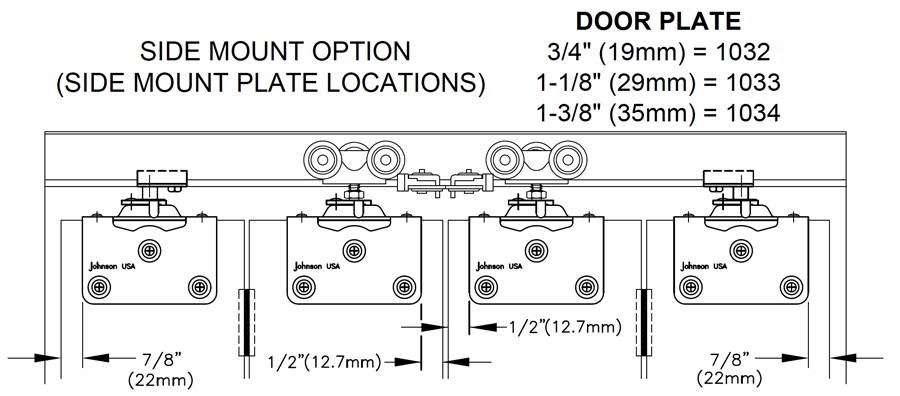

  • Side Mount Hanger Type

  • Commercial Grade Top Hung Bi-Fold Door Hardware

111FS Series Side Mount Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Hardware sets available for 3 door thickness only 3/4" [19mm], 1-1/8" [29mm] or 1-3/8" [35mm].
  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 111FS configurations possible by ordering 111FS components by the piece.

111FS Series Side Mount Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Hardware sets available for 3 door thickness only 3/4" [19mm], 1-1/8" [29mm] or 1-3/8" [35mm].
  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 111FS configurations possible by ordering 111FS components by the piece.
Products specifications
Max. Weight Per Panel 50 lbs. [23kg]
Application Interior Residential
Panel Thickness 3/4" [19mm], 1-1/8" [28mm] or 1-3/8" [35mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Wheel Dia. 3/4"
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Product Grade Commercial/Residential
Country of Origin U.S.A.

2-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Panel Thickness Price | Qty. | Order
11134362 View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

3/4" [19mm]

$34.29
11118362 View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

1-1/8" [29mm]

$34.29
11138362 View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

1-3/8" [35mm]

$34.29

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

4-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Panel Thickness Price | Qty. | Order
11134484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

3/4" [19mm]

$64.33
11118484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

1-1/8" [29mm]

$64.33
11138484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

1-3/8" [35mm]

$64.33
11134604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

3/4" [19mm]

$66.04
11118604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

1-1/8" [29mm]

$66.04
11138604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

1-3/8" [35mm]

$66.04
11134724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

3/4" [19mm]

$67.83
11118724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

1-1/8" [29mm]

$67.83
11138724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

1-3/8" [35mm]

$67.83
11134964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

3/4" [19mm]

$91.48
11118964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

1-1/8" [29mm]

$91.48
11138964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

1-3/8" [35mm]

$91.48

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Panel 50 lbs. [23kg]
Application Interior Residential
Panel Thickness 3/4" [19mm], 1-1/8" [28mm] or 1-3/8" [35mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Wheel Dia. 3/4"
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Product Grade Commercial/Residential
Country of Origin U.S.A.
