111FD Bi-Fold Door Hardware

  • 50lbs [23kg] Max Panel Weight Each

  • 24" [610mm] Max Panel Width Each

  • 108" [2743mm] Max Panel Height

  • 3/4" [19mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount Hanger Type

  • Commercial Grade Top Hung Bi-Fold Door Hardware

  • 111FD Installation Instructions

The 111FD is a smooth operating compact bi-folding door hardware system ideally suited for both light commercial or residential applications. Door hangers and pivots feature a quick disconnect clip system facilitating easy panel mounting or dismounting. Spring assisted panel hinges "pop" panels into the closed position and keep them there, no more unsightly half closed bifold doors.

111FD Series Bi-Folding Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 111FD configurations possible by ordering 111FD components by the piece.

The 111FD is a smooth operating compact bi-folding door hardware system ideally suited for both light commercial or residential applications. Door hangers and pivots feature a quick disconnect clip system facilitating easy panel mounting or dismounting. Spring assisted panel hinges "pop" panels into the closed position and keep them there, no more unsightly half closed bifold doors.

111FD Series Bi-Folding Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 111FD configurations possible by ordering 111FD components by the piece.

111FD Series Printed Installation Instructions

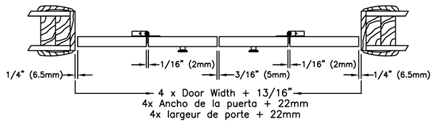

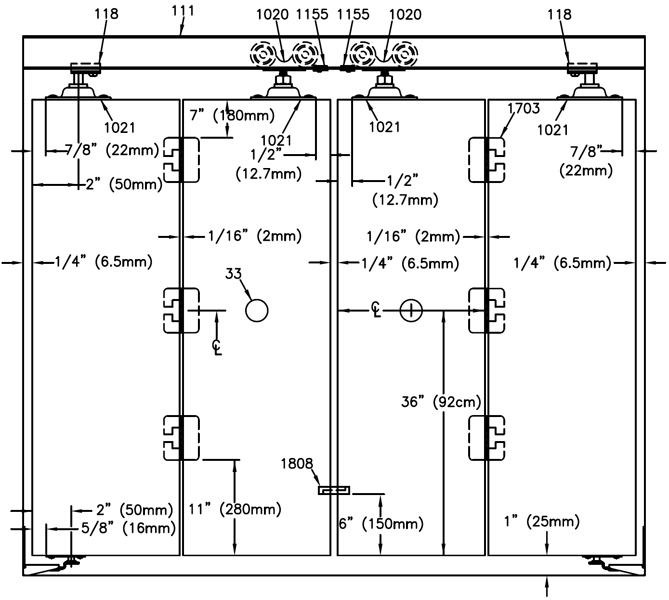

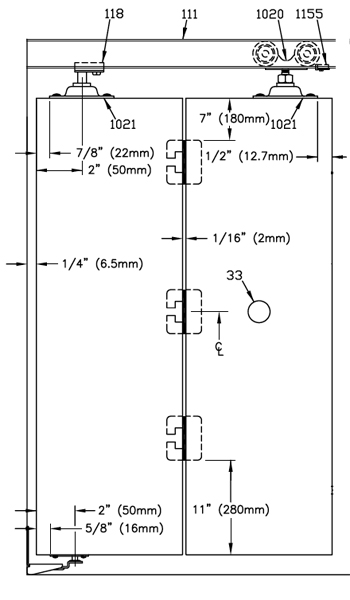

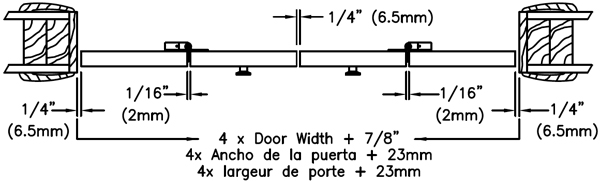

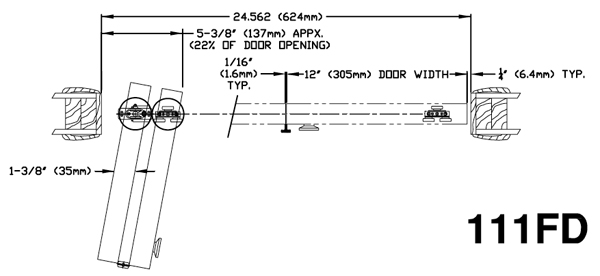

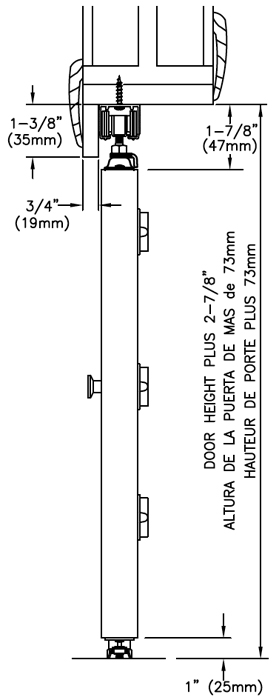

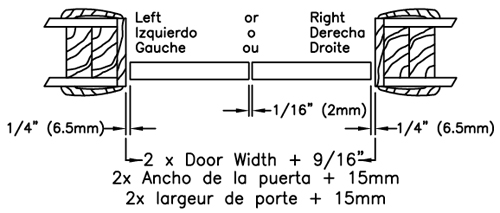

111FD Series Quick Reference Drawings

111FD Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 111FD configurations possible by ordering 111FD components by the piece.
Products specifications
Max. Weight Per Panel 50 lbs. [23kg]
Application Interior Residential/Commercial
Panel Thickness 3/4" [19mm] to 1-3/4" [44mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum

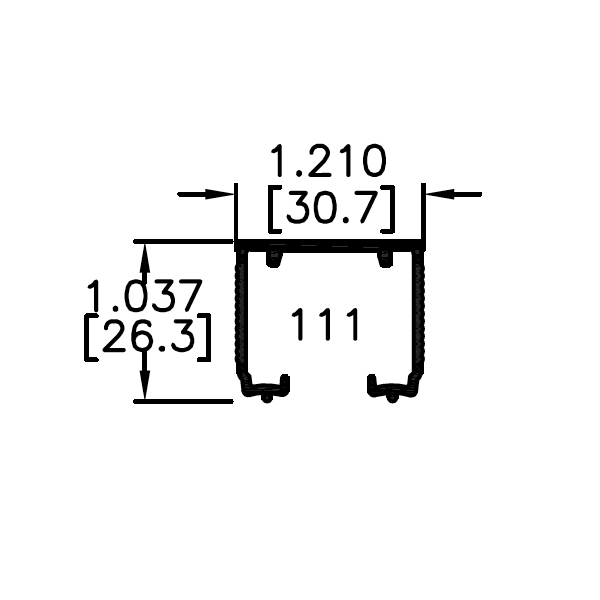

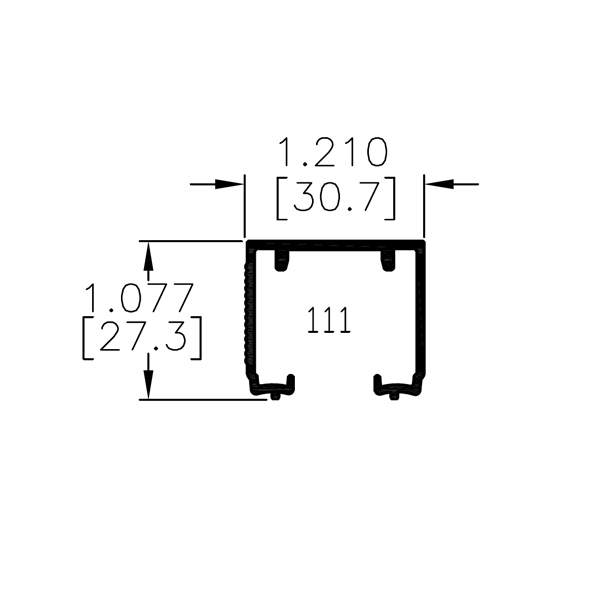

Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 3/4"
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Max. Weight Per Panel Price | Qty. | Order
111FD362 View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

50 lbs. [23kg]

$45.24

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Max. Weight Per Panel Price | Qty. | Order
111FD484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

50 lbs. [23kg]

$76.17
111FD604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

50 lbs. [23kg]

$80.69
111FD724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

50 lbs. [23kg]

$84.84
111FD964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

50 lbs. [23kg]

$96.43

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Panel 50 lbs. [23kg]
Application Interior Residential/Commercial
Panel Thickness 3/4" [19mm] to 1-3/4" [44mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 3/4"
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
