100SM Side Mount Sliding Bypass Door Hardware

  • 200lbs [91kg] Max Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm] Door Thickness
  • Side Mount Hanger Type

  • Independent Box Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • *Soft-Close/Open Door Operation Available
  • *165lbs [75kg] Soft Operation Max Weight per Door

  • 100SM Installation Instructions

The 100SM is commercial grade sliding by-pass door hardware designed to carry heavy doors in interior applications. The 100SM features side mount hanger plates designed to hold doors made from MDF, partical board, plywood or other material that will not hold a screw on edge. Extruded aluminum track features box design that captures wheels to eliminate track jump. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. 3-wheel "tripod" door hanger design ensure all wheels carry equal door weight. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.

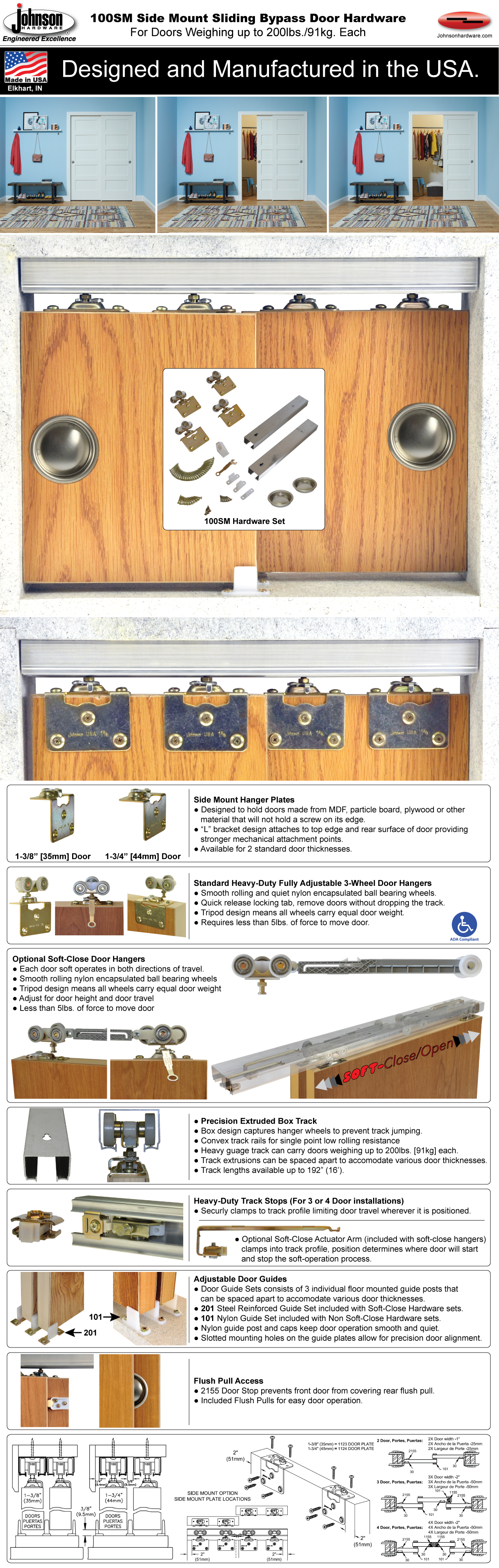

100SM Exceptional Features

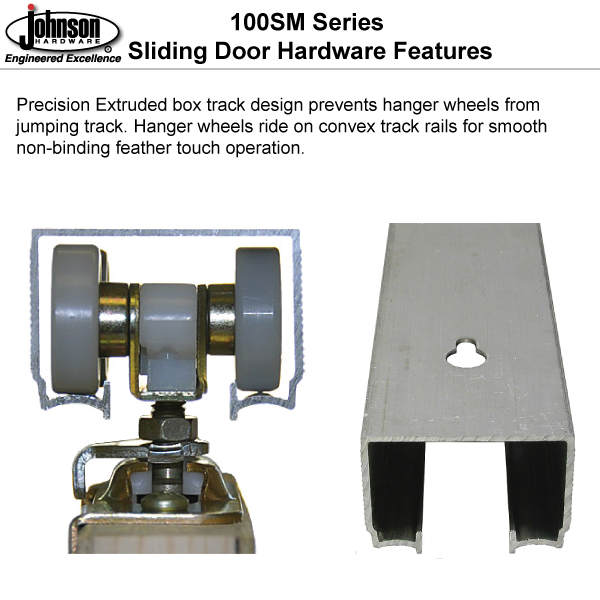

Jump Proof Box Track

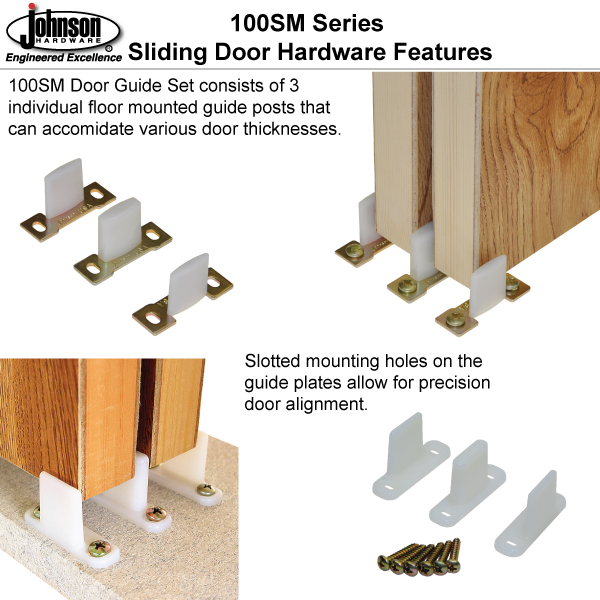

Strong Door Guides

Soft Door Operation

Ball Bearing Hangers

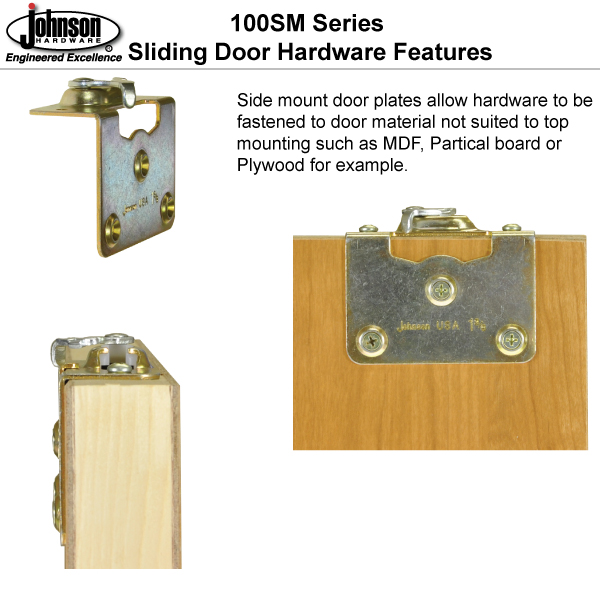

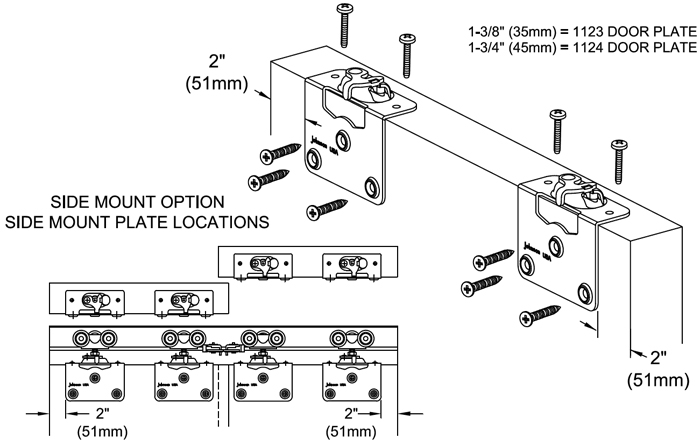

Side Mount Door Plates

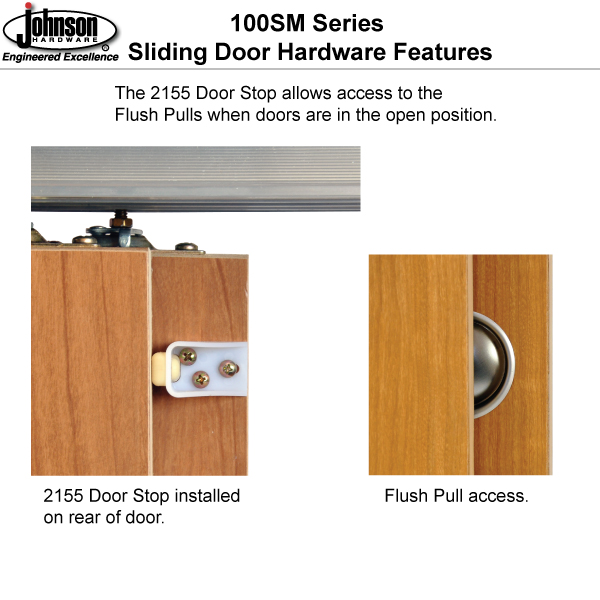

Flush Pull Access

Product Guarantee

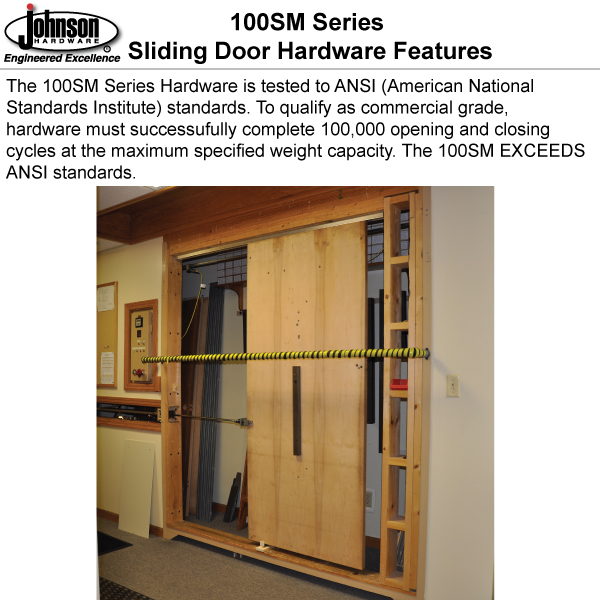

Quality Control

100SM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide, door thickness and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • Hardware sets available for 2 door thicknesses only 1-3/8" [35mm] or 1-3/4"[44mm]
  • Track can be cut down to accommodate narrower doors/openings.
  • 24" 2/0 Min. Door Width for Soft-Open/Close Hardware Sets.
  • Custom 100SM configurations possible by ordering 100SM components by the piece.

The 100SM is commercial grade sliding by-pass door hardware designed to carry heavy doors in interior applications. The 100SM features side mount hanger plates designed to hold doors made from MDF, partical board, plywood or other material that will not hold a screw on edge. Extruded aluminum track features box design that captures wheels to eliminate track jump. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. 3-wheel "tripod" door hanger design ensure all wheels carry equal door weight. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.

100SM Exceptional Features

Jump Proof Box Track

Strong Door Guides

Soft Door Operation

Ball Bearing Hangers

Side Mount Door Plates

Flush Pull Access

Product Guarantee

Quality Control

100SM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide, door thickness and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • Hardware sets available for 2 door thicknesses only 1-3/8" [35mm] or 1-3/4"[44mm]
  • Track can be cut down to accommodate narrower doors/openings.
  • 24" 2/0 Min. Door Width for Soft-Open/Close Hardware Sets.
  • Custom 100SM configurations possible by ordering 100SM components by the piece.

100SM Printed Installation Instructions

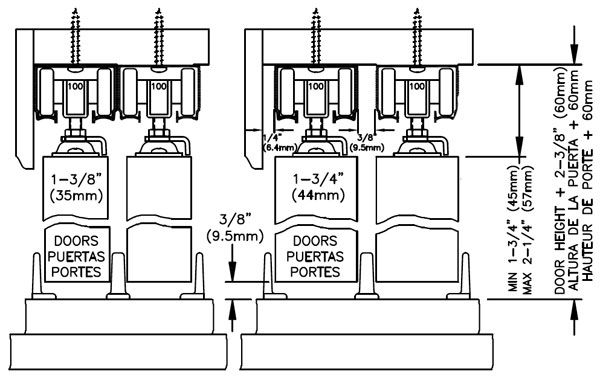

100SM Quick Reference Drawings

100SM Series Sliding Bypass Door Hardware Sets

Select a hardware set that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • Hardware sets available for 2 door thicknesses only 1-3/8" [35mm] or 1-3/4"[44mm].
  • Track can be cut down to accommodate narrower doors/openings.
  • 24" 2/0 Min. Door Width for Soft-Open/Close Hardware Sets.
  • Custom 100SM configurations possible by ordering 100SM components by the piece.
Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm] or 1-3/4" [44mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

Soft-Open/Close - Mill Track Hardware Sets

Part No. Description /Contents Doors Door Thickness Max. Door Width Track Length Price | Qty. | Order
10S48238 View Contents

2 - Doors

1-3/8" [35mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2
(4' - 0" x 2)
[1219mm x 2]

$272.85
10S48234 View Contents

2 - Doors

1-3/4" [44mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2
(4' - 0" x 2)
[1219mm x 2]

$272.85
10S60238 View Contents

2 - Doors

1-3/8" [35mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2
(5' - 0" x 2)
[1524mm x 2]

$280.37
10S60234 View Contents

2 - Doors

1-3/4" [44mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2
(5' - 0" x 2)
[1524mm x 2]

$280.37
10S72238 View Contents

2 - Doors

1-3/8" [35mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2
(6' - 0" x 2)
[1829mm x 2]

$288.12
10S72234 View Contents

2 - Doors

1-3/4" [44mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2
(6' - 0" x 2)
[1829mm x 2]

$288.12
10S96238 View Contents

2 - Doors

1-3/8" [35mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$307.69
10S96234 View Contents

2 - Doors

1-3/4" [44mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$307.69
10S96438 View Contents

4 - Doors

1-3/8" [35mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$543.02
10S96434 View Contents

4 - Doors

1-3/4" [44mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$543.02

Oversized item must be shipped freight. Freight orders over $600 ship free!

Standard Operation Side Mount - Mill Track Hardware Sets

Part No. Description /Contents Doors Door Thickness Max. Door Width Track Length Price | Qty. | Order
10048238 View Contents

2 - Doors

1-3/8" [35mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2
(4' - 0" x 2)
[1219mm x 2]

$117.02
10048234 View Contents

2 - Doors

1-3/4" [44mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2
(4' - 0" x 2)
[1219mm x 2]

$117.02
10060238 View Contents

2 - Doors

1-3/8" [35mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2
(5' - 0" x 2)
[1524mm x 2]

$124.54
10060234 View Contents

2 - Doors

1-3/4" [44mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2
(5' - 0" x 2)
[1524mm x 2]

$124.54
10072238 View Contents

2 - Doors

1-3/8" [35mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2
(6' - 0" x 2)
[1829mm x 2]

$132.29
10072234 View Contents

2 - Doors

1-3/4" [44mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2
(6' - 0" x 2)
[1829mm x 2]

$132.29
10096238 View Contents

2 - Doors

1-3/8" [35mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$151.86
10096234 View Contents

2 - Doors

1-3/4" [44mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$151.86
10096438 View Contents

4 - Doors

1-3/8" [35mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$232.25
10096434 View Contents

4 - Doors

1-3/4" [44mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$232.25

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm] or 1-3/4" [44mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
