100RD Multi-Fold Door Hardware

  • 50lbs [23kg] Max Panel Weight Each

  • 24" [610mm] Max Panel Width Each

  • 108" [2743mm] Max Panel Height

  • 1" [25mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount Hanger Type

  • Commercial Grade Top Hung Multi-Fold Door Hardware

Johnson's 100RD Multi-folding or Room Dividing Door Hardware is designed to carry heavy door panels in residential or light commercial interior applications. The 100RD is 'top hung' hardware, all door weight is suspended from the top track therefore does not require any bottom tracking. The 100RD allows door panels to be removed or installed without dropping the track. The 100RD features a heavy duty jump proof box track track with positive pivot lock, three-wheeled ball-bearing hanger guides, heavy duty adjustable bottom pivot and a floor bracket with an adjustable bottom pivot socket. Track lengths are available up to 16'.

100RD Ordering Instructions

100RD Multi-Fold Hardware are configured according to application, in effect you build the 100RD to suit your particular installation requirements.


Step 1. Order Track to Desired Length

In standard applications track is usually ordered in lengths that at least equal the overall opening width. Johnson Hardware recommends that single track lengths be used whenever possible to avoid door hangers passing over track splices during operation. Track splicing is acceptable only if hanger wheels DO NOT pass over the splice. If multiple track lengths are to be used in a single opening, ensure that track and door panels are positioned so that no door hanger/guide passed over track splice.

Step 2. Order Base Set A

Base Hardware Set A contains all the pivots, brackets, hangers and mounting screws to hang the 1st pair of panels from a single jamb. Order base hardware set A (1015BS-A) for the first pair of panels off jamb as indicated. Order 1 base set A when all panels operate from a single direction. Order 2 base sets A's when panels will operate from two directions, converging panels that meet in the middle of the opening.

Step 3. Order Add-On Set B

Order one add-on hardware set B (1030AOSB) for every pair of panels after Base Set A as indicated.

Johnson's 100RD Multi-folding or Room Dividing Door Hardware is designed to carry heavy door panels in residential or light commercial interior applications. The 100RD is 'top hung' hardware, all door weight is suspended from the top track therefore does not require any bottom tracking. The 100RD allows door panels to be removed or installed without dropping the track. The 100RD features a heavy duty jump proof box track track with positive pivot lock, three-wheeled ball-bearing hanger guides, heavy duty adjustable bottom pivot and a floor bracket with an adjustable bottom pivot socket. Track lengths are available up to 16'.

100RD Ordering Instructions

100RD Multi-Fold Hardware are configured according to application, in effect you build the 100RD to suit your particular installation requirements.


Step 1. Order Track to Desired Length

In standard applications track is usually ordered in lengths that at least equal the overall opening width. Johnson Hardware recommends that single track lengths be used whenever possible to avoid door hangers passing over track splices during operation. Track splicing is acceptable only if hanger wheels DO NOT pass over the splice. If multiple track lengths are to be used in a single opening, ensure that track and door panels are positioned so that no door hanger/guide passed over track splice.

Step 2. Order Base Set A

Base Hardware Set A contains all the pivots, brackets, hangers and mounting screws to hang the 1st pair of panels from a single jamb. Order base hardware set A (1015BS-A) for the first pair of panels off jamb as indicated. Order 1 base set A when all panels operate from a single direction. Order 2 base sets A's when panels will operate from two directions, converging panels that meet in the middle of the opening.

Step 3. Order Add-On Set B

Order one add-on hardware set B (1030AOSB) for every pair of panels after Base Set A as indicated.

100RD Series Instalation Instructions

100RD Series Quick Reference Drawings

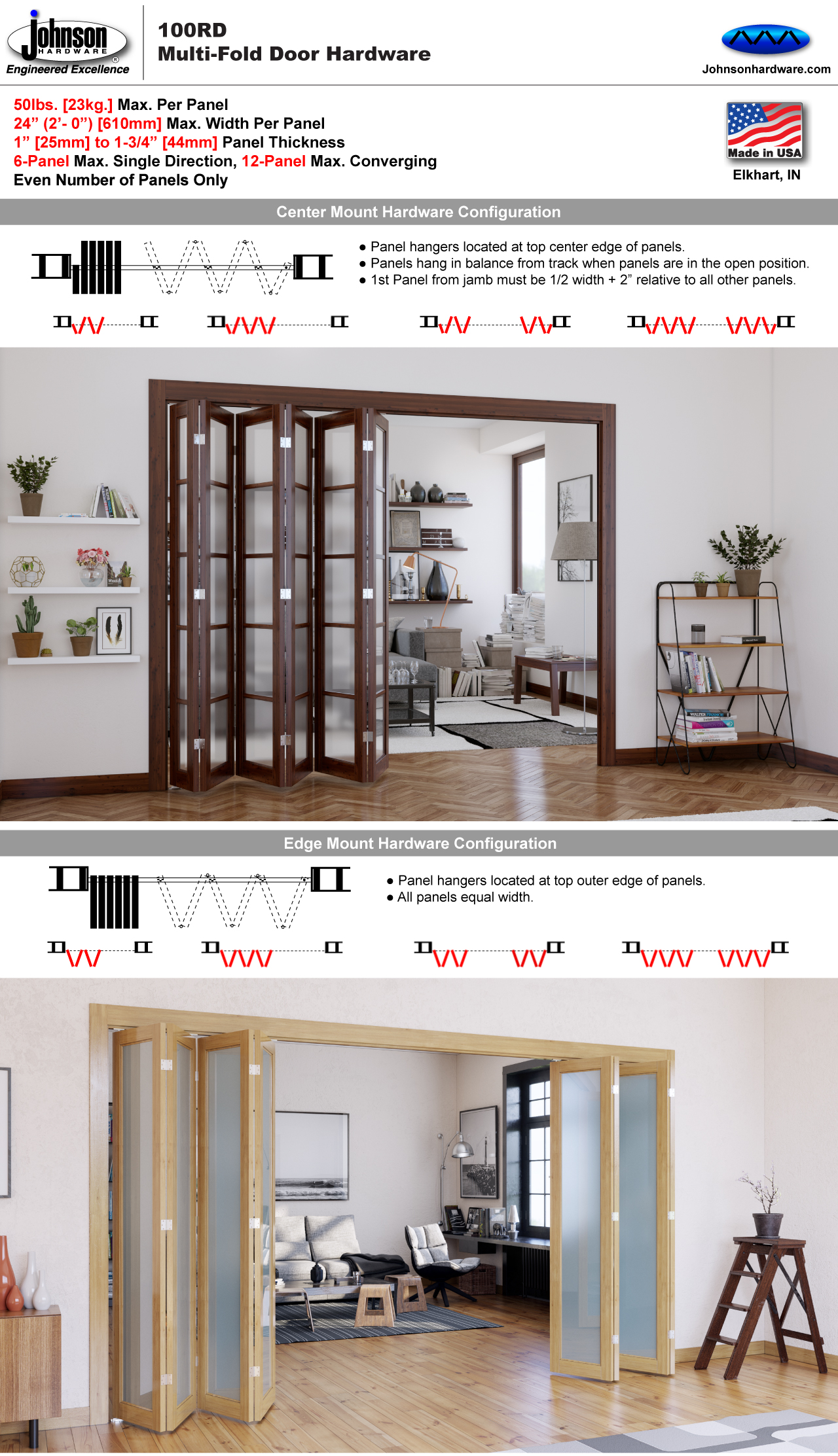

Center Mount Layout

Edge Mount Layout

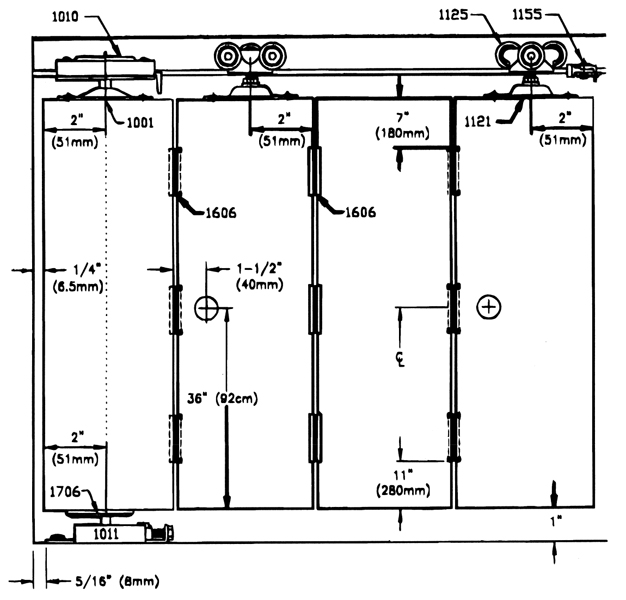

Component Location

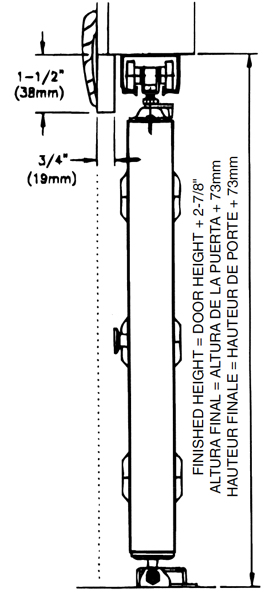

Panel Height

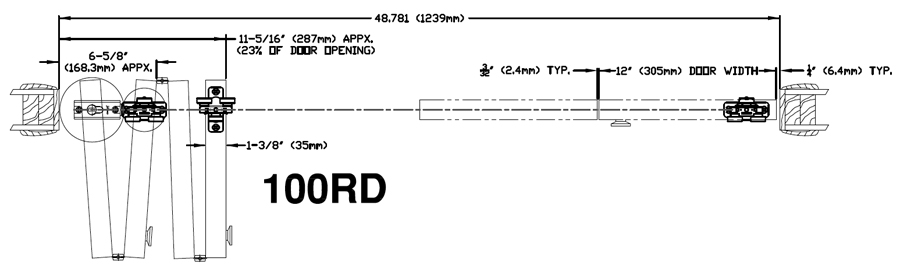

Opening Clearances

Track Dimensions

100RD Ordering Instructions

100RD Multi-Fold Hardware are configured according to application, in effect you build the 100RD to suit your particular installation requirements.


Step 1. Order Track to Desired Length

In standard applications track is usually ordered in lengths that at least equal the overall opening width. Johnson Hardware recommends that single track lengths be used whenever possible to avoid door hangers passing over track splices during operation. Track splicing is acceptable only if hanger wheels DO NOT pass over the splice. If multiple track lengths are to be used in a single opening, ensure that track and door panels are positioned so that no door hanger/guide passed over track splice.

Step 2. Order Base Set A

Base Hardware Set A contains all the pivots, brackets, hangers and mounting screws to hang the 1st pair of panels from a single jamb. Order base hardware set A (1015BS-A) for the first pair of panels off jamb as indicated. Order 1 base set A when all panels operate from a single direction. Order 2 base sets A's when panels will operate from two directions, converging panels that meet in the middle of the opening.

Step 3. Order Add-On Set B

Order one add-on hardware set B (1030AOSB) for every pair of panels after Base Set A as indicated.

Products specifications
Max. Weight Per Panel 50 lbs. [23kg]
Application Interior Residential
Panel Thickness 1" [25mm] to 1-3/4" [44mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

Step 1. Select Track Hardware

Part No. Description /Contents Notes Price | Qty. | Order
100-0048 View Contents

48" [1219mm] Length

$15.30
100-0060 View Contents

60" [1524mm] Length

$19.04
100-0072 View Contents

72" [1829mm] Length

$22.46
100-0096 View Contents

96" [2438mm] Length

$30.40
100-0106 View Contents

106" [2692mm] Length

$39.10
100-0120 View Contents

120" [3048mm] Length

$39.10
100-0144 View Contents

144" [3658mm] Length

$47.08
100-0192 View Contents

192" [4877mm] Length

$60.71

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Step 2. Select Base Set A Hardware

Part No. Description /Contents Notes Price | Qty. | Order
1015BS-A View Contents

Specify Hardware Sets Required

$36.92

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Step 3. Select Add-On Set B Hardware

Part No. Description /Contents Notes Price | Qty. | Order
1030AOSB View Contents

Specify Hardware Sets Required

$37.49

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Panel 50 lbs. [23kg]
Application Interior Residential
Panel Thickness 1" [25mm] to 1-3/4" [44mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
