100FD Bi-Fold Door Hardware

  • 75lbs [34kg] Max Panel Weight Each

  • 24" [610mm] Max Panel Width Each

  • 108" [2743mm] Max Panel Height

  • 1" [25mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount Hanger Type

  • Commercial Grade Top Hung Bi-Fold Door Hardware

100FD Series Bi-Folding Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 100FD configurations possible by ordering 100FD components by the piece.

100FD Series Bi-Folding Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 100FD configurations possible by ordering 100FD components by the piece.

100FD Series Printed Instalation Instructions

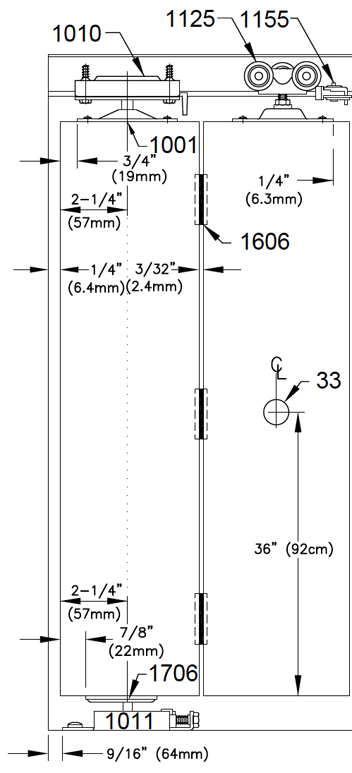

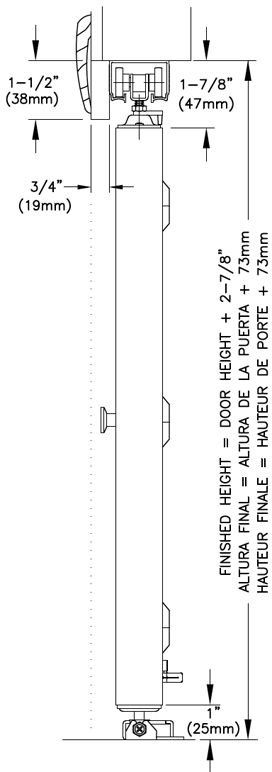

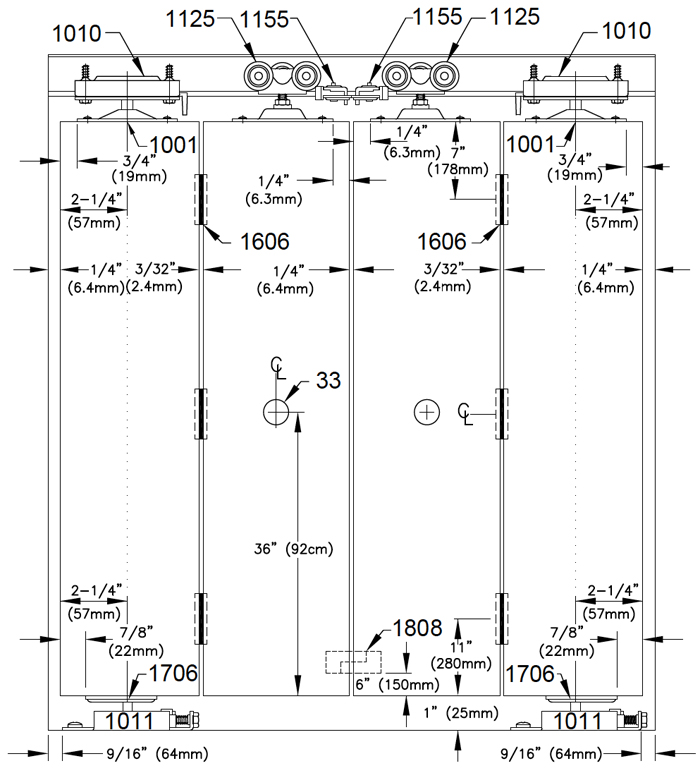

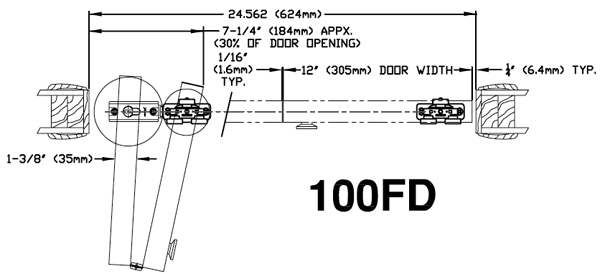

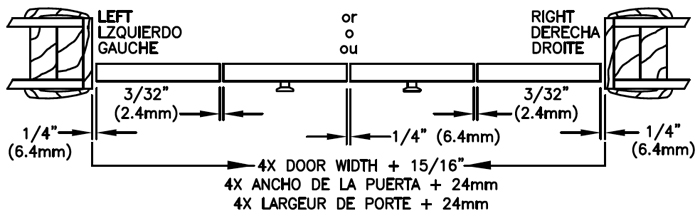

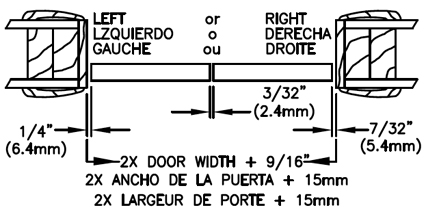

100FD Series Quick Reference Drawings

100FD Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 100FD configurations possible by ordering 100FD components by the piece.
Products specifications
Max. Weight Per Panel 75 lbs. [34kg]
Application Interior Residential/Commercial
Panel Thickness 1-1/8" [29mm] to 1-3/4" [44mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum

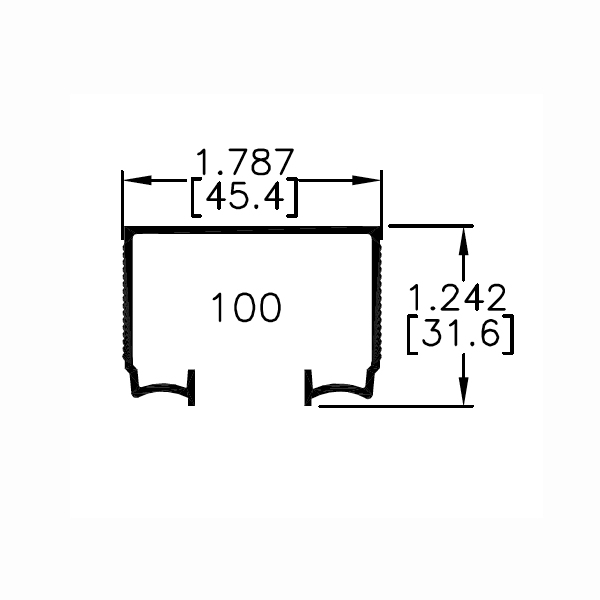

Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

2-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Max. Weight Per Panel Price | Qty. | Order
100FD362 View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

75 lbs. [34kg]

$47.98

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

4-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Max. Weight Per Panel Price | Qty. | Order
100FD484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

75 lbs. [34kg]

$83.58
100FD604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

75 lbs. [34kg]

$87.45
100FD724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

75 lbs. [34kg]

$91.20
100FD964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

75 lbs. [34kg]

$99.62

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Panel 75 lbs. [34kg]
Application Interior Residential/Commercial
Panel Thickness 1-1/8" [29mm] to 1-3/4" [44mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
