2610F Wall Mount Sliding Door Hardware

  • 200lbs [91kg] Max Weight Per Door*

  • 1" [25mm] to 1-3/4" [44mm] Door Thickness
  • Top Mount Hanger Type

  • Single Extrusion Box Rail Fascia Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Mill Grade Aluminum Track Finish

  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

  • *With Ball Bearing Hangers

The 2610F is a versatile and easy to install wall mounted sliding door hardware set ideally suited for application where the installation of a Pocket Door is not structurally possible or not cost effective. Possible applications include closets, storage rooms or anywhere space is limited and a wall mounted sliding door will suit. The 2610F is for interior use only and not suited for external applications.

2610F Hardware Sets

Wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths. Minimum 24" door width required for soft-close/open operation


How to order 2610F Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Specify door weight (125lbs or 200lbs Max.)

3. Select a part set number that accommodates your door size and maximum door weight. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut track down.

The 2610F is a versatile and easy to install wall mounted sliding door hardware set ideally suited for application where the installation of a Pocket Door is not structurally possible or not cost effective. Possible applications include closets, storage rooms or anywhere space is limited and a wall mounted sliding door will suit. The 2610F is for interior use only and not suited for external applications.

2610F Hardware Sets

Wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths. Minimum 24" door width required for soft-close/open operation


How to order 2610F Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Specify door weight (125lbs or 200lbs Max.)

3. Select a part set number that accommodates your door size and maximum door weight. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut track down.

2610F Series Instalation Instructions

2610F Series Video

2610F Installation

2610F Series Quick Reference Drawings

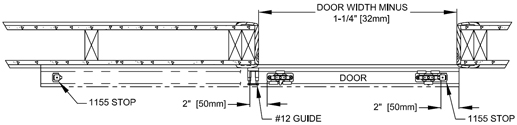

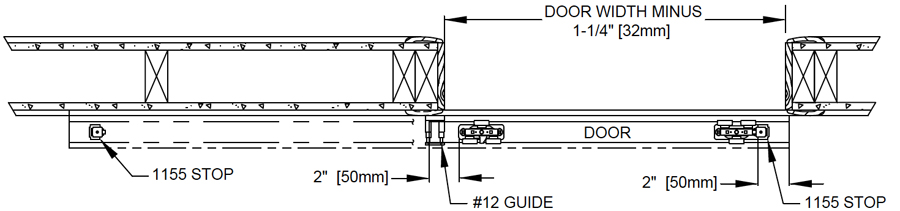

Opening Width Dimensions

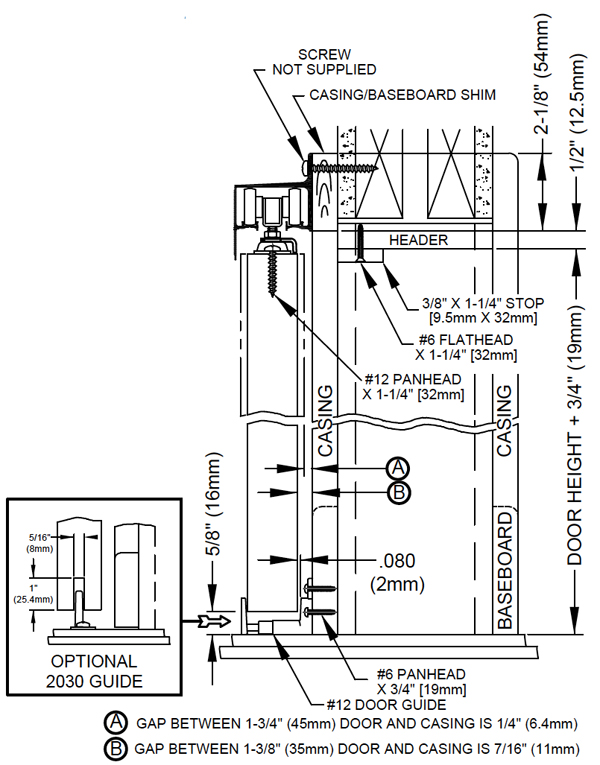

Opening Height Dimensions

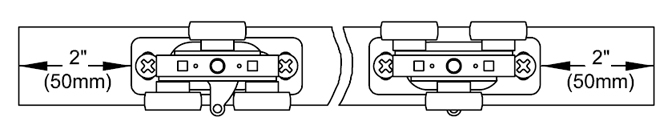

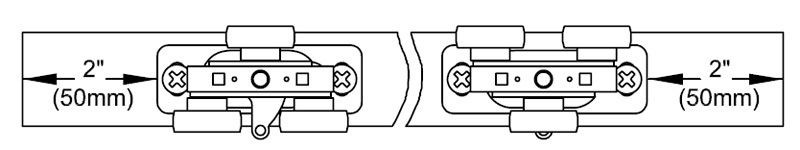

Hanger Placement

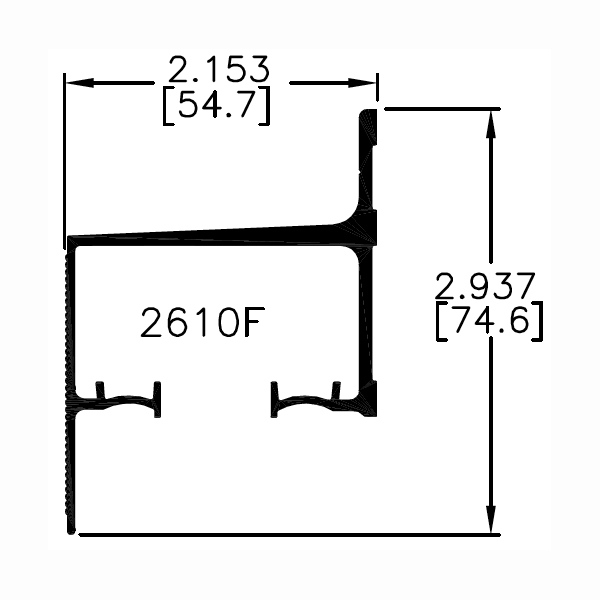

Track Dimensions

2610F Hardware Sets

Wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths. Minimum 24" door width required for soft-close/open operation


How to order 2610F Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Specify door weight (125lbs or 200lbs Max.)

3. Select a part set number that accommodates your door size and maximum door weight. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut track down.

Products specifications
Max. Weight Per Door 200lbs. [91kg] (W/1125 Ball Bearing Door Hanger)
Application Interior Residential/Commercial
Door Thickness 1" [25mm] to 1-3/4" [44mm]
Series Track 2610F
Track Finish Mill Grade Aluminum or Anodized Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

1-Door Ball Bearing Wheel Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Hanger Type Track Finish Price | Qty. | Order
2610F48H View Contents

24" (2'- 0")
[609mm]

48" (4' - 0")
[1219mm]

Ball Bearing Wheel
(200lbs Max.)

Mill Aluminum

$61.94
2610F48B View Contents

24" (2'- 0")
[609mm]

48" (4' - 0")
[1219mm]

Ball Bearing Wheel
(200lbs Max.)

Anodized Bronze

$94.02
2610F60H View Contents

30" (2'- 6")
[762mm]

60" (5' - 0")
[1524mm]

Ball Bearing Wheel
(200lbs Max.)

Mill Aluminum

$70.71
2610F60B View Contents

30" (2'- 6")
[762mm]

60" (5' - 0")
[1524mm]

Ball Bearing Wheel
(200lbs Max.)

Anodized Bronze

$110.12
2610F72H View Contents

36" (3'- 0")
[914mm]

72" (6' - 0")
[1829mm]

Ball Bearing Wheel
(200lbs Max.)

Mill Aluminum

$78.89
2610F72B View Contents

36" (3'- 0")
[914mm]

72" (6' - 0")
[1829mm]

Ball Bearing Wheel
(200lbs Max.)

Anodized Bronze

$124.58
2610F96H View Contents

48" (4'- 0")
[1219mm]

96” (8' - 0")
[2438mm]

Ball Bearing Wheel
(200lbs Max.)

Mill Aluminum

$96.03
2610F96B View Contents

48" (4'- 0")
[1219mm]

96” (8' - 0")
[2438mm]

Ball Bearing Wheel
(200lbs Max.)

Anodized Bronze

$150.33

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

1-Door Standard Wheel Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Hanger Type Track Finish Price | Qty. | Order
2610F481 View Contents

24" (2'- 0")
[609mm]

48" (4' - 0")
[1219mm]

Nylon Wheel
(125lbs Max.)

Mill Aluminum

$49.22
2610F601 View Contents

30" (2'- 6")
[762mm]

60" (5' - 0")
[1524mm]

Nylon Wheel
(125lbs Max.)

Mill Aluminum

$57.99
2610F721 View Contents

36" (3'- 0")
[914mm]

72" (6' - 0")
[1829mm]

Nylon Wheel
(125lbs Max.)

Mill Aluminum

$66.17
2610F961 View Contents

48" (4'- 0")
[1219mm]

96” (8' - 0")
[2438mm]

Nylon Wheel
(125lbs Max.)

Mill Aluminum

$83.31

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

2-Door Converging Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Hanger Type Track Finish Price | Qty. | Order
2610F242 View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

96” (8' - 0")
[2438mm]

Ball Bearing Wheel
(200lbs Max.)

Mill Aluminum

$123.88
2610B242 View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

96” (8' - 0")
[2438mm]

Ball Bearing Wheel
(200lbs Max.)

Anodized Bronze

$188.04
2610F302 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

120" (10' - 0")
[3048mm]

Ball Bearing Wheel
(200lbs Max.)

Mill Aluminum

$141.42
2610B302 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

120" (10' - 0")
[3048mm]

Ball Bearing Wheel
(200lbs Max.)

Anodized Bronze

$220.24
2610F362 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

144" (12' - 0")
[3658mm]

Ball Bearing Wheel
(200lbs Max.)

Mill Aluminum

$157.78
2610B362 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

144" (12' - 0")
[3658mm]

Ball Bearing Wheel
(200lbs Max.)

Anodized Bronze

$249.16
2610F482 View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

192" (16' - 0")
[4877mm]

Ball Bearing Wheel
(200lbs Max.)

Mill Aluminum

$192.06
2610B482 View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

192" (16' - 0")
[4877mm]

Ball Bearing Wheel
(200lbs Max.)

Anodized Bronze

$300.66

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 200lbs. [91kg] (W/1125 Ball Bearing Door Hanger)
Application Interior Residential/Commercial
Door Thickness 1" [25mm] to 1-3/4" [44mm]
Series Track 2610F
Track Finish Mill Grade Aluminum or Anodized Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
