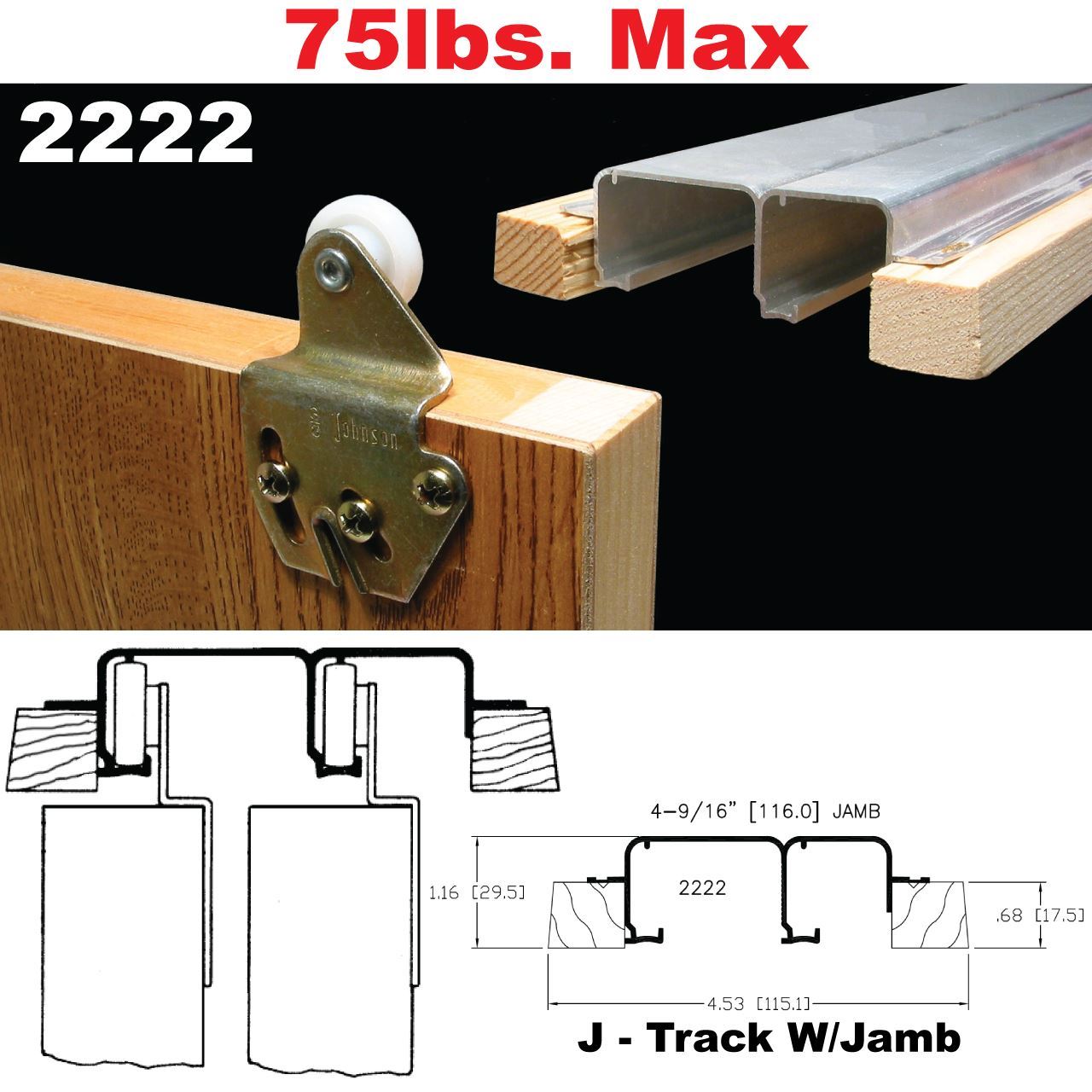

2222 Sliding Bypass Door Hardware

  • 75lbs [34kg] Max Weight Per Door

  • 1-3/8" [35mm] Door Thickness
  • 4-9/16" [115mm] Wall Structure Thickness

  • Side Mount Hanger Type

  • Single Extrusion Twin Rail Header Mount Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Residential Grade Top Hung Sliding Door Hardware

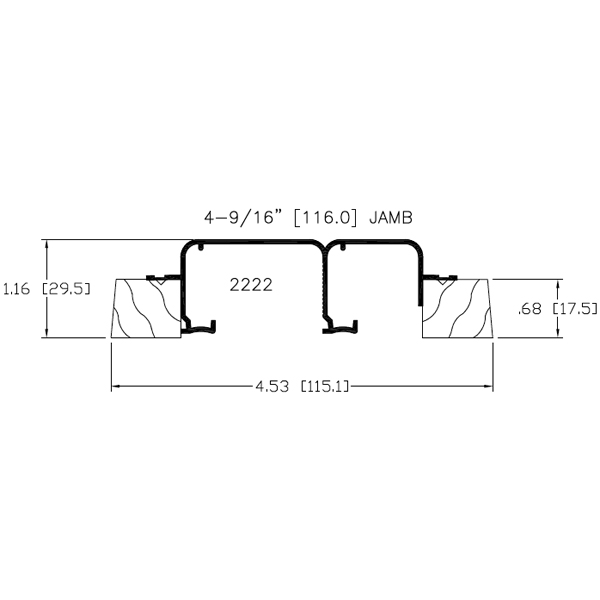

Unique sliding door hardware set featuring "header track" where track and header casing is one unit. Header track allows doors to be trimmed out to the same height as swinging doors eliminating odd sizing of rough openings, jambs and trim. Prefabricated 4-9/16" [115mm] header is made to fit new or existing 2 x 4 wall thickness. Header is made to slip into jamb dado without special cutting. The 2222 consists of extruded aluminum track and finish quality wood that can be painted or stained to match other woodwork, or aluminum track is available alone, enabling special woods to be used.

2222 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 2222 is compatible with 1-3/8" [35mm] thick doors only.
  • The 2222 is compatible with 4-9/16" (2 x 4) walls only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 2222 configurations possible by ordering 2222 components by the piece.

Unique sliding door hardware set featuring "header track" where track and header casing is one unit. Header track allows doors to be trimmed out to the same height as swinging doors eliminating odd sizing of rough openings, jambs and trim. Prefabricated 4-9/16" [115mm] header is made to fit new or existing 2 x 4 wall thickness. Header is made to slip into jamb dado without special cutting. The 2222 consists of extruded aluminum track and finish quality wood that can be painted or stained to match other woodwork, or aluminum track is available alone, enabling special woods to be used.

2222 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 2222 is compatible with 1-3/8" [35mm] thick doors only.
  • The 2222 is compatible with 4-9/16" (2 x 4) walls only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 2222 configurations possible by ordering 2222 components by the piece.

2222 Printed Instalation Instructions

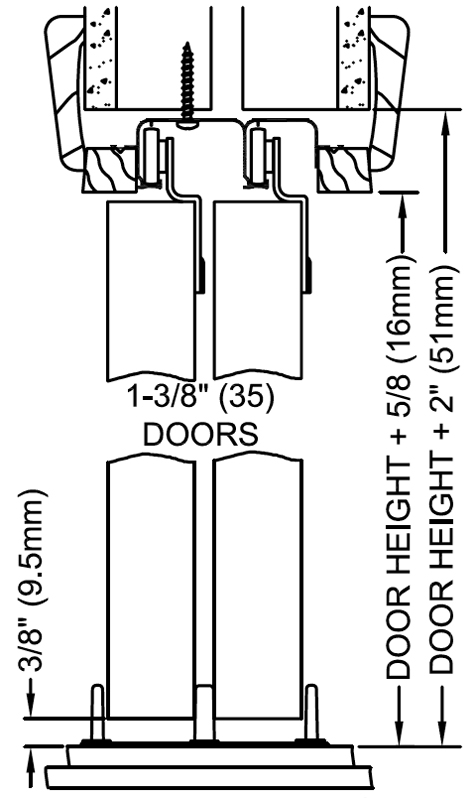

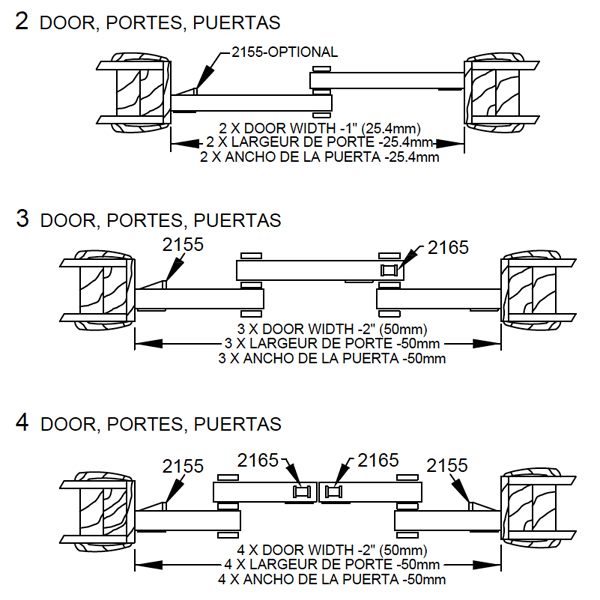

2222 Quick Reference Drawings

2222 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 2222 is compatible with 1-3/8" [35mm] thick doors only.
  • The 2222 is compatible with 4-9/16" (2 x 4) walls only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 2222 configurations possible by ordering 2222 components by the piece.
Products specifications
Max. Weight Per Door 75lbs. [34kg] (W/Twin Wheel Hangers)
Application Interior Residential
Door Thickness 1-3/8" [35mm]
Series Track 2222
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Double Leg J-Track
Hanger Type Side Mount
Wheel Dia. 7/8"
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

Single Wheel Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Doors Max. Weight Per Door Price | Qty. | Order
22224814 View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

47" (3' - 11")
[1194mm]

2 - Doors

50lbs. [23kg]

$31.25
22226014 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

59" (4' - 11")
[1499mm]

2 - Doors

50lbs. [23kg]

$37.23
22227214 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

71" (5' - 11")
[1803mm]

2 - Doors

50lbs. [23kg]

$43.16
22229614 View Contents

24" X 4 (2' - 0" X 4)
[610mm X 4]

94" (7' - 10")
[2388mm]

4 - Doors

50lbs. [23kg]

$65.73

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Twin Wheel Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Doors Max. Weight Per Door Price | Qty. | Order
22224824 View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

47" (3' - 11")
[1194mm]

2 - Doors

75lbs. [34kg]

$34.42
22226024 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

59" (4' - 11")
[1499mm]

2 - Doors

75lbs. [34kg]

$40.40
22227224 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

71" (5' - 11")
[1803mm]

2 - Doors

75lbs. [34kg]

$46.33
22229624 View Contents

24" X 4 (2' - 0" X 4)
[610mm X 4]

94" (7' - 10")
[2388mm]

4 - Doors

75lbs. [34kg]

$72.63

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 75lbs. [34kg] (W/Twin Wheel Hangers)
Application Interior Residential
Door Thickness 1-3/8" [35mm]
Series Track 2222
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Double Leg J-Track
Hanger Type Side Mount
Wheel Dia. 7/8"
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
