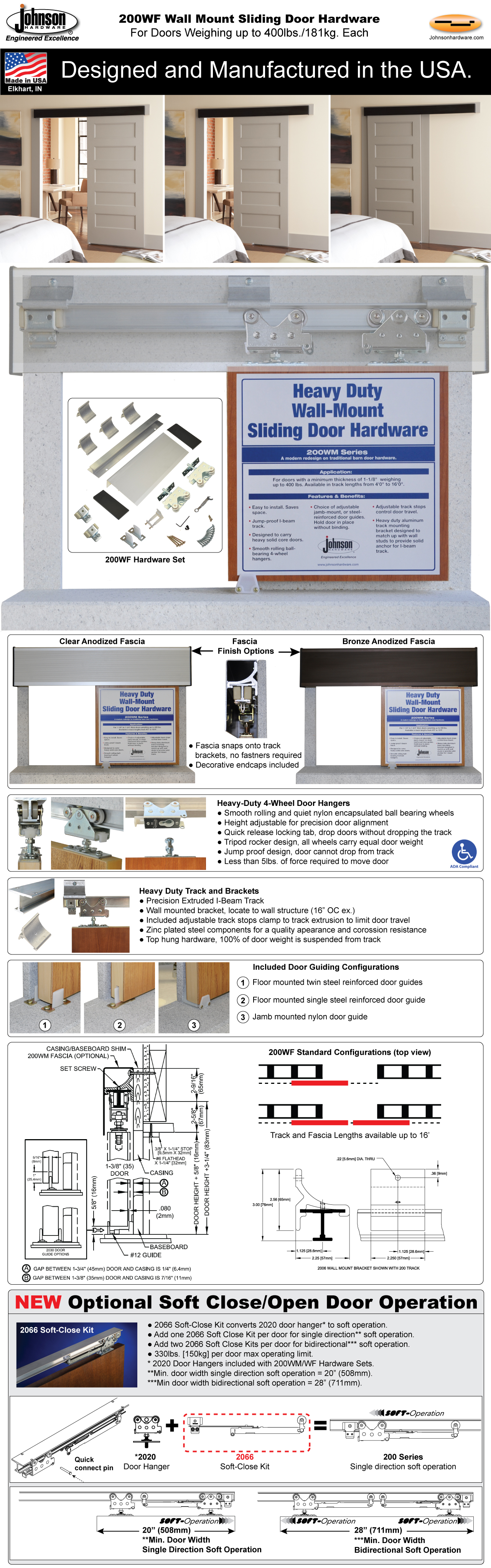

200WF Wall Mount Sliding Door Hardware W/Fascia

  • 400lbs [181kg] Max Weight Per Door

  • 1-1/8" [29mm] to 1-3/4" [44mm] Door Thickness
  • Top Mount Hanger Type

  • I-Beam Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Anodized Clear or Bronze Fascia Finish

  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

The 200WF is an easy to install heavy-duty wall mounted or "barn door" type sliding door hardware set for interior applications. The 200WF is ideally suited for use when traditional pocket door installations are cost prohibitive or structurally complicated. The 200WF features a attractive architectural grade anodized aluminum fascia that covers hardware and track for a clean modern finished appearance . The 200WM thick walled precision extruded aluminum I-beam track and heavy-duty extruded aluminum track mounting brackets allow doors up to 400lbs. each to be hung. Four-wheeled ball bearing hangers assure smooth feather touch operation and removable hanger plates allow for easy door installation and removal. Three different door guiding options are supplied with the hardware set for maximum installation flexibility.14 – 16 gauge zinc trivalent plated steel parts. Track lengths are available up to 192" [4877mm].

200WF Hardware Sets

Wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths.


How to order 200WF Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Select a part set number that accommodates your door size. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut track down.

The 200WF is an easy to install heavy-duty wall mounted or "barn door" type sliding door hardware set for interior applications. The 200WF is ideally suited for use when traditional pocket door installations are cost prohibitive or structurally complicated. The 200WF features a attractive architectural grade anodized aluminum fascia that covers hardware and track for a clean modern finished appearance . The 200WM thick walled precision extruded aluminum I-beam track and heavy-duty extruded aluminum track mounting brackets allow doors up to 400lbs. each to be hung. Four-wheeled ball bearing hangers assure smooth feather touch operation and removable hanger plates allow for easy door installation and removal. Three different door guiding options are supplied with the hardware set for maximum installation flexibility.14 – 16 gauge zinc trivalent plated steel parts. Track lengths are available up to 192" [4877mm].

200WF Hardware Sets

Wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths.


How to order 200WF Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Select a part set number that accommodates your door size. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut track down.

200WF Series Instalation Instructions

200WF Series Quick Reference Drawings

200WF Opening Width Dimensions

200WF Opening Hight Dimensions

200WM/WF Bracket Locations

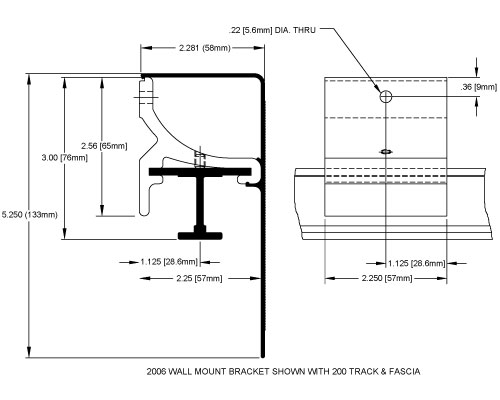

200WF Fascia/Bracket Dimensions

Track Dimensions

200WF Hardware Sets

Wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths.


How to order 200WF Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Select a part set number that accommodates your door size. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut track down.

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Fascia Finish Anodized
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

1-Door Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Fascia Finish Price | Qty. | Order
200WF48S View Contents

24" (2'- 0")
[609mm]

48" (4' - 0")
[1219mm]

Clear Anodized

$248.91
200WF48B View Contents

24" (2'- 0")
[609mm]

48" (4' - 0")
[1219mm]

Bronze Anodized

$248.91
200WF60S View Contents

30" (2'- 6")
[762mm]

60" (5' - 0")
[1524mm]

Clear Anodized

$270.07
200WF60B View Contents

30" (2'- 6")
[762mm]

60" (5' - 0")
[1524mm]

Bronze Anodized

$270.07
200WF72S View Contents

36" (3'- 0")
[914mm]

72" (6' - 0")
[1829mm]

Clear Anodized

$304.86
200WF72B View Contents

36" (3'- 0")
[914mm]

72" (6' - 0")
[1829mm]

Bronze Anodized

$304.86
200WF96S View Contents

48" (4'- 0")
[1219mm]

96” (8' - 0")
[2438mm]

Clear Anodized

$355.69
200WF96B View Contents

48" (4'- 0")
[1219mm]

96” (8' - 0")
[2438mm]

Bronze Anodized

$355.69

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

2-Door Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Fascia Finish Price | Qty. | Order
200WS242 View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

96” (8' - 0")
[2438mm]

Clear Anodized

$476.60
200WB242 View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

96” (8' - 0")
[2438mm]

Bronze Anodized

$476.60
200WS302 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

120" (10' - 0")
[3048mm]

Clear Anodized

$525.33
200WB302 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

120" (10' - 0")
[3048mm]

Bronze Anodized

$525.33
200WS362 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

144" (12' - 0")
[3658mm]

Clear Anodized

$595.95
200WB362 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

144" (12' - 0")
[3658mm]

Bronze Anodized

$595.95
200WS482 View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

192" (16' - 0")
[4877mm]

Clear Anodized

$702.11
200WB482 View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

192" (16' - 0")
[4877mm]

Bronze Anodized

$702.11

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Fascia Finish Anodized
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
