200SD Sliding Bypass Door Hardware

  • 400lbs [181kg] Max. Weight Per Door

  • 1-1/8" [29mm] Min. Door Thickness
  • Top Mount Hanger Type

  • Independent I-Beam Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • 200SD Installation Instructions

The 200SD is one of the finest residential/commercial grade sliding door hardware systems available. The 200SD is ideal for heavy architectural door applications where quality, smooth trouble-free operation and long life is a necessity. The 200SD can be purchased in pre-configured hardware sets for most standard door sizes or by individual parts for custom installations.

200SD Series Sliding Bypass Door Hardware

Select a hardware set that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2, 3 or 4 door sliding bypass installations.

  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 200SD configurations possible by ordering 200SD components by the piece.

The 200SD is one of the finest residential/commercial grade sliding door hardware systems available. The 200SD is ideal for heavy architectural door applications where quality, smooth trouble-free operation and long life is a necessity. The 200SD can be purchased in pre-configured hardware sets for most standard door sizes or by individual parts for custom installations.

200SD Series Sliding Bypass Door Hardware

Select a hardware set that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2, 3 or 4 door sliding bypass installations.

  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 200SD configurations possible by ordering 200SD components by the piece.

200SD Printed Installation Instructions

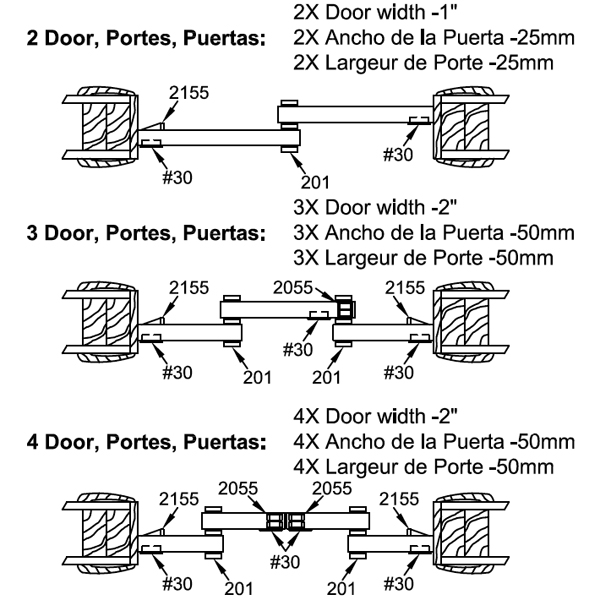

200SD Quick Reference Drawings

200SD Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2, 3 or 4 door sliding bypass installations.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 200SD configurations possible by ordering 200SD components by the piece.
Products specifications
Application Interior Residential/Commercial
Max. Weight Per Door 400lbs. [181kg]
Min. Door Thickness 1-1/8"
Max. Door Height Unlimited
Series Track 200
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Door Hardware Sets

Part No. Description /Contents Hardware Sets Max. Door Width Track Length Price | Qty. | Order
200482DR View Contents

2-Door

24" X 2 (2' - 0" X 2)
[610mm X 2]

48" x 2
(4' - 0" x 2)
[1219mm x 2]

$218.21
200602DR View Contents

2-Door

30" X 2 (2' - 6" X 2)
[762mm X 2]

60" x 2
(5' - 0" x 2)
[1524mm x 2]

$234.86
200722DR View Contents

2-Door

36" X 2 (3' - 0" X 2)
[914mm X 2]

72" x 2
(6' - 0" x 2)
[1829mm x 2]

$258.09
200962DR View Contents

2-Door

48" X 2 (4' - 0" X 2)
[1219mm X 2]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$294.05

Oversized item must be shipped freight. Freight orders over $600 ship free!

3-Door Hardware Sets

Part No. Description /Contents Hardware Sets Max. Door Width Track Length Price | Qty. | Order
200723DR View Contents

3-Door

24" X 3 (2' - 0" X 3)
[610mm X 3]

72" x 2
(6' - 0" x 2)
[1829mm x 2]

$325.19
200963DR View Contents

3-Door

32" X 3 (2' - 8" X 3)
[813mm X 3]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$360.36
2001063D View Contents

3-Door

36" X 3 (3' - 0" X 3)
[914mm X 3]

106" x 2
(8' - 10" x 2)
[2692mm x 2]

$400.32
2001443D View Contents

3-Door

48" X 3 (4' - 0" X 3)
[1219mm X 3]

144" x 2
(12' - 0" x 2)
[3658mm x 2]

$433.78

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Door Hardware Sets

Part No. Description /Contents Hardware Sets Max. Door Width Track Length Price | Qty. | Order
200964DR View Contents

4-Door

24" X 4 (2' - 0" X 4)
[610mm X 4]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

$426.00
2001204D View Contents

4-Door

30" X 4 (2' - 6" X 4)
[762mm X 4]

120" x 2
(10' - 0" x 2)
[3048mm x 2]

$465.98
2001444D View Contents

4-Door

36" X 4 (3' - 0" X 4)
[914mm X 4]

144" x 2
(12' - 0" x 2)
[3658mm x 2]

$499.41
2001924D View Contents

4-Door

48" X 4 (4' - 0" X 4)
[1219mm X 4]

192" x 2
(16' - 0" x 2)
[4877mm x 2]

$570.56

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Application Interior Residential/Commercial
Max. Weight Per Door 400lbs. [181kg]
Min. Door Thickness 1-1/8"
Max. Door Height Unlimited
Series Track 200
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
