1700RD Multi-Fold Door Hardware

  • 15lbs [7kg] Max Panel Weight Each

  • 18" [457mm] Max Panel Width Each

  • 80" [2032mm] Max Panel Height

  • 1" [25mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount Hanger Type

  • Residential Grade Top Hung Multi-Fold Door Hardware

Johnson's 1700RD Multi-folding or Room Dividing Door Hardware is designed to light weight door panels or shutters in residential or light commercial interior applications. The 1700RD is 'top hung' hardware, all door weight is suspended from the top track therefore does not require any bottom tracking. The 1700RD allows door panels to be removed or installed without dropping the track. The 1700RD features a jump proof box track track with positive pivot lock, 4-wheeled hanger guides, adjustable bottom pivot and a floor bracket with an adjustable bottom pivot socket. Track lengths are available up to 16'.

1700RD Ordering Instructions

1700RD Multi-Fold Hardware are configured according to application, in effect you build the 1700RD to suit your particular installation requirements. Follow the steps below to build your 1700RD hardware set.


Step 1. Order Track to Desired Length

In standard applications track is usually ordered in lengths that at least equal the overall opening width. Johnson Hardware recommends that single track lengths be used whenever possible to avoid door hangers passing over track splices during operation. Track splicing is acceptable only if hanger wheels DO NOT pass over the splice. If multiple track lengths are to be used in a single opening, ensure that track and door panels are positioned so that no door hanger/guide passed over track splice.

Step 2. Order Base Set A

Base Hardware Set A contains all the pivots, brackets, hangers and mounting screws to hang the 1st pair of panels from a single jamb. Order base hardware set A (1715BS-A) for the first pair of panels off jamb as indicated. Order 1 base set A when all panels operate from a single direction. Order 2 base sets A's when panels will operate from two directions, converging panels that meet in the middle of the opening.

Step 3. Order Add-On Set B

Order one add-on hardware set B (1725AOSB) for every pair of panels after Base Set A as indicated.

Johnson's 1700RD Multi-folding or Room Dividing Door Hardware is designed to light weight door panels or shutters in residential or light commercial interior applications. The 1700RD is 'top hung' hardware, all door weight is suspended from the top track therefore does not require any bottom tracking. The 1700RD allows door panels to be removed or installed without dropping the track. The 1700RD features a jump proof box track track with positive pivot lock, 4-wheeled hanger guides, adjustable bottom pivot and a floor bracket with an adjustable bottom pivot socket. Track lengths are available up to 16'.

1700RD Ordering Instructions

1700RD Multi-Fold Hardware are configured according to application, in effect you build the 1700RD to suit your particular installation requirements. Follow the steps below to build your 1700RD hardware set.


Step 1. Order Track to Desired Length

In standard applications track is usually ordered in lengths that at least equal the overall opening width. Johnson Hardware recommends that single track lengths be used whenever possible to avoid door hangers passing over track splices during operation. Track splicing is acceptable only if hanger wheels DO NOT pass over the splice. If multiple track lengths are to be used in a single opening, ensure that track and door panels are positioned so that no door hanger/guide passed over track splice.

Step 2. Order Base Set A

Base Hardware Set A contains all the pivots, brackets, hangers and mounting screws to hang the 1st pair of panels from a single jamb. Order base hardware set A (1715BS-A) for the first pair of panels off jamb as indicated. Order 1 base set A when all panels operate from a single direction. Order 2 base sets A's when panels will operate from two directions, converging panels that meet in the middle of the opening.

Step 3. Order Add-On Set B

Order one add-on hardware set B (1725AOSB) for every pair of panels after Base Set A as indicated.

1700RD Series Instalation Instructions

1700RD Series Quick Reference Drawings

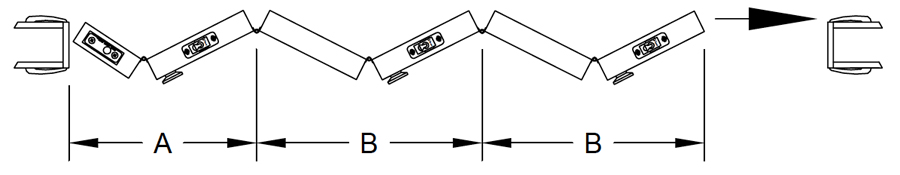

Center Mount Layout

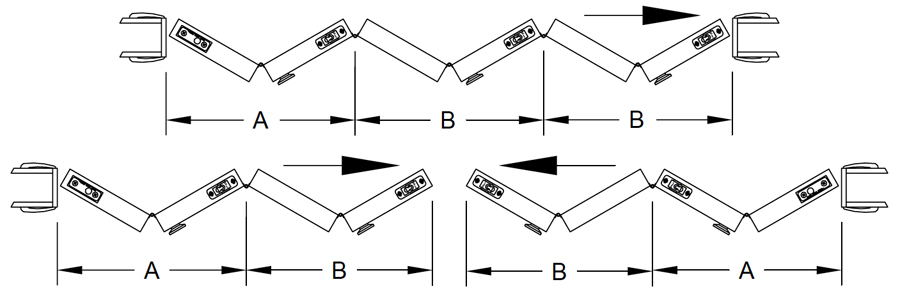

Edge Mount Layout

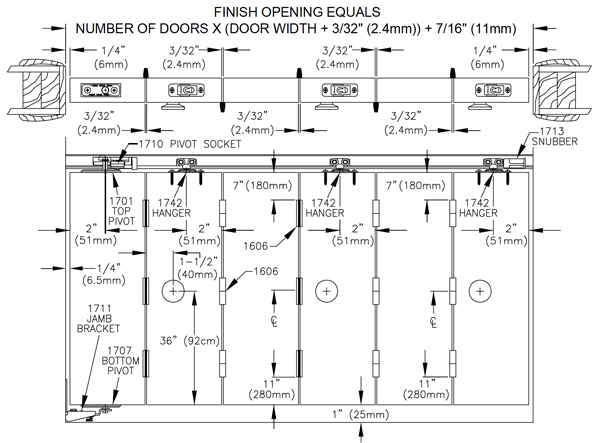

Component Location

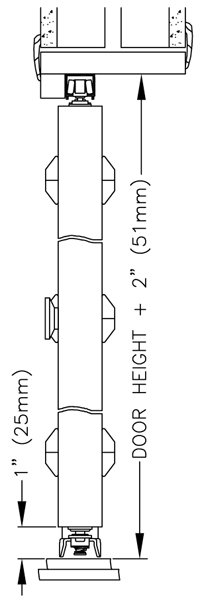

Panel Height

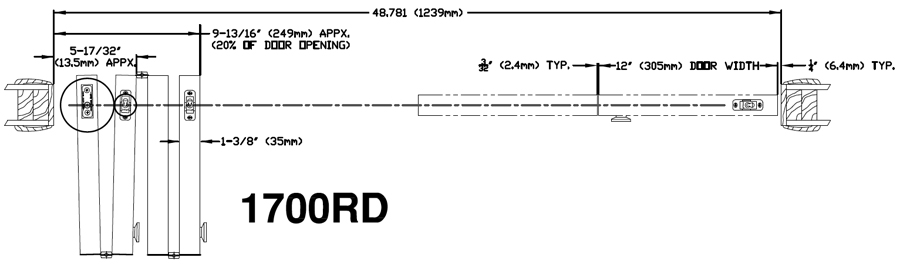

Opening Clearances

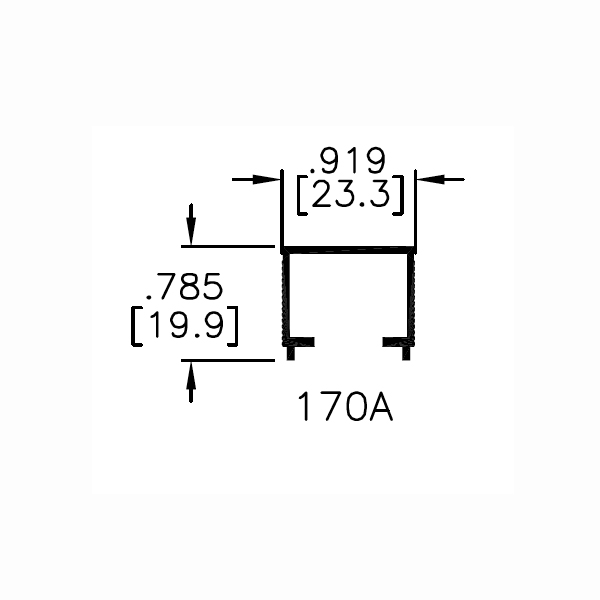

Track Dimensions

1700RD Ordering Instructions

1700RD Multi-Fold Hardware are configured according to application, in effect you build the 1700RD to suit your particular installation requirements. Follow the steps below to build your 1700RD hardware set.


Step 1. Order Track to Desired Length

In standard applications track is usually ordered in lengths that at least equal the overall opening width. Johnson Hardware recommends that single track lengths be used whenever possible to avoid door hangers passing over track splices during operation. Track splicing is acceptable only if hanger wheels DO NOT pass over the splice. If multiple track lengths are to be used in a single opening, ensure that track and door panels are positioned so that no door hanger/guide passed over track splice.

Step 2. Order Base Set A

Base Hardware Set A contains all the pivots, brackets, hangers and mounting screws to hang the 1st pair of panels from a single jamb. Order base hardware set A (1715BS-A) for the first pair of panels off jamb as indicated. Order 1 base set A when all panels operate from a single direction. Order 2 base sets A's when panels will operate from two directions, converging panels that meet in the middle of the opening.

Step 3. Order Add-On Set B

Order one add-on hardware set B (1725AOSB) for every pair of panels after Base Set A as indicated.

Products specifications
Max. Weight Per Panel 15 lbs. [7kg]
Application Interior Residential
Panel Thickness 1" [25mm] to 1-3/4" [44mm]
Series Track 170A
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

Step 1. Select Track Hardware

Part No. Description /Contents Notes Price | Qty. | Order
170A-048 View Contents

48" [1219mm] Length

$8.49
170A-060 View Contents

60" [1524mm] Length

$10.51
170A-072 View Contents

72" [1829mm] Length

$12.35
170A-096 View Contents

96" [2438mm] Length

$16.68
170A-106 View Contents

106" [2692mm] Length

$21.08
170A-120 View Contents

120" [3048mm] Length

$21.08
170A-144 View Contents

144" [3658mm] Length

$25.05
170A-192 View Contents

192" [4877mm] Length

$33.21

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Step 2. Select Base Set A Hardware

Part No. Description /Contents Notes Price | Qty. | Order
1715BS-A View Contents

Specify Hardware Sets Required

$27.88

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Step 3. Select Add-On Set B Hardware

Part No. Description /Contents Notes Price | Qty. | Order
1725AOSB View Contents

Specify Hardware Sets Required

$30.51

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Panel 15 lbs. [7kg]
Application Interior Residential
Panel Thickness 1" [25mm] to 1-3/4" [44mm]
Series Track 170A
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
