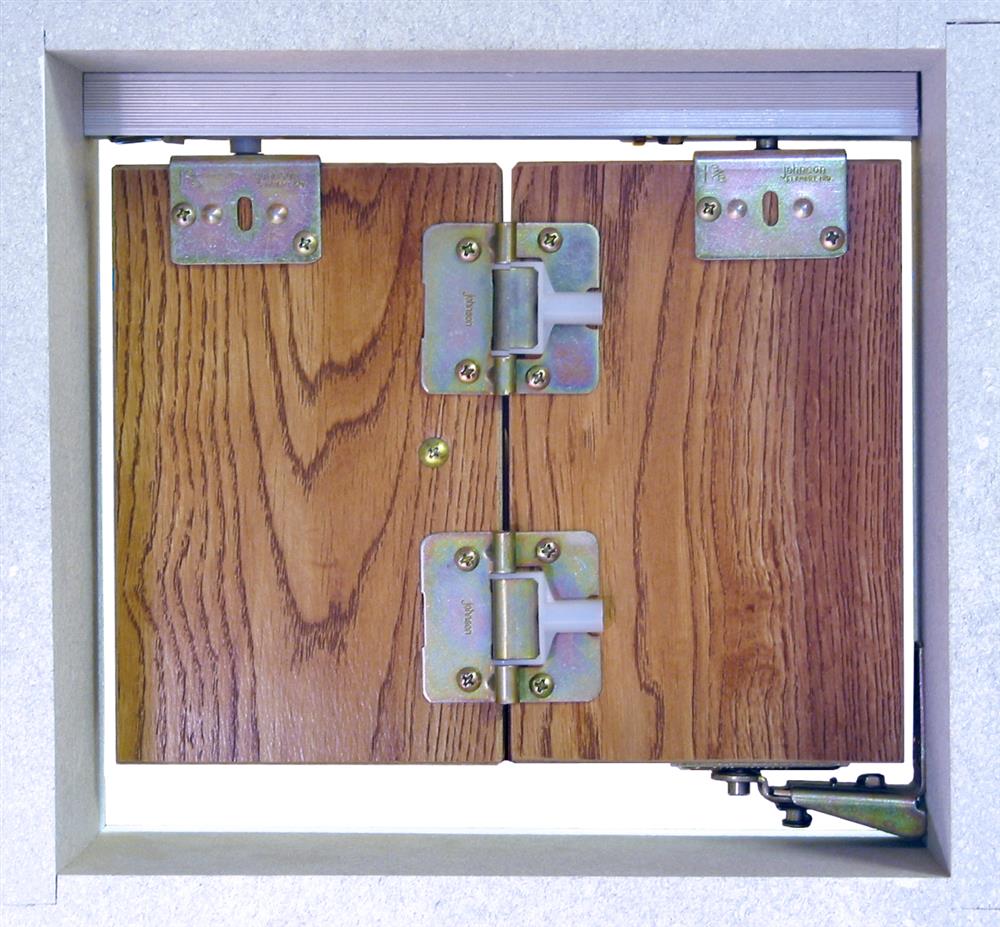

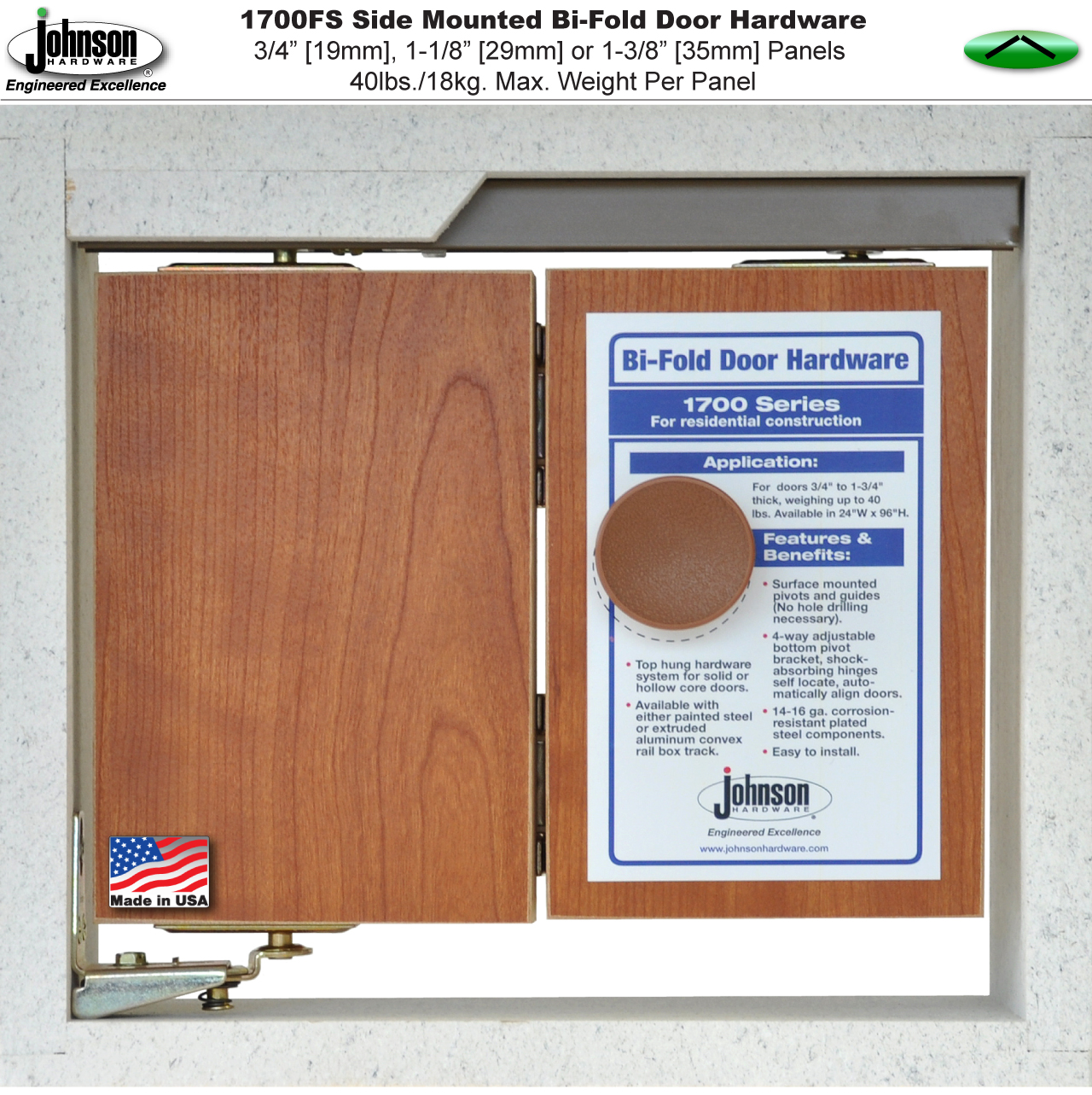

1700FS Side Mounted Bi-Fold Door Hardware

  • 40lbs [18kg] Max Panel Weight Each

  • 24" [610mm] Max Panel Width Each

  • 96" [2438mm] Max Panel Height

  • 3/4" [19mm], 1-1/8" [29mm], 1-3/8" [35mm] Panel Thickness
  • Side Mount Hanger Type

  • Residential Grade Top Hung Bi-Fold Door Hardware

1700FS Series Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Hardware sets available for 3 door thickness only 3/4" [19mm], 1-1/8" [29mm] or 1-3/8" [35mm].
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 1700FS configurations possible by ordering 1700FS components by the piece.

1700FS Series Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Hardware sets available for 3 door thickness only 3/4" [19mm], 1-1/8" [29mm] or 1-3/8" [35mm].
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 1700FS configurations possible by ordering 1700FS components by the piece.

1700FS Series Printed Instalation Instructions

1700FS Series Video

1703 Panel Hinge

1700 Installation

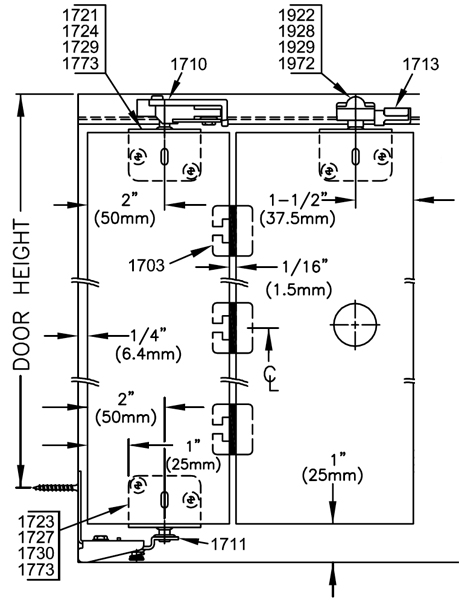

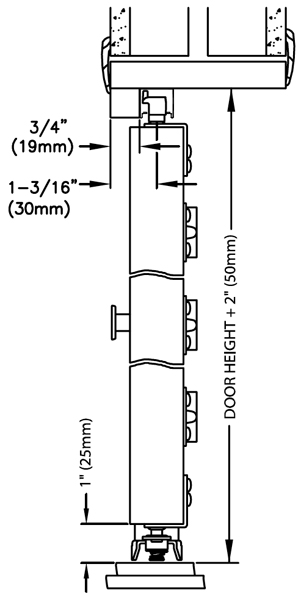

1700FS Series Quick Reference Drawings

1700FS Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
  • Hardware sets available for 3 door thicknesses only 3/4" [19mm], 1-3/8" [35mm] or 1-3/4"[44mm]
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 1700FS configurations possible by ordering 1700FS components by the piece.

1700FS Series Video

1703 Panel Hinge

1700 Installation

1700FS Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
  • Hardware sets available for 3 door thicknesses only 3/4" [19mm], 1-3/8" [35mm] or 1-3/4"[44mm]
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 1700FS configurations possible by ordering 1700FS components by the piece.
Products specifications
Max. Weight Per Panel 40 lbs. [18kg]
Application Interior Residential
Panel Thickness 3/4" [19mm], 1-3/8" [35mm] or 1-3/4" [44mm]
Series Track 170A
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

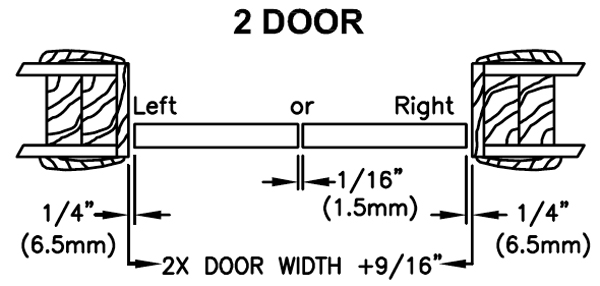

2-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Panel Thickness Price | Qty. | Order
1734243H View Contents

12" x 2 (1' - 0" x 2)
[305mm x 2]

24" (2' - 0")
[610mm]

3/4" [19mm]

$20.58
1718243H View Contents

12" x 2 (1' - 0" x 2)
[305mm x 2]

24" (2' - 0")
[610mm]

1-1/8" [29mm]

$20.58
1738243H View Contents

12" x 2 (1' - 0" x 2)
[305mm x 2]

24" (2' - 0")
[610mm]

1-3/8" [35mm]

$20.58
1734303H View Contents

15" x 2 (1' - 3" x 2)
[381mm x 2]

30" (2' - 6")
[762mm]

3/4" [19mm]

$21.34
1734303H View Contents

15" x 2 (1' - 3" x 2)
[381mm x 2]

30" (2' - 6")
[762mm]

1-1/8" [29mm]

$21.34
1738303H View Contents

15" x 2 (1' - 3" x 2)
[381mm x 2]

30" (2' - 6")
[762mm]

1-3/8" [35mm]

$21.34
1734363H View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

3/4" [19mm]

$22.09
1718363H View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

1-1/8" [29mm]

$22.09
1738363H View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

1-3/8" [35mm]

$22.09

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

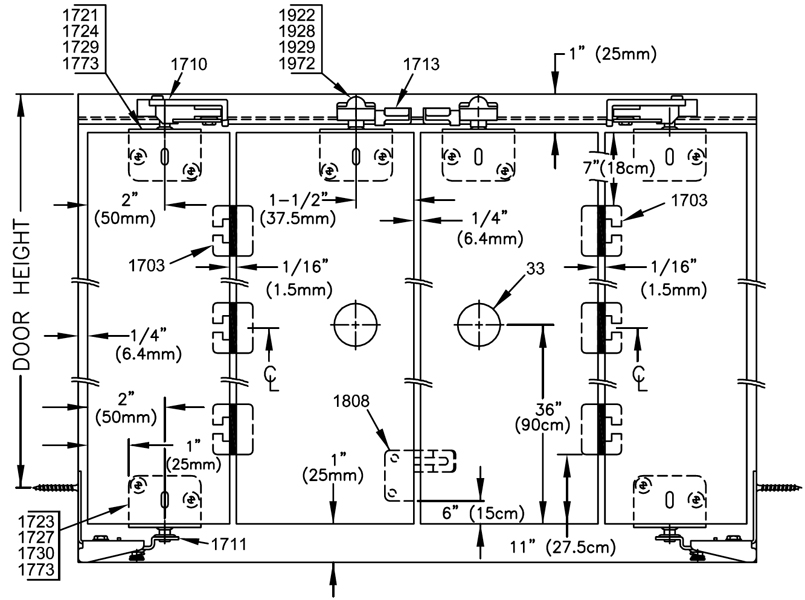

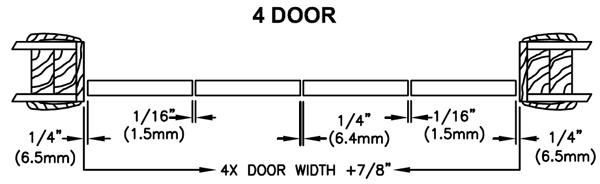

4-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Panel Thickness Price | Qty. | Order
1734486H View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

3/4" [19mm]

$40.24
1718486H View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

1-1/8" [29mm]

$40.24
1738486H View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

1-3/8" [35mm]

$40.24
1734606H View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

3/4" [19mm]

$41.79
1718606H View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

1-1/8" [29mm]

$41.79
1738606H View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

1-3/8" [35mm]

$41.79
1734726H View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

3/4" [19mm]

$43.35
1718726H View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

1-1/8" [29mm]

$43.35
1738726H View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

1-3/8" [35mm]

$43.35
1734966H View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

3/4" [19mm]

$47.80
1718966H View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

1-1/8" [29mm]

$47.80
1738966H View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

1-3/8" [35mm]

$47.80

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Panel 40 lbs. [18kg]
Application Interior Residential
Panel Thickness 3/4" [19mm], 1-3/8" [35mm] or 1-3/4" [44mm]
Series Track 170A
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
