1700 Bi-Fold Door Hardware

  • 40lbs [18kg] Max Panel Weight Each

  • 24" [610mm] Max Panel Width Each

  • 96" [2438mm] Max Panel Height

  • 3/4" [19mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount Hanger Type

  • Residential Grade Top Hung Bi-Fold Door Hardware

Smooth operating, non-binding top hung bi-fold hardware designed for use with solid core wood door panels. Available with either painted steel or extruded aluminum tracks. Surface mounted pivots and guides (no hole drilling). Four way adjustable bottom pivot bracket, shock absorbing hinges self locate and automatically align doors.

1700 Series Bi-Folding Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Track available in mill finished aluminum or brown or white rolled steel.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 1700 configurations possible by ordering 1700 components by the piece.

Smooth operating, non-binding top hung bi-fold hardware designed for use with solid core wood door panels. Available with either painted steel or extruded aluminum tracks. Surface mounted pivots and guides (no hole drilling). Four way adjustable bottom pivot bracket, shock absorbing hinges self locate and automatically align doors.

1700 Series Bi-Folding Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Track available in mill finished aluminum or brown or white rolled steel.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 1700 configurations possible by ordering 1700 components by the piece.

1700 Series Printed Instalation Instructions

1700 Series Video

1703 Panel Hinge

1700 Installation

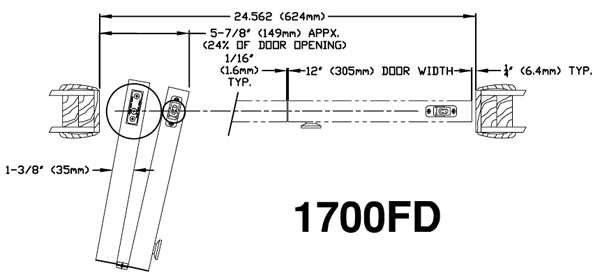

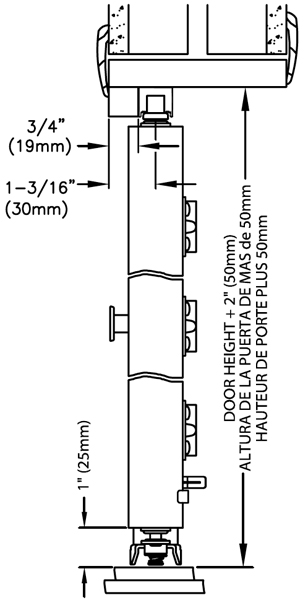

1700 Series Quick Reference Drawings

1700 Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
  • Track available in mill finished aluminum or brown or white rolled steel.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 1700 configurations possible by ordering 1700 components by the piece.

1700 Series Video

1703 Panel Hinge

1700 Installation

1700 Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
  • Track available in mill finished aluminum or brown or white rolled steel.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 1700 configurations possible by ordering 1700 components by the piece.
Products specifications
Max. Weight Per Panel 40 lbs. [18kg]
Application Interior Residential
Panel Thickness 3/4" [19mm] to 1-3/4" [44mm]
Series Track 1700

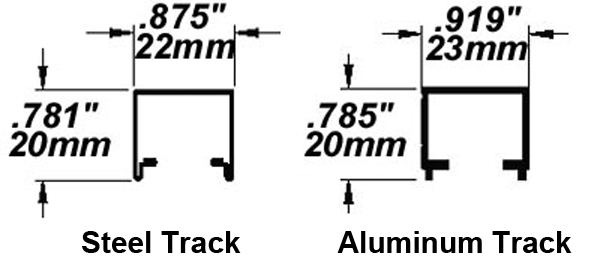

Track Profile Box Track
Hanger Type Top Mount
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

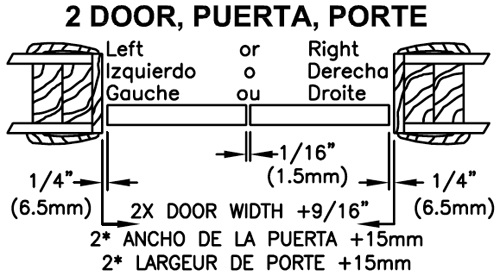

2-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Track Finish Price | Qty. | Order
170A243H View Contents

12" x 2 (1' - 0" x 2)
[305mm x 2]

24" (2' - 0")
[610mm]

Mill Aluminum

$20.45
1700243H View Contents

12" x 2 (1' - 0" x 2)
[305mm x 2]

24" (2' - 0")
[610mm]

Brown

$20.45
170W243H View Contents

12" x 2 (1' - 0" x 2)
[305mm x 2]

24" (2' - 0")
[610mm]

White

$20.45
170A303H View Contents

15" x 2 (1' - 3" x 2)
[381mm x 2]

30" (2' - 6")
[762mm]

Mill Aluminum

$21.94
1700303H View Contents

15" x 2 (1' - 3" x 2)
[381mm x 2]

30" (2' - 6")
[762mm]

Brown

$21.94
170W303H View Contents

15" x 2 (1' - 3" x 2)
[381mm x 2]

30" (2' - 6")
[762mm]

White

$21.94
170A363H View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

Mill Aluminum

$22.00
1700363H View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

Brown

$22.00
170W363H View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

White

$22.00

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

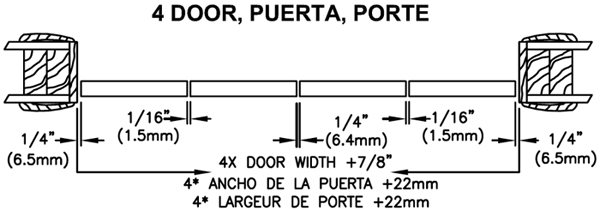

4-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Track Finish Price | Qty. | Order
170A486H View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

Mill Aluminum

$35.88
1700486H View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

Brown

$35.88
170W486H View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

White

$35.88
170A606H View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

Mill Aluminum

$37.52
1700606H View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

Brown

$35.88
170W606H View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

White

$35.88
170A726H View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

Mill Aluminum

$39.53
1700726H View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

Brown

$39.53
170W726H View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

White

$39.53
170A966H View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

Mill Aluminum

$43.68
1700966H View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

Brown

$43.68
170W966H View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

White

$43.68

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Panel 40 lbs. [18kg]
Application Interior Residential
Panel Thickness 3/4" [19mm] to 1-3/4" [44mm]
Series Track 1700
Track Profile Box Track
Hanger Type Top Mount
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
