1560SC Series Soft-Close Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door

  • Soft-Close/Open Door Operation

  • 60" [1524mm] x 108" [2743mm] Max. Door Size

  • 1" [25mm] - 3" [76mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

The 1560SC Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 200lbs. [91kg.] each and up to 3" [76mm] thick in standard 2 x 6 timber or steel framed stud walls. The 1560 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1560 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

1560SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1560SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

The 1560SC Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 200lbs. [91kg.] each and up to 3" [76mm] thick in standard 2 x 6 timber or steel framed stud walls. The 1560 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1560 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

1560SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1560SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

1560SC Series Instalation Instructions

1560SC Series Quick Reference Drawings

Single Door Rough-in

Converging Door Rough-in

Opening Hight Dimensions

Hidden Pocket Door Guide Kit

1555PPK3 Converging Door Kit

Soft-Close Tab Installation Position

Soft-Close Installation

1560SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1560SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 108" (9'-0") [2743mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Series Track 100
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track

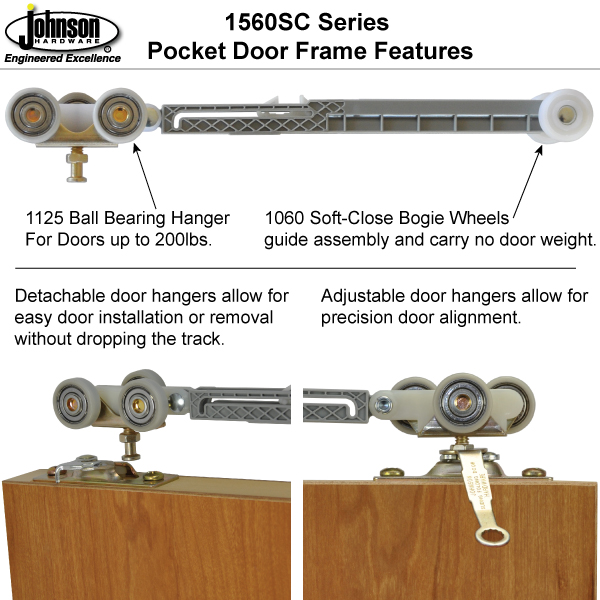

Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge

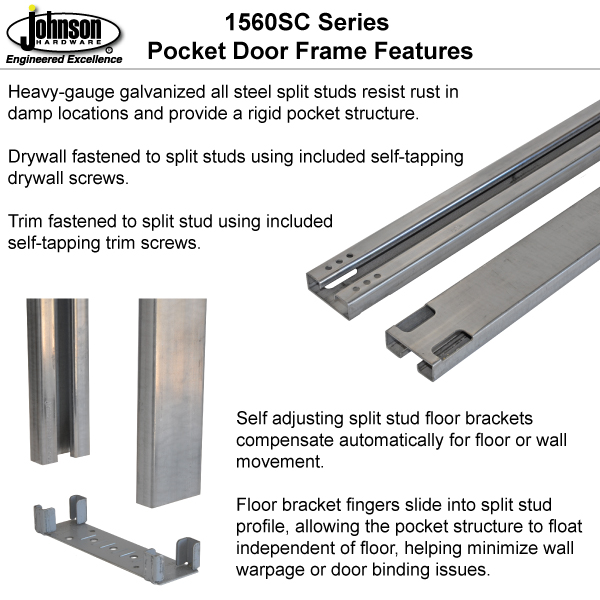

Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Frame Header Material Spruce, Pine or Fir (#3 or better)
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
1562668S View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$238.50
1563068S View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$244.14
1564068S View Contents

48" (4'- 0")
[1219mm]

80" (6'- 8")
[2032mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$321.52
1565068S View Contents

60" (5'- 0")
[1524mm]

80" (6'- 8")
[2032mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$378.55

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

84" (7'-0") [2134mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
1562670S View Contents

30" (2'- 6")
[762mm]

84" (7'-0")
[2134mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$256.82
1563070S View Contents

36" (3'- 0")
[914mm]

84" (7'-0")
[2134mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$262.65
1564070S View Contents

48" (4'- 0")
[1219mm]

84" (7'-0")
[2134mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$340.64
1565070S View Contents

60" (5'- 0")
[1524mm]

84" (7'-0")
[2134mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$403.31

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

96" (8'-0") [2438mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
1562680S View Contents

30" (2'- 6")
[762mm]

96" (8'-0")
[2438mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$271.63
1563080S View Contents

36" (3'- 0")
[914mm]

96" (8'-0")
[2438mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$277.70
1564080S View Contents

48" (4'- 0")
[1219mm]

96" (8'-0")
[2438mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$370.01
1565080S View Contents

60" (5'- 0")
[1524mm]

96" (8'-0")
[2438mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$436.44

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

108" (9'-0") [2743mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
1562690S View Contents

30" (2'- 6")
[762mm]

108" (9'-0")
[2743mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$291.59
1563090S View Contents

36" (3'- 0")
[914mm]

108" (9'-0")
[2743mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$297.86
1564090S View Contents

48" (4'- 0")
[1219mm]

108" (9'-0")
[2743mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$401.34
1565090S View Contents

60" (5'- 0")
[1524mm]

108" (9'-0")
[2743mm]

1" [25mm]
(to)
3" [76mm]

200lbs. [91kg]

$472.03

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 108" (9'-0") [2743mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Series Track 100
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Frame Header Material Spruce, Pine or Fir (#3 or better)
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
