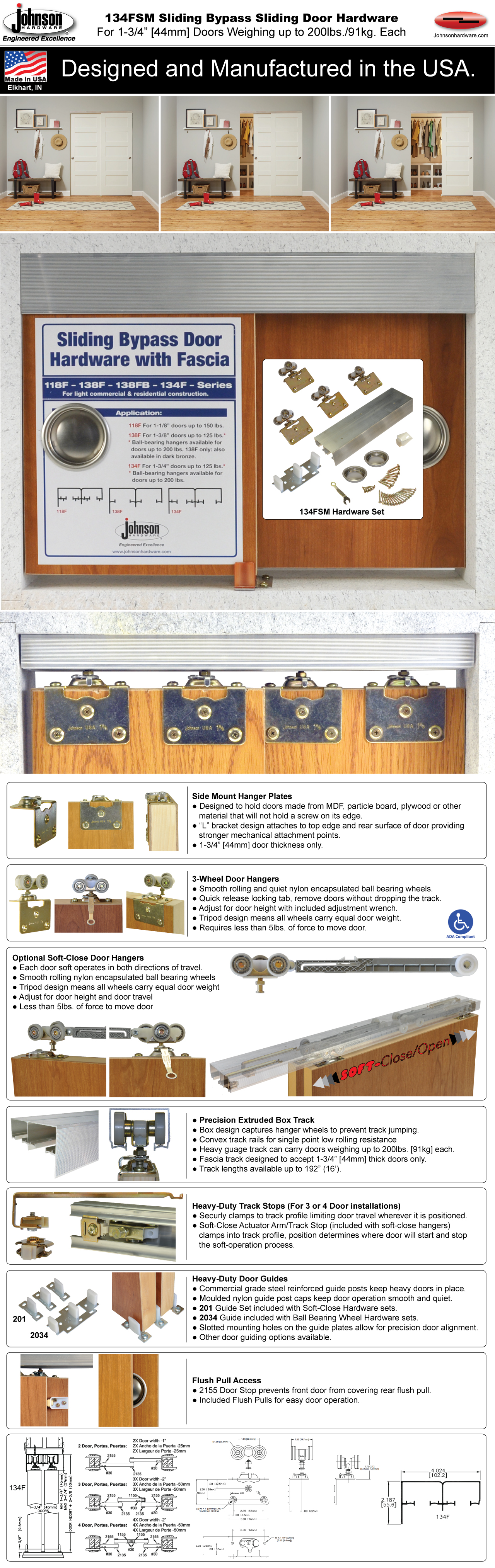

The 134FSM is commercial grade sliding by-pass door hardware for 1-3/4" [44mm] thick doors. The 134FSM features side mount hanger plates designed to hold doors made from MDF, partical board, plywood or other material that will not hold a screw on edge. Extruded aluminum fascia track features box design that captures wheels to eliminate track jump. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. 3-wheel "tripod" door hanger design ensure all wheels carry equal door weight. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.
134F Series Sliding Bypass Door Hardware
Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.
Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
134FSM Printed Installation Instructions
134F Quick Reference Drawings
Door Plate Location
Soft-Close Tab Position
134FSM Series Sliding Bypass Door Hardware
2 - Doors
24" X 2 (2' - 0" X 2) [610mm X 2]
48" (4' - 0") [1219mm]
30" X 2 (2' - 6" X 2) [762mm X 2]
60" (5' - 0") [1524mm]
36" X 2 (3' - 0" X 2) [914mm X 2]
72" (6' - 0") [1829mm]
4 - Doors
24" X 4 (2' - 0" X 4) [610mm X 4]
96” (8' - 0") [2438mm]
Oversized item must be shipped freight. Include this item, entire order ships for $250 continental nation-wide. Freight orders over $600 ship free!
Standard Operation Side Mount - Mill Track
Max Door Weight: 200lbs [91kg]
