111SM Side Mount Sliding Bypass Door Hardware

  • 150lbs [68kg] Max Weight Per Door

  • 3/4" [19mm], 1-1/8" [29mm], 1-3/8" [35mm] Door Thickness
  • Side Mount Hanger Type

  • Independent Box Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • 111SM Installation Instructions

The 111SM is commercial grade sliding by-pass door hardware designed to carry heavy doors in interior applications. The 111SM features side mount hanger plates designed to hold doors made from MDF, partical board, plywood or other material that will not hold a screw on edge. Extruded aluminum track features box design that captures wheels to eliminate track jump. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. 3-wheel "tripod" door hanger design ensure all wheels carry equal door weight. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.

111SM Exceptional Features

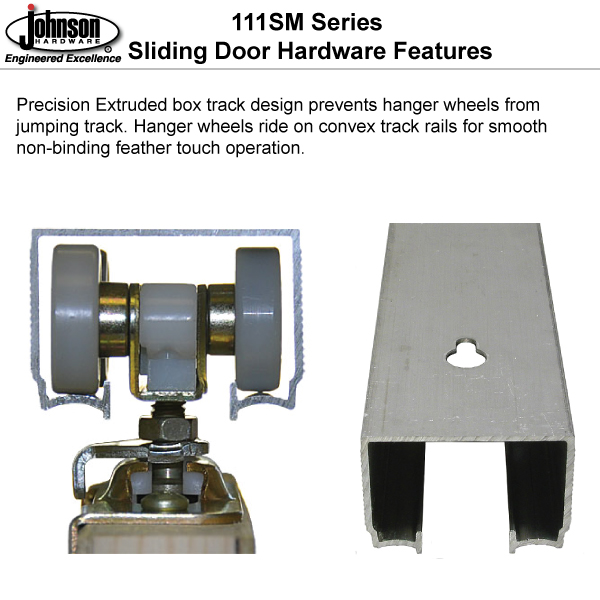

Jump Proof Box Track

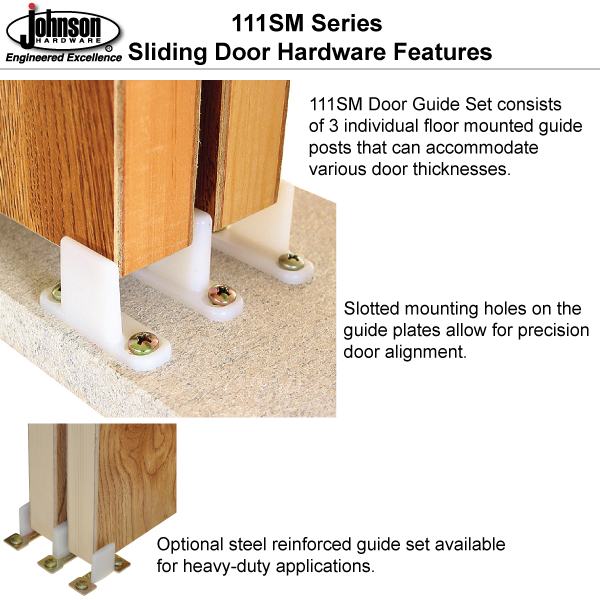

Adjustable Door Guides

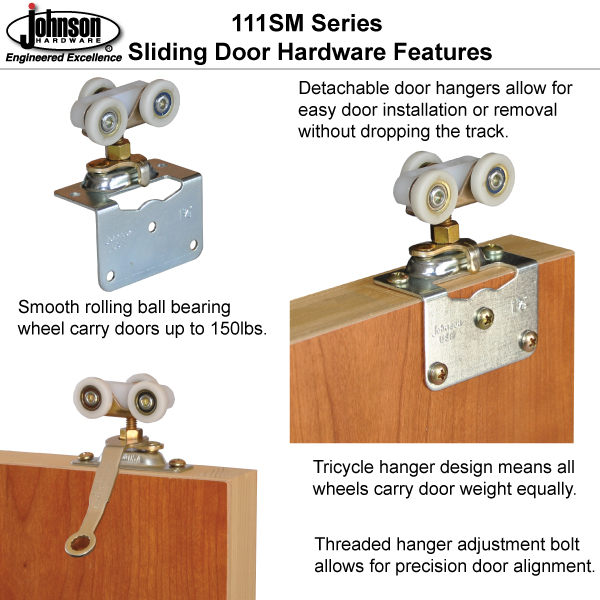

Ball Bearing Hangers

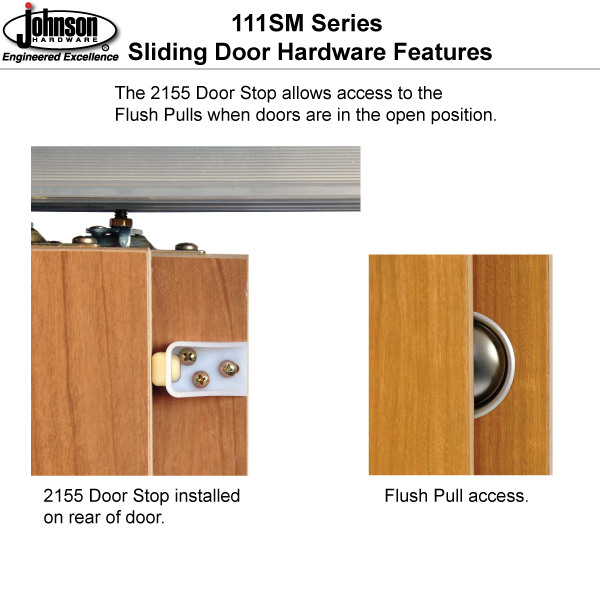

Flush Pull Access

Product Guarantee

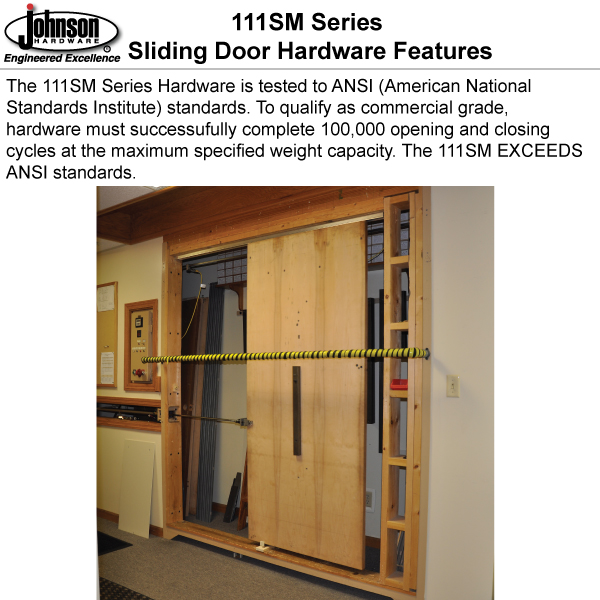

Quality Control

111SM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide, door thickness and track length to accommodate your opening width. Don't see a hardware set that matches your exact door/opening widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down. Track lengths available up to 16'

  • Sliding Bypass Door Hardware Sets for standard door sizes / standard opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • Hardware sets available for 3 door thicknesses only 3/4" [19mm], 1-1/8" [28mm] or 1-3/8" [35mm]
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 111SM configurations possible (wider openings for example) by ordering 111SM parts and track individually.

The 111SM is commercial grade sliding by-pass door hardware designed to carry heavy doors in interior applications. The 111SM features side mount hanger plates designed to hold doors made from MDF, partical board, plywood or other material that will not hold a screw on edge. Extruded aluminum track features box design that captures wheels to eliminate track jump. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. 3-wheel "tripod" door hanger design ensure all wheels carry equal door weight. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.

111SM Exceptional Features

Jump Proof Box Track

Adjustable Door Guides

Ball Bearing Hangers

Flush Pull Access

Product Guarantee

Quality Control

111SM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide, door thickness and track length to accommodate your opening width. Don't see a hardware set that matches your exact door/opening widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down. Track lengths available up to 16'

  • Sliding Bypass Door Hardware Sets for standard door sizes / standard opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • Hardware sets available for 3 door thicknesses only 3/4" [19mm], 1-1/8" [28mm] or 1-3/8" [35mm]
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 111SM configurations possible (wider openings for example) by ordering 111SM parts and track individually.

111SM Printed Installation Instructions

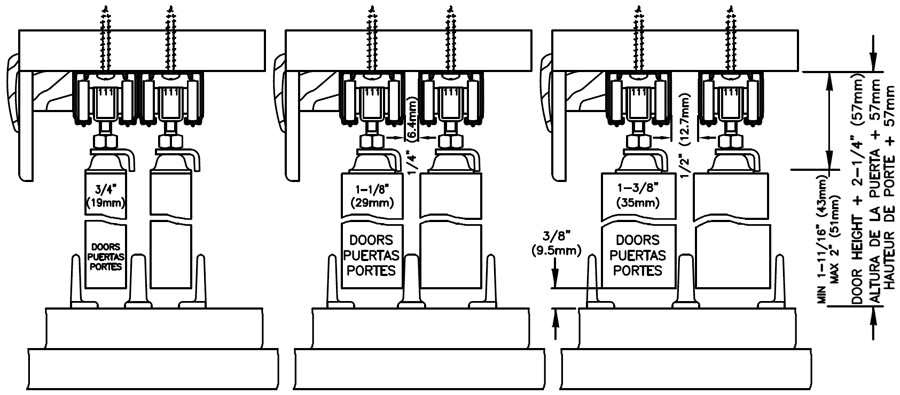

111SM Quick Reference Drawings

111SM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide, door thickness and track length to accommodate your opening width. Don't see a hardware set that matches your exact door/opening widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down. Track lengths available up to 16'

  • Sliding Bypass Door Hardware Sets for standard door sizes / standard opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • Hardware sets available for 3 door thicknesses only 3/4" [19mm], 1-1/8" [28mm] or 1-3/8" [35mm]
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 111SM configurations possible (wider openings for example) by ordering 111SM parts and track individually.
Products specifications
Max. Weight Per Door 150lbs. [68kg]
Application Interior Residential/Commercial
Door Thickness 3/4" [19mm], 1-1/8" [29mm], 1-3/8" [35mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 3/4"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Door Hardware Sets

Part No. Description /Contents Track Length Max. Door Width Door Thickness Price | Qty. | Order
11S48234 View Contents

48" x 2 (4' - 0" x 2)
[1219mm x 2]

24" X 2 (2' - 0" X 2)
[610mm X 2]

3/4" [19mm]

$95.38
11S48218 View Contents

48" x 2 (4' - 0" x 2)
[1219mm x 2]

24" X 2 (2' - 0" X 2)
[610mm X 2]

1-1/8" [29mm]

$95.38
11S48238 View Contents

48" x 2 (4' - 0" x 2)
[1219mm x 2]

24" X 2 (2' - 0" X 2)
[610mm X 2]

1-3/8" [35mm]

$95.38
11S60234 View Contents

60" x 2 (5' - 0" x 2)
[1524mm x 2]

30" X 2 (2' - 6" X 2)
[762mm X 2]

3/4" [19mm]

$101.62
11S60218 View Contents

60" x 2 (5' - 0" x 2)
[1524mm x 2]

30" X 2 (2' - 6" X 2)
[762mm X 2]

1-1/8" [29mm]

$101.62
11S60238 View Contents

60" x 2 (5' - 0" x 2)
[1524mm x 2]

30" X 2 (2' - 6" X 2)
[762mm X 2]

1-3/8" [35mm]

$101.62
11S72234 View Contents

72" x 2 (6' - 0" x 2)
[1829mm x 2]

36" X 2 (3' - 0" X 2)
[914mm X 2]

3/4" [19mm]

$107.12
11S72218 View Contents

72" x 2 (6' - 0" x 2)
[1829mm x 2]

36" X 2 (3' - 0" X 2)
[914mm X 2]

1-1/8" [29mm]

$107.12
11S72238 View Contents

72" x 2 (6' - 0" x 2)
[1829mm x 2]

36" X 2 (3' - 0" X 2)
[914mm X 2]

1-3/8" [35mm]

$107.12
11S96234 View Contents

96” x 2 (8' - 0" x 2)
[2438mm x 2]

48" X 2 (4' - 0" X 2)
[1219mm X 2]

3/4" [19mm]

$119.60
11S96218 View Contents

96” x 2 (8' - 0" x 2)
[2438mm x 2]

48" X 2 (4' - 0" X 2)
[1219mm X 2]

1-1/8" [29mm]

$119.60
11S96238 View Contents

96” x 2 (8' - 0" x 2)
[2438mm x 2]

48" X 2 (4' - 0" X 2)
[1219mm X 2]

1-3/8" [35mm]

$119.60

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Door Hardware Sets

Part No. Description /Contents Track Length Max. Door Width Door Thickness Price | Qty. | Order
11S96434 View Contents

96” x 2 (8' - 0" x 2)
[2438mm x 2]

24" X 4 (2' - 0" X 4)
[610mm X 4]

3/4" [19mm]

$190.79
11S96418 View Contents

96” x 2 (8' - 0" x 2)
[2438mm x 2]

24" X 4 (2' - 0" X 4)
[610mm X 4]

1-1/8" [29mm]

$190.79
11S96438 View Contents

96” x 2 (8' - 0" x 2)
[2438mm x 2]

24" X 4 (2' - 0" X 4)
[610mm X 4]

1-3/8" [35mm]

$190.79

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 150lbs. [68kg]
Application Interior Residential/Commercial
Door Thickness 3/4" [19mm], 1-1/8" [29mm], 1-3/8" [35mm]
Series Track 111
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 3/4"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
